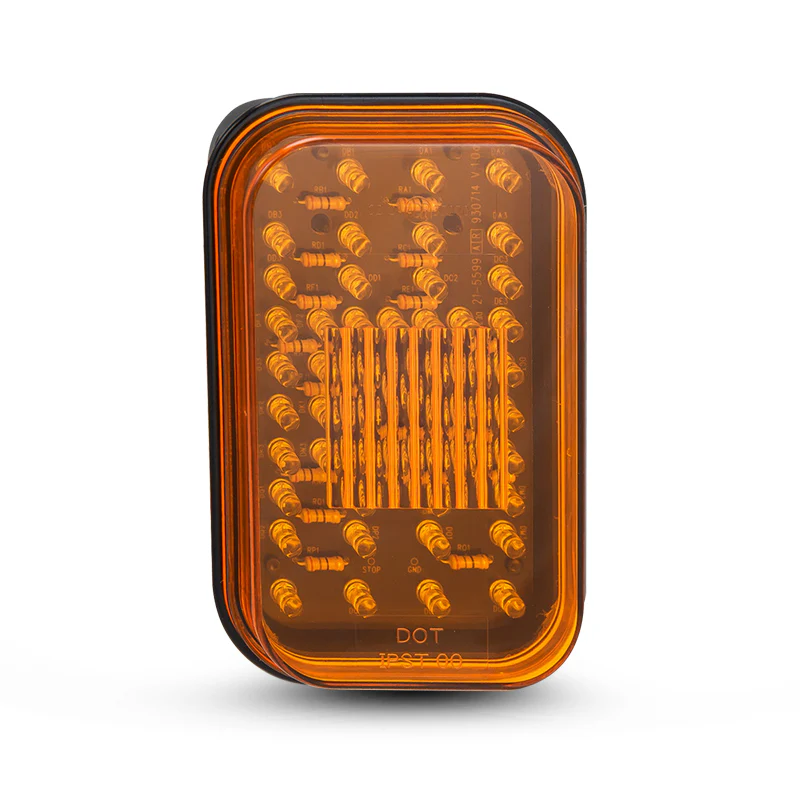

LED Autolamps 5590AM Indicator Light LED 12 Or 24V

Amber LED Indicator Lamp Retrofit 134mm x 86mm, ADR Approved, IP67, 12/24V.

---

Product Overview

The LED Autolamps 5590AM is an amber LED indicator lamp from the 5590 Series a high-brightness, economical design sharing the 134mm x 86mm x 12mm form factor and 139mm x 91mm cutout of the 5940 Series. The 5590AM is the indicator-only module suited to retrofit applications where an existing globe-type amber indicator lamp needs to be replaced with LED technology, or for new installations using the 139mm x 91mm cutout format.

For new installations, fit a grommet or flange into the cutout (cut out 139mm x 91mm), then retrofit the lamp into place. ADR approved, IP67 rated, and operating on 12V and 24V. Backed by LED Autolamps' 5-year warranty and supplied as a single unit.

---

Key Specifications

• Function: Amber indicator
• Dimensions: 134mm x 86mm x 12mm
• Cutout required: 139mm x 91mm
• Mount type: Retrofit grommet or flange into cutout
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ADR approved
• Warranty: 5 years
• Weight: 0.12kg
• Brand: LED Autolamps
• SKU: 5590AM

---

Features & Benefits

• Retrofit design: Drops into the existing 139mm x 91mm cutout to replace globe-type amber indicator lamps with no panel modifications required
• High-brightness LED: Popular high-brightness LED design for bright, consistent amber indicator output
• Indicator-only function: Dedicated amber indicator without stop or tail functions suited to applications where indicator and other functions are provided by separate lamp modules
• ADR approved: Legal for amber indicator use on Australian road vehicles and trailers
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 12V and 24V compatible: Suits passenger trailers, caravans, and 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

---

Technical Specs

---

Compatible With

Suits all 12V and 24V trailers, caravans, and commercial vehicles with the 139mm x 91mm rectangular cutout format:

• Retrofit replacement for globe-type amber indicator modules
• New installations using the 5940/5590 Series cutout format

---

Frequently Asked Questions

What cutout size does this lamp require?

The 5590AM fits into a 139mm x 91mm rectangular cutout consistent with the 5940 Series and compatible with the LED Autolamps 59401 rubber grommet and 59401C chrome flange.

Does this lamp include stop and tail functions?

No the 5590AM is an amber indicator lamp only. Stop and tail functions are provided by separate lamp modules in the 5590/5940 Series range.

Is this a retrofit replacement?

Yes the 5590AM is designed to retrofit into existing 139mm x 91mm cutouts as a direct replacement for globe-type amber indicator lamps.

Is this lamp compatible with the 59401 grommet?

Yes the 59401 rubber grommet (and 59401C chrome flange) suit the same 139mm x 91mm cutout as the 5590AM.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
