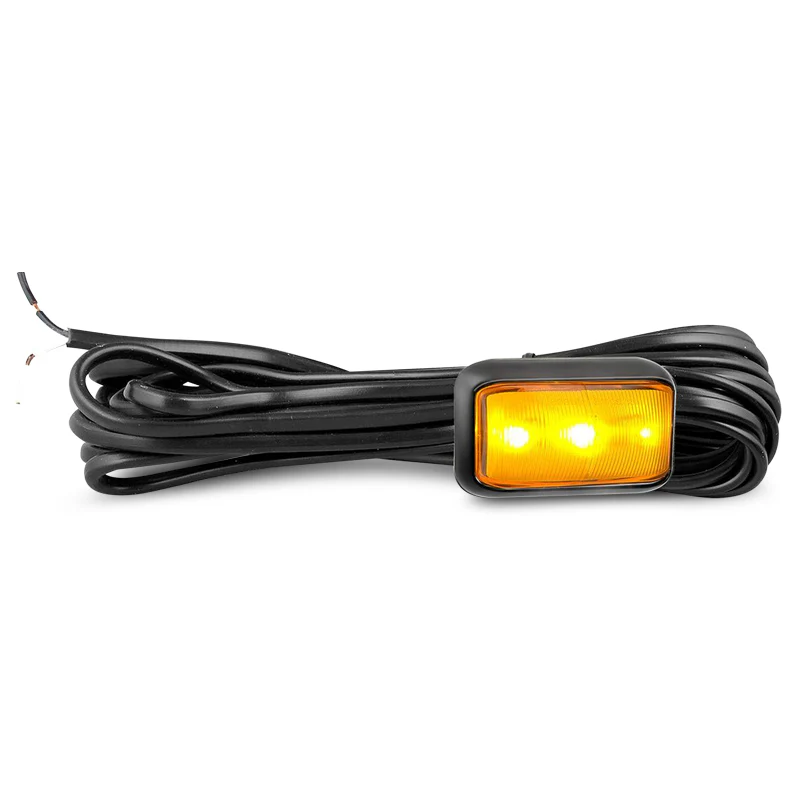

LED Autolamps 58AM3 10/30V LED Side Direction Indicator Light 3m Tinned Cable

Amber LED Side Direction Indicator with 3m Tinned Cable ADR CRN 38277, 9–33V, IP67, Single Unit.

---

Product Overview

The LED Autolamps 58AM3 is a single-unit amber side direction indicator from the budget 58 Series the 3m tinned cable variant. Where the standard 58AM blister comes with a 40cm cable and the 58AMB bulk box provides 10 units, the 58AM3 delivers the 3m cable configuration as a single retail unit for applications requiring longer cable runs to the trailer's wiring harness.

The 58AM3 features a hardened acrylic lens and ABS base, drawing 0.10A at 13.8V, with a broad 9–33V voltage range and tinned copper wiring for enhanced corrosion resistance. ADR approved (ADR Category 6/00/5, CRN 38277), IP67 rated, and backed by LED Autolamps' 5-year warranty. Supplied as a single unit.

---

Key Specifications

• Function: Amber side direction indicator
• LED colour: Amber
• Lens: Hardened acrylic clip-in replaceable
• Base: ABS
• Dimensions: 58mm x 35mm x 21mm
• Cable: 3m tinned copper
• Mount type: Surface mount bracket clip-in lens
• IP rating: IP67
• Input voltage: 9–33V DC (multivolt)
• Current draw: 0.10A @ 13.8V / 0.04A @ 28V
• ADR compliance: ADR Cat 6/00/5 CRN 38277
• Warranty: 5 years
• Pack quantity: Single unit
• Brand: LED Autolamps
• SKU: 58AM3

---

Features & Benefits

• 3m tinned copper cable: Extended cable length with tinned copper wiring for superior corrosion resistance suited to longer cable runs and coastal or marine environments
• Single retail unit: Individual unit for applications requiring one or two indicators with 3m cables without purchasing the 58AMB bulk box of 10
• Amber LED output: Clear lens with internal amber LEDs for side direction indicator compliance
• Clip-in replaceable lens: Easy lens swap without removing the bracket
• Budget 58 Series: Cost-effective ADR-compliant amber indicator in the proven 58 Series form factor
• ADR Category 6/00/5 CRN 38277: Legal for amber side direction indicator use on Australian road vehicles
• 9–33V broad voltage range: Covers virtually all 12V and 24V systems with significant headroom
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

---

Technical Specs

---

Compatible With

Suits all 9–33V trailers, caravans, and commercial vehicles requiring amber ADR-compliant side direction indicators with longer cable runs:

• Long trailers or applications requiring cable routing over distance
• Coastal and marine applications benefiting from tinned copper wiring
• Applications where single-unit purchase with 3m cable is required

---

Frequently Asked Questions

What is the difference between the 58AM3 and the standard 58AM?

The 58AM3 has a 3m tinned copper cable while the 58AM has a 40cm cable. Both are otherwise identical amber side direction indicators in the 58 Series.

What is the difference between the 58AM3 and the 58AMB?

Both feature amber side direction indicator function. The 58AM3 is a single unit with a 3m cable while the 58AMB is a bulk box of 10 with a 40cm cable.

Is this lamp ADR approved?

Yes the 58AM3 is ADR approved under ADR Category 6/00/5, CRN 38277 for amber side direction indicator use on Australian road vehicles and trailers.

Why use tinned copper wiring?

Tinned copper has a protective tin coating that significantly improves corrosion resistance compared to bare copper particularly important in trailer wiring exposed to moisture, road spray, and coastal conditions.
