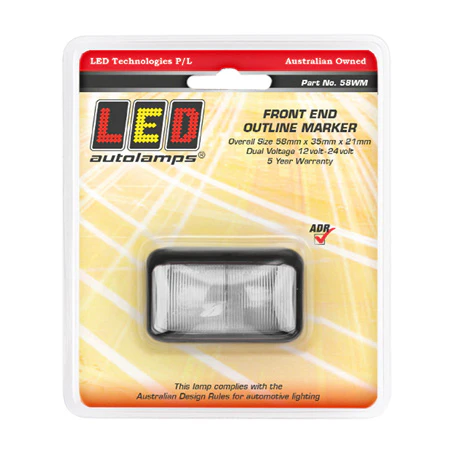

LED Autolamps 58WM 10/30V Front Outline Position Marker 2White LED Blister Pack

ADR Approved 12/24V Front Outline Position Marker 2 White LEDs, Clip-In Lens, IP67

Product Overview

The LED Autolamps 58WM is a 12/24V front outline position marker lamp with 2 white LEDs and a clear clip-in replaceable lens, measuring 58mm x 35mm x 21mm in a black housing with a 28mm centre-to-centre mount. Completing the 58 series alongside the 58AM and 58ARM, it is the front position marker counterpart for trailer and truck body end-of-vehicle marking.

Approved under CRN36842, pre-wired, IP67 rated, and backed by a 5-year warranty.

Features & Benefits

• 2 white LEDs — clean, bright front position marker output through a clear clip-in lens
• Clear clip-in replaceable lens — lens swaps independently without removing the full housing from the panel
• Compact 58mm x 35mm form factor — matches the 58AM and 58ARM for a consistent marker lamp appearance across the vehicle
• ADR approved — certified under CRN36842 for legal on-road use as a front outline position marker
• Very low current draw — 0.05A at 13.8V
• IP67 rated — fully sealed against dust and water immersion
• Pre-wired — ready to connect on installation
• 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
• 5-year warranty — backed by LED Autolamps' full warranty programme

Technical Specs

Compatible With / Goes Well With

• Trailers, trucks, and commercial vehicles requiring front outline position marker lamps
• 12V light vehicles and 24V heavy transport applications
• LED Autolamps 58AM side direction indicator (same 58mm x 35mm form factor)
• LED Autolamps 58ARM red/amber side marker (same form factor)
• LED Autolamps wiring harnesses and trailer lighting accessories

Frequently Asked Questions

Is the 58WM approved for road use in Australia?

Yes. The 58WM is ADR approved under CRN36842, meeting Australian Design Rules requirements for legal on-road use as a front outline position marker lamp.

How does the 58WM complete the 58 series?

The 58WM is the front position marker in the 58 series, joining the 58AM (side indicator) and 58ARM (red/amber side marker) — all sharing the same 58mm x 35mm x 21mm black housing, clip-in lens, and 28mm mount spacing for a consistent appearance across all marker positions.

What does the clear lens mean for output colour?

The clear lens allows the white LED output to show without colour filtering — providing a clean, bright appearance both when active and when inactive.

What is the IP rating on the 58WM?

The 58WM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion.

What warranty does the 58WM carry?

The 58WM is backed by a 5-year warranty from LED Autolamps.
