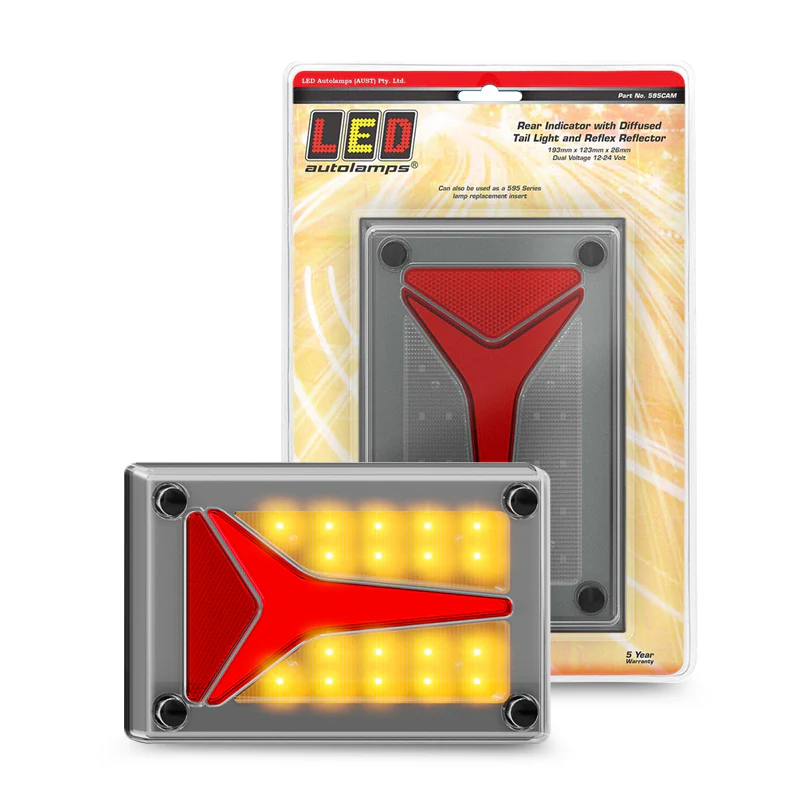

LED Autolamps 595CAM Single Indicator Lamp/Diffused Tail Function

595 Series Single Indicator with Diffused Tail Function Chrome, Clear Lens, ECE Approved, 12/24V.

---

Product Overview

The LED Autolamps 595CAM is a single indicator and diffused tail lamp from the 595 Series providing indicator and diffused tail functions only, without stop or reverse. Suited to applications where indicator and tail output are required in the large tray and truck 595 Series format, but stop and reverse are provided through separate lamp assemblies. The chrome housing and clear lens variant the 595BAM is the black coloured lens equivalent.

Consistent with the broader 595 Series, the 595CAM features a diffused tail function for a soft, even tail light glow across the lamp face and mounts horizontally via stainless steel bolts through a 12mm hole. ECE approved, IP67 rated, 12/24V multivolt, and backed by LED Autolamps' 5-year warranty. Supplied as a single unit in blister packaging.

---

Key Specifications

• Functions: Indicator, tail (diffused)
• Housing: Chrome
• Lens: Clear
• Tail function: Diffused
• Mount type: Horizontal surface mount stainless steel bolts, 12mm hole
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ECE approved
• Warranty: 5 years
• Packaging: Blister single unit
• Brand: LED Autolamps
• SKU: 595CAM

---

Features & Benefits

• Indicator and diffused tail: Two-function lamp providing indicator and diffused tail output in the 595 Series large tray format
• Diffused tail function: Even, soft glow across the full lamp face for a premium appearance
• Chrome housing, clear lens: Chrome finish with clear lens and internal coloured LEDs; black coloured lens version is the 595BAM
• ECE approved: Indicator and tail functions certified for legal road use
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• 12V and 24V compatible: Multivolt operation suits passenger trailers, caravans, and 24V commercial trucks
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

---

Technical Specs

---

Compatible With

Suits applications requiring indicator and tail only in the 595 Series form factor:

• Large ute tray bodies where stop and reverse are provided separately
• Truck and commercial vehicle configurations requiring split lamp assemblies
• Caravans and large camper trailers

---

Frequently Asked Questions

What functions does this lamp provide?

The 595CAM provides two functions indicator and diffused tail. It does not include stop or reverse functions. For the full four-function version, refer to the 595CARWM.

What is the difference between the 595CAM and the 595CARWM?

The 595CARWM provides stop, tail, indicator, and reverse. The 595CAM provides indicator and tail only. Both share the chrome housing and clear lens aesthetic.

What is diffused tail function?

Diffused tail delivers an even, soft LED glow across the full lamp face rather than discrete visible LED points producing a premium, modern tail light appearance.

What is the difference between the 595CAM and the 595BAM?

The 595CAM has a chrome housing and clear lens while the 595BAM has a black housing and coloured lens. Both provide the same indicator and diffused tail functions.
