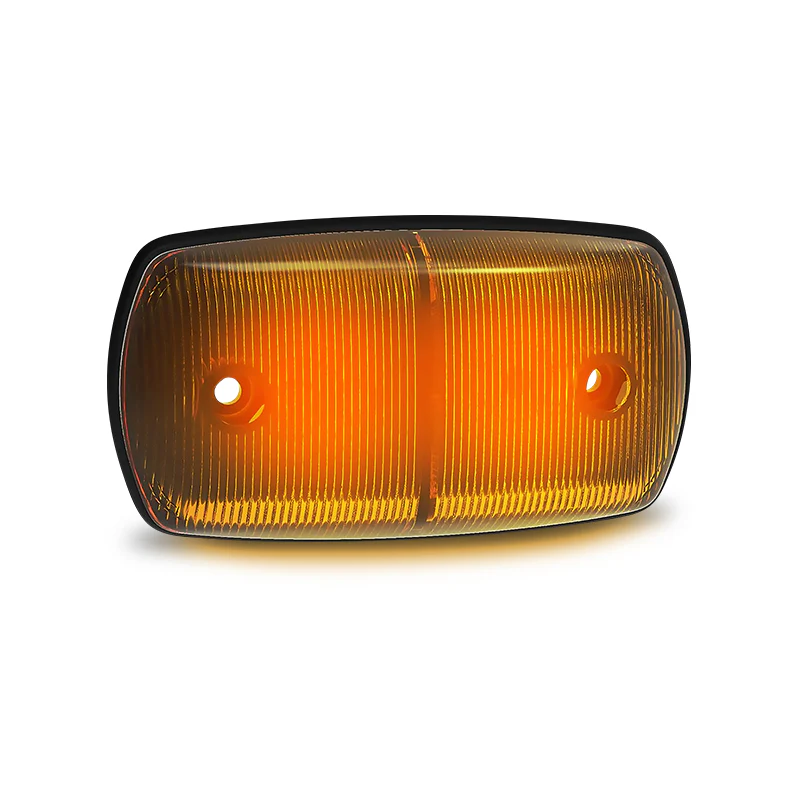

LED Autolamps 69AM Side Marker Amber 12/24 Volt - 120 x 69 x 20mm - Blister
Retrofit Amber LED Side Marker Concealed Mounting Base, No Visible Screws, ADR/ECE Approved.
Product Overview
The LED Autolamps 69AM is an amber LED side marker lamp from the 69 Series designed as a retrofit replacement for traditional globe-type side marker lamps on trucks, trailers, caravans, and commercial vehicles. Sharing the same concealed mounting base, clean finished appearance, and proven 69 Series form factor as the white 69WM, the 69AM delivers ADR and ECE compliant amber side marker output in a 120mm x 64mm x 22mm surface-mount body with no visible screws.
The concealed mounting base uses removable screw caps bolts are hidden beneath the caps for a professional, clean appearance once installed. With a clear lens, internal amber LEDs, a current draw of 0.05A at 13.8V, IP67 weatherproofing, and multivolt 12–24V compatibility, the 69AM is a practical, low-profile amber side marker upgrade for a wide range of trailer and commercial vehicle applications. Backed by LED Autolamps' 5-year warranty and supplied as a single unit in blister packaging.
Key Specifications
- Function: Amber side marker retrofit globe replacement
- LED colour: Amber
- Lens: Clear
- Dimensions: 120mm x 64mm x 22mm
- Mount type: Concealed mounting base no visible screws
- Current draw: 0.05A @ 13.8V
- IP rating: IP67
- Input voltage: 12–24V DC (multivolt)
- Compliance: ADR and ECE approved
- Warranty: 5 years
- Packaging: Blister pack single unit
- Brand: LED Autolamps
- SKU: 69AM
Features & Benefits
- Retrofit globe replacement design:Â Replaces traditional globe-type amber side markers with modern LED technology, using the same mounting footprint
- Concealed mounting base:Â Screw caps conceal all fasteners after installation for a clean, professional finished appearance with no visible screws
- Clear lens with internal amber LEDs:Â Modern design maintains colour accuracy and brightness without UV-related lens discolouration over time
- Ultra-low 0.05A current draw:Â Minimal electrical load, suitable for multi-lamp installations along trailer side rails
- ADR and ECE approved:Â Fully compliant with Australian Design Rules and ECE standards for amber side marker use on Australian road vehicles and trailers
- IP67 waterproof:Â Completely sealed against dust ingress and temporary water immersion
- 12V and 24V compatible:Â Multivolt operation suits passenger trailers, caravans, and 24V commercial trucks
- 5-year warranty:Â Backed by LED Autolamps' industry-standard 5-year warranty
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 69AM |
| Brand | LED Autolamps |
| Series | 69 Series |
| Function | Amber Side Marker |
| LED Colour | Amber |
| Lens | Clear |
| Dimensions | 120mm x 64mm x 22mm |
| Mount Type | Concealed mounting base no visible screws |
| Current Draw | 0.05A @ 13.8V |
| IP Rating | IP67 |
| Input Voltage | 12–24V DC (multivolt) |
| Compliance | ADR and ECE approved |
| Warranty | 5 Years |
| Packaging | Blister Pack single unit |
Compatible With
Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring amber ADR-compliant side markers including:
- Box trailers, car trailers, and boat trailers
- Caravans and camper trailers
- Light and heavy commercial trucks
- Agricultural and construction trailers
Frequently Asked Questions
Is this lamp a retrofit replacement for globe-type side markers?
Yes the 69 Series is specifically designed to retrofit into existing globe-type marker lamp positions, providing a direct LED upgrade for vehicles and trailers with traditional incandescent side markers.
Is this lamp ADR approved for Australian road use?
Yes the 69AM is ADR and ECE approved for amber side marker use on Australian road vehicles and trailers.
What are the correct dimensions of this lamp?
The confirmed dimensions are 120mm x 64mm x 22mm per the official LED Autolamps 69 Series specification. The "120 x 69 x 20mm" figure appearing in some retailer titles and descriptions is a known transposition error consistent with the 69WM listing.
How does the concealed mounting system work?
The mounting screws are covered by removable screw caps. After bolting the lamp to the surface, the caps are pushed back into position to conceal the fasteners, resulting in a clean, seamless appearance.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions about this product.
