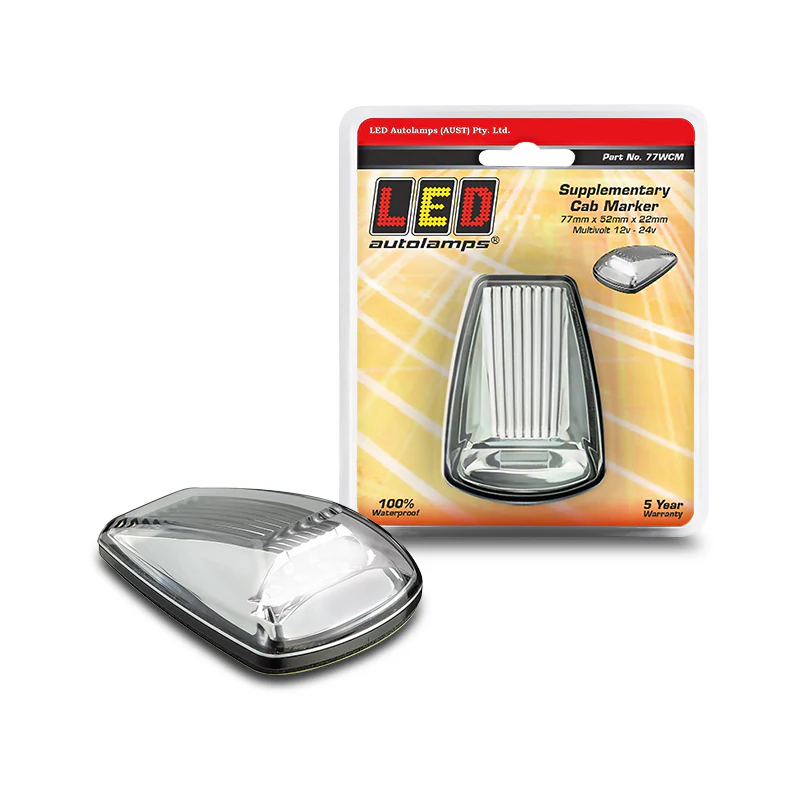

LED Autolamps 77WCM Sup Cab Marker White LED CLR Lens

White Supplementary Cab Roof Marker Chrome Truck Series, Clear Lens, 3M Tape & Plug, ADR Approved, 9–32V.

---

Product Overview

The LED Autolamps 77WCM is a white supplementary cab roof marker from the 77 Series Chrome Truck Series a low-profile compact cab marker lamp designed to be fitted to the roof of trucks and commercial vehicles as supplementary front identification markers. The 77WCM is a Chrome Truck Series supplementary cab marker with waterproof seal between roof and lamp, 3M tape design, multi-volt 12V & 24V, ADR approved, single pack.

Installation: drill a 10mm hole into a flat surface and mount horizontally to the ground with 3M Tape and serrated plug. LEDs must be facing the front of the vehicle. The 9–32V broad voltage range covers standard 12V and 24V truck electrical systems with significant headroom. IP67 rated, backed by LED Autolamps' 5-year warranty, and supplied as a single unit.

---

Key Specifications

• Function: Supplementary cab roof marker (white LED)
• Lens: Clear with white LEDs
• Housing: Chrome Truck Series
• Dimensions: 77mm x 52mm x 22mm
• Fitting system: 3M Tape + serrated plug (10mm hole)
• Waterproofing: Waterproof between roof and lamp
• IP rating: IP67
• Input voltage: 9–32V DC (multivolt)
• Compliance: ADR approved
• Warranty: 5 years
• Pack quantity: Single unit
• Brand: LED Autolamps
• SKU: 77WCM

---

Features & Benefits

• Supplementary cab roof marker: Designed specifically for mounting on the truck cab roof as a supplementary front identification marker
• Chrome Truck Series: Premium chrome housing suited to truck and commercial vehicle cab roof styling
• Waterproof seal: Waterproof between roof and lamp seals against water ingress at the cab roof mounting point
• Clear lens with white LEDs: Modern clean lens appearance for white supplementary marker output
• 3M Tape and serrated plug: Fast, no-drill-free fitting drill 10mm hole, plug in, tape down no brackets or external screws visible
• LEDs face front: Installation orientation confirmed LEDs must face the front of the vehicle
• 9–32V broad voltage range: Wide multivolt range covering standard 12V and 24V truck systems
• IP67 waterproof: Completely sealed against dust and temporary water immersion
• ADR approved: Legal for supplementary cab marker use on Australian road vehicles
• 5-year warranty: Backed by LED Autolamps' 5-year warranty

---

Technical Specs

---

Compatible With

Suits all 12V and 24V trucks and commercial vehicles requiring supplementary cab roof markers:

• Semi-trailer prime movers and rigid trucks
• Commercial vehicles requiring supplementary cab identification lighting
• Truck cab roof marker upgrades

---

Frequently Asked Questions

Which direction should the LEDs face?

LEDs must face the front of the vehicle confirm orientation before drilling the mounting hole.

Is the waterproof seal between the lamp and roof included?

Yes the 77WCM includes a waterproof seal between the roof and lamp to prevent water ingress at the cab roof mounting point.

Is this lamp ADR approved?

Yes ADR approved for supplementary cab marker use on Australian road vehicles.

Does this lamp require any tools to install?

A drill is required for the 10mm plug hole no other tools are needed for the 3M tape and plug fitting system.
