LED Autolamps 80BARWM 12/24 Multi Volt Stop/Tail/Indicator/Reverse Lamp 108 LED
ADR Approved Stop/Tail/Indicator/Reverse Assembly 108 LEDs, Full CRN Certification, 278x100mm, IP67
Product Overview

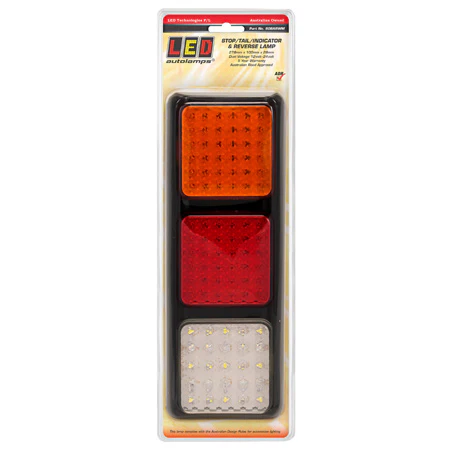

The LED Autolamps 80BARWM is the four-function flagship of the 80 series a 12/24V rear combination lamp covering stop, tail, indicator, and reverse with 108 LEDs across a 278mm x 100mm x 28mm black bracket. All four functions carry individual CRN certification: stop/tail CRN33059, indicator CRN33098, and reverse CRN35797.
Individual lens replacements, 240mm centre-to-centre mount, and pre-wired connection. Drawing 0.33A stop, 0.06A tail, 0.31A indicator, and 0.17A reverse at 13.8V. Rated IP67 and backed by a 5-year warranty.
Features & Benefits
- 108 LEDs across four functions — comprehensive rear lighting coverage in a single 278mm unit
- Full individual CRN certification — stop/tail CRN33059, indicator CRN33098, reverse CRN35797
- Individual lens replacements — each lens section replaces independently, reducing fleet maintenance costs
- All four current draws confirmed — 0.33A stop, 0.06A tail, 0.31A indicator, 0.17A reverse at 13.8V
- ADR approved across all four functions — complete compliance documentation for road-legal fitment
- 240mm centre-to-centre mount — confirm against your panel before installation
- Pre-wired surface mount — ready to connect out of the blister pack
- IP67 rated — fully sealed against dust and water immersion
- 12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
- 5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification | Detail |
|---|---|
| SKU | 80BARWM |
| Lamp Type | Stop / Tail / Indicator / Reverse |
| LED Quantity | 108 |
| Voltage Range | 12V / 24V |
| Dimensions | 278mm x 100mm x 28mm |
| Mount Centre-to-Centre | 240mm |
| Stop Current Draw | 0.33A @ 13.8V |
| Tail Current Draw | 0.06A @ 13.8V |
| Indicator Current Draw | 0.31A @ 13.8V |
| Reverse Current Draw | 0.17A @ 13.8V |
| Lens | Individual replacements |
| Housing Colour | Black |
| Mounting | Surface mount |
| Connector | Pre-wired |
| Protection Rating | IP67 |
| Stop/Tail Compliance | ADR — CRN33059 |
| Indicator Compliance | ADR — CRN33098 |
| Reverse Compliance | ADR — CRN35797 |
| Packaging | Blister pack |
| Warranty | 5 years |
Compatible With / Goes Well With
- Trucks, trailers, and commercial vehicles requiring a complete four-function rear combination lamp with full ADR certification
- 12V light vehicles and 24V heavy transport applications
- LED Autolamps 80BARRM (same dimensions, stop/tail/indicator only — no reverse)
- LED Autolamps 80BARM (same certifications, narrower 188mm format)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 80BARWM approved for road use in Australia?
Yes. The 80BARWM holds individual ADR CRN certifications across all four functions — stop/tail (CRN33059), indicator (CRN33098), and reverse (CRN35797) — meeting Australian Design Rules for full legal on-road use.
How does the 80BARWM differ from the 80BARRM?
The 80BARWM adds reverse function (CRN35797) to the same 278mm x 100mm form factor as the 80BARRM. Choose the 80BARWM for a complete four-function assembly; choose the 80BARRM where a separate reverse lamp is preferred.
What are all four current draws?
Stop draws 0.33A, tail 0.06A, indicator 0.31A, and reverse 0.17A — all at 13.8V.
What is the IP rating on the 80BARWM?
The 80BARWM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion.
What warranty does the 80BARWM carry?
The 80BARWM is backed by a 5-year warranty from LED Autolamps.
