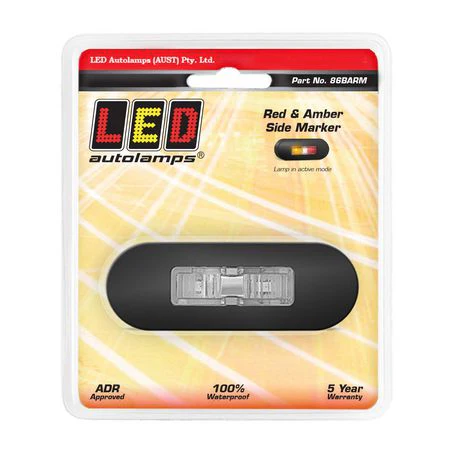

LED Autolamps 86BARM Amber/Red Marker Light - Clear Lens, Black Bezel

Ultra-Slim Amber LED Marker Light Clear Lens, Black Stainless Steel Bezel, 12/24V ADR Approved.

Product Overview

The LED Autolamps 86BARM is an ultra-slim amber LED clearance and marker light featuring a clear polycarbonate lens with internal coloured LEDs and a black stainless steel bezel. Measuring just 14mm wide x 12mm high x 2.5mm deep, the 86BARM is one of the slimmest marker lights in the LED Autolamps range ideal for flush mounting on trailer frames, caravan bodies, truck panels, and commercial vehicle bodywork where a low-profile, unobtrusive marker solution is required.

The black stainless steel bezel provides corrosion resistance suited to coastal, outback, and demanding outdoor environments, while the clear lens with internal amber LEDs maintains colour accuracy without the UV-related fading common in traditional coloured plastic lenses. Compatible with both 12V and 24V systems, the 86BARM is ADR approved and backed by a 5-year warranty. Supplied as a single unit in blister packaging.

Key Specifications

• Function: Clearance / marker light
• LED colour: Amber
• Lens: Clear with internal amber LEDs
• Bezel material: Black stainless steel
• Housing colour: Black
• Dimensions: 14mm (W) x 12mm (H) x 2.5mm (D)
• Input voltage: 12–24V DC
• Compliance: ADR approved CTATBA
• Warranty: 5 years
• Weight: 0.05kg
• Packaging: Blister pack single unit
• Brand: LED Autolamps
• SKU: 86BARM

Features & Benefits

• Ultra-slim 2.5mm depth: Extremely low profile at just 2.5mm deep, allowing near-flush mounting on trailer frames, caravan sides, and body panels where clearance is tight
• Clear lens with internal amber LEDs: Modern design delivers consistent amber light output through a clear polycarbonate lens, eliminating the UV fading and discolouration associated with traditional coloured plastic lenses
• Black stainless steel bezel: Corrosion-resistant stainless steel construction with a black finish withstands coastal salt spray, outback dust, and road grime, outlasting standard chrome plastic alternatives
• 12V and 24V compatible: Operates across both 12V passenger, caravan, and trailer applications and 24V commercial truck and bus systems from a single part number
• ADR approved: Compliant with Australian Design Rules for use as a clearance and marker light on road vehicles, trailers, and commercial vehicles
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty for long-term installation confidence

Technical Specs

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring ADR-compliant amber marker or clearance lighting including:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• Agricultural and construction trailers
• Horse floats and livestock trailers

Pairs well with:

• LED Autolamps combination lamps and trailer lighting range
• LED Autolamps MAXILAMPC3XR stop/tail/indicator combination lamp
• LED Autolamps 35CARM red/amber side marker
• LED Autolamps 7030R red self-adhesive reflectors

Frequently Asked Questions

What colour does this marker light emit?

The 86BARM emits amber light through a clear polycarbonate lens using internal coloured LEDs. Despite the product title referencing "amber/red," the confirmed LED colour from the supplier data is amber only.

Is this lamp ADR approved for Australian road use?

Yes the 86BARM is ADR approved. The ADR compliance code in the NAPA supplier system is listed as CTATBA. If you require the full final certification number for compliance documentation, confirm this with LED Autolamps directly before purchasing.

What voltage systems is this lamp compatible with?

The 86BARM operates on both 12V and 24V DC systems, making it suitable for passenger vehicles, caravans, trailers, and 24V commercial trucks from a single part number.

Why does the lens look clear if the light is amber?

The clear lens design uses internal amber LEDs to produce the coloured output, rather than relying on a tinted lens. This approach maintains colour accuracy and brightness over time without UV fading or lens discolouration that occurs with traditional coloured plastic lenses.

What is the bezel made of and why does it matter?

The bezel is black stainless steel, providing genuine corrosion resistance against salt spray, moisture, and road chemicals making it more durable than standard chrome plastic bezels in coastal and outback Australian conditions.
