LED Autolamps 86BRM 12/24V Rear End Outline Marker Lamp Clear Lens Coloured LEDs Black Steel Bezel Blister Pack

Red LED Rear End Outline Marker Black Steel Bezel, Clear Lens, ADR Approved, 12/24V.

---

Product Overview

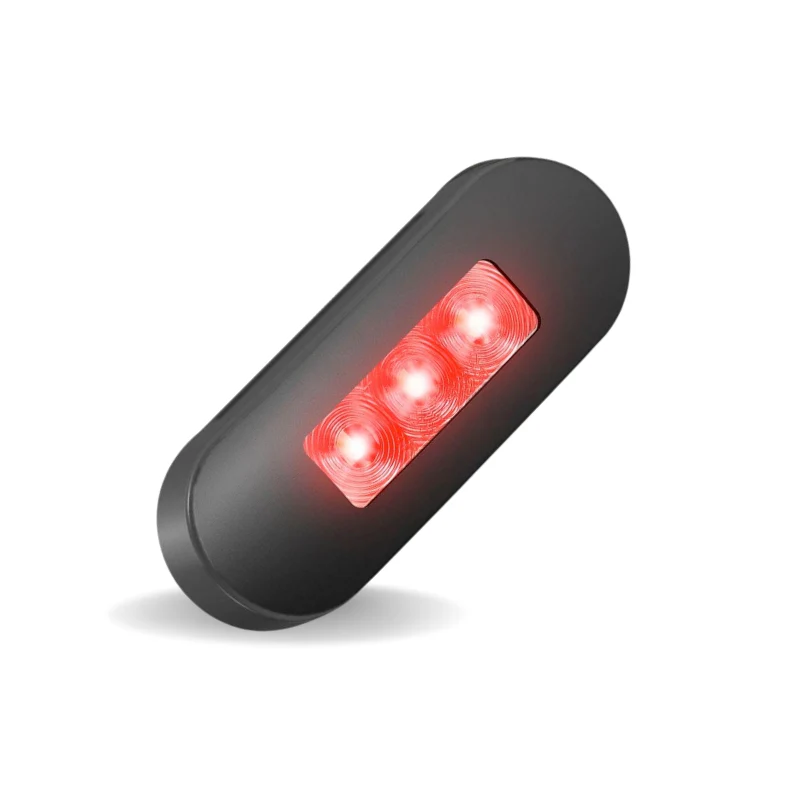

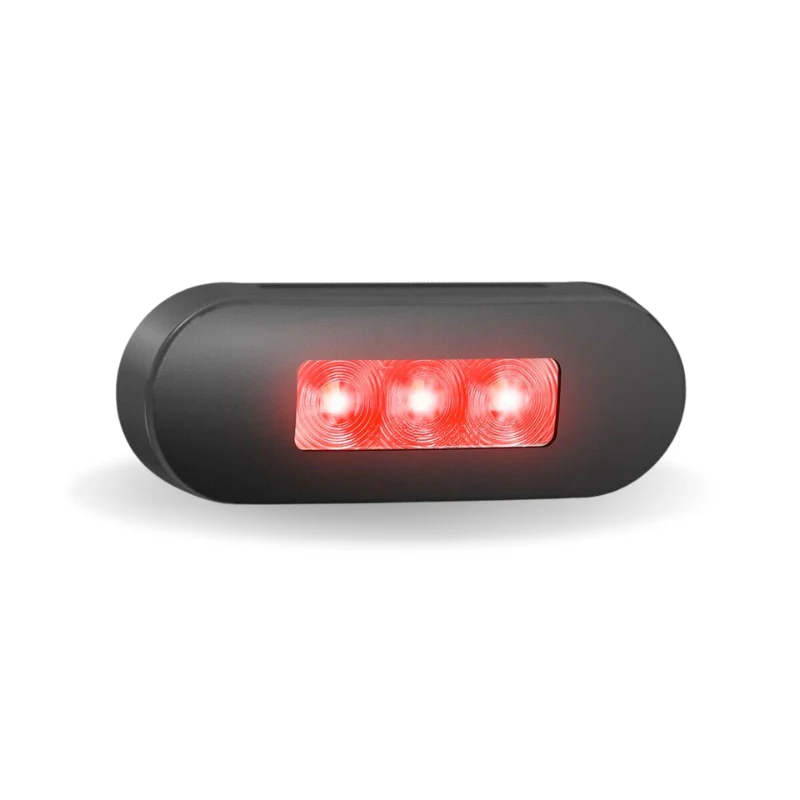

The LED Autolamps 86BRM is a red LED rear end outline marker lamp from the 86B series the red rear marker companion to the white 86BWM and amber 86AMB/86BARM variants. Sharing the same proven black steel bezel, clear polycarbonate lens with internal coloured LEDs, ultra-slim 2.5mm depth, and 14mm x 12mm compact form factor, the 86BRM delivers ADR-compliant red rear marker output in one of LED Autolamps' most space-efficient lamp formats.

ADR approved (CTA046821) and rated for 12–24V multivolt operation, the 86BRM is well suited to trailer frames, rear body panels, and structural members where a discreet, low-profile rear marker is required. The black steel bezel provides corrosion resistance for coastal and outback conditions. Backed by LED Autolamps' 5-year warranty and supplied as a single unit in blister packaging.

---

Key Specifications

• Function: Red rear end outline marker
• LED colour: Red
• Lens: Clear polycarbonate with internal red LEDs
• Bezel material: Black steel
• Housing colour: Black
• Dimensions: 14mm (W) x 12mm (H) x 2.5mm (D)
• Mount type: Surface mount
• IP rating: IP67
• Input voltage: 12–24V DC (multivolt)
• Compliance: ADR approved CTA046821
• Warranty: 5 years
• Weight: 0.05kg
• Packaging: Blister pack single unit
• Brand: LED Autolamps
• SKU: 86BRM

---

Features & Benefits

• Red LED rear end outline marker: ADR compliant red rear marker output through a clear lens with internal red LEDs for rear end outline marking on trailers and commercial vehicles
• Black steel bezel: Corrosion-resistant steel bezel in black finish withstands coastal salt spray, outback dust, and road grime more durable than chrome plastic alternatives
• Clear lens with internal red LEDs: Maintains colour accuracy and brightness without UV fading or lens discolouration over time
• Ultra-slim 2.5mm profile: Extremely low depth for nearly flush mounting on trailer frames, rear body panels, and structural members
• ADR approved CTA046821: Certified for legal red rear end outline marker use on Australian road vehicles and trailers
• 12V and 24V compatible: Multivolt operation suits passenger trailers, caravans, and 24V commercial trucks
• IP67 weatherproof: Fully sealed against dust and temporary water immersion
• 5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty

---

Technical Specs

---

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring red ADR-compliant rear end outline markers including:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• Agricultural and construction trailers

---

Frequently Asked Questions

Is this lamp ADR approved for red rear end outline marking?

Yes the 86BRM is ADR approved under CTA046821, confirming it meets Australian legal requirements for red rear end outline marker use on trailers and road vehicles.

How does the 86BRM differ from the 86BWM?

The 86BRM emits red light for rear end outline marker applications while the 86BWM emits white light for front end outline marker applications. Both share the same 86B series dimensions (14mm x 12mm x 2.5mm) and black bezel construction.

Why does a clear lens produce red light?

The clear lens design uses internal red LEDs to produce the light output, rather than relying on a tinted lens. This approach maintains consistent colour accuracy and brightness over time without UV fading.

What voltage systems does this lamp suit?

The 86BRM operates on 12–24V DC, making it compatible with both 12V passenger and caravan trailer applications and 24V commercial truck systems.
