LED Autolamps LB1345ACM 10/30V Amber Emergency Light Bar Clear Lens With Amber LEDs 10 Selectable Flash Patterns

Heavy-Duty 1345mm Amber Emergency Light Bar 96W, 192 LEDs, SAE J845 Class 1, 10 Flash Patterns.

Product Overview

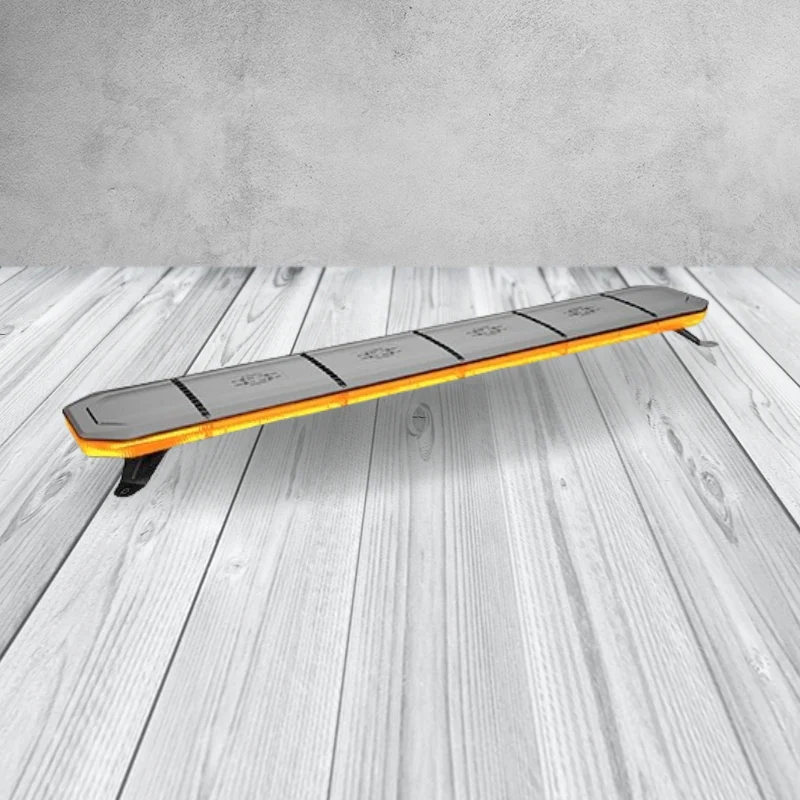

The LED Autolamps LB1345ACM is a heavy-duty 1345mm (1.3 metre) amber LED emergency light bar designed for permanent roof-mount installation on emergency, safety, and commercial vehicles requiring high-visibility amber warning illumination. With 192 high-brightness LEDs delivering 96W of output across a 1345mm x 206mm x 85mm footprint, the LB1345ACM is engineered for maximum visibility in demanding environments from roadside operations to mine sites, construction zones, and escort vehicles.

Certified to SAE/J845 Class 1 and ECE R10 standards and IP67 rated, the LB1345ACM offers 10 selectable flash patterns to suit a wide range of operational and regulatory requirements. The clear polycarbonate lens with internal amber LEDs provides consistent colour output without UV lens degradation. A 4-point fixed base surface mount ensures a secure, permanent installation on the vehicle roof. Operating across a broad 10–30V DC voltage range, the LB1345ACM suits both 12V and 24V vehicles. LED lifespan is rated at 30,000 hours. Backed by LED Autolamps' 2-year warranty and supplied individually in box packaging.

Key Specifications

• LED colour: Amber
• Lens: Clear polycarbonate with internal amber LEDs
• Housing colour: Black
• Dimensions: 1345mm x 206mm x 85mm
• Number of LEDs: 192
• Max power output: 96W
• LED lifespan: 30,000 hours
• Mount type: 4-point fixed base permanent surface mount
• Flash patterns: 10 selectable
• Compliance: SAE/J845 Class 1, ECE R10
• IP rating: IP67
• Input voltage: 10–30V DC
• Operating temperature: -40°C to +60°C
• Warranty: 2 years
• Weight: 9kg (supplier stated likely includes packaging)
• Packaging: Box single unit
• Brand: LED Autolamps
• SKU: LB1345ACM

Features & Benefits

• 192 high-brightness amber LEDs 96W output: One of the highest LED counts and power outputs in the LED Autolamps emergency bar range, delivering intense, wide-angle amber warning visibility for long-range detection
• SAE/J845 Class 1 and ECE R10 certified: Internationally recognised compliance benchmarks for emergency vehicle warning light output and electromagnetic compatibility
• 10 selectable flash patterns: Comprehensive pattern selection allows operators to configure the most appropriate warning signal for their specific application and local regulatory requirements
• Clear lens with internal amber LEDs: Maintains colour accuracy and brightness over time without UV-related lens discolouration associated with traditional amber-tinted plastic lenses
• 30,000-hour LED lifespan: Long-term reliability rated at 30,000 hours of LED operation for minimal maintenance requirements over the service life of the vehicle
• 4-point fixed base surface mount: Secure permanent roof mounting via four-point base for stable, vibration-resistant installation on emergency and commercial vehicles
• IP67 weatherproof: Completely protected against dust ingress and temporary water immersion for reliable outdoor performance in all weather conditions
• 10–30V multivolt operation: Compatible with both 12V and 24V electrical systems across passenger vehicles, commercial trucks, and heavy equipment
• -40°C to +60°C operating range: Built to operate reliably in Australia's extreme temperature environments
• 2-year warranty: Backed by LED Autolamps' 2-year product warranty

Technical Specs

Compatible With

Universal suits all 10–30V vehicles requiring permanent amber emergency warning lighting including:

• Emergency and first response vehicles
• Roadside assistance and highway maintenance vehicles
• Construction, earthmoving, and mine site vehicles
• Pilot and escort vehicles
• Slow-moving agricultural and heavy haulage vehicles

Frequently Asked Questions

How many LEDs does the LB1345ACM have?

The LB1345ACM contains 192 amber LEDs delivering a maximum output of 96W the highest configuration in the LED Autolamps LB series emergency bar range.

What compliance certifications does this light bar hold?

The LB1345ACM is certified to SAE/J845 Class 1 and ECE R10 internationally recognised standards for emergency vehicle warning light output and electromagnetic compatibility respectively.

How is the LB1345ACM mounted?

The LB1345ACM uses a 4-point fixed base for permanent surface mounting on the vehicle roof. It is not a magnetic mount it is designed for semi-permanent or permanent installation. Plan cable routing before drilling and installation.

Is this light bar legal for use on public roads in Australia?

SAE/J845 Class 1 and ECE R10 certification confirms the light bar meets international output and EMC standards for emergency warning lighting. However, legal requirements for amber emergency light bar use on public roads vary by Australian state and territory and by vehicle type. Always confirm local regulatory requirements before fitting this light bar for on-road use.

What is the LED lifespan of this light bar?

The LB1345ACM is rated for 30,000 hours of LED operation, providing long-term reliability with minimal maintenance requirements over the service life of the vehicle installation.
