LED Autolamps LB246AM 12/24V Amber Emergency Mini Light Bar Amber Lens With Amber LEDs 18 Selectable Flash Patterns

SAE J845 Class 1 Amber Emergency Mini Light Bar 30 LEDs, Amber Lens, 18 Flash Patterns, Permanent Mount.

Product Overview

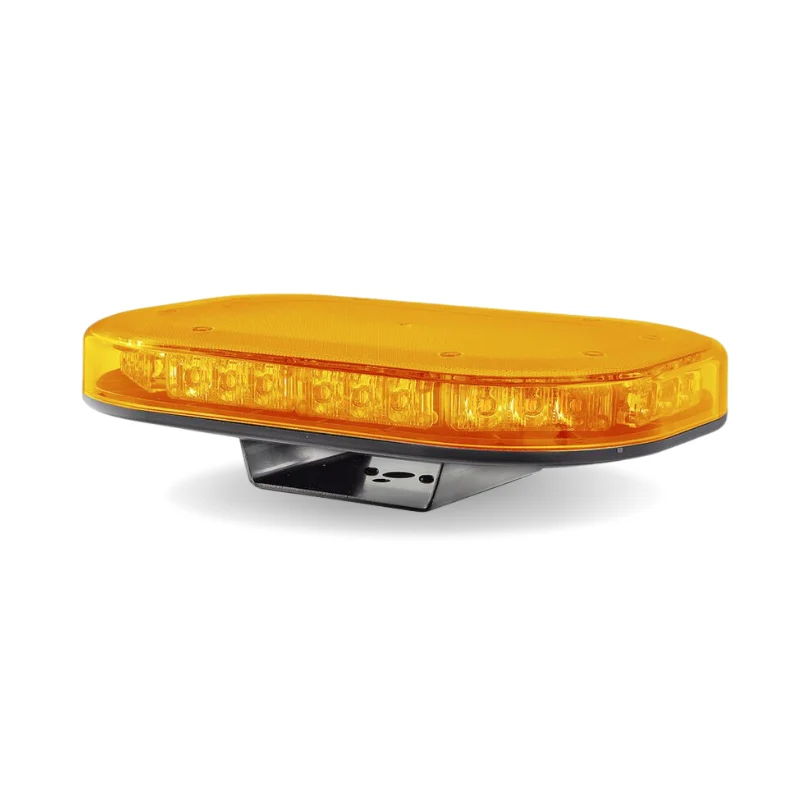

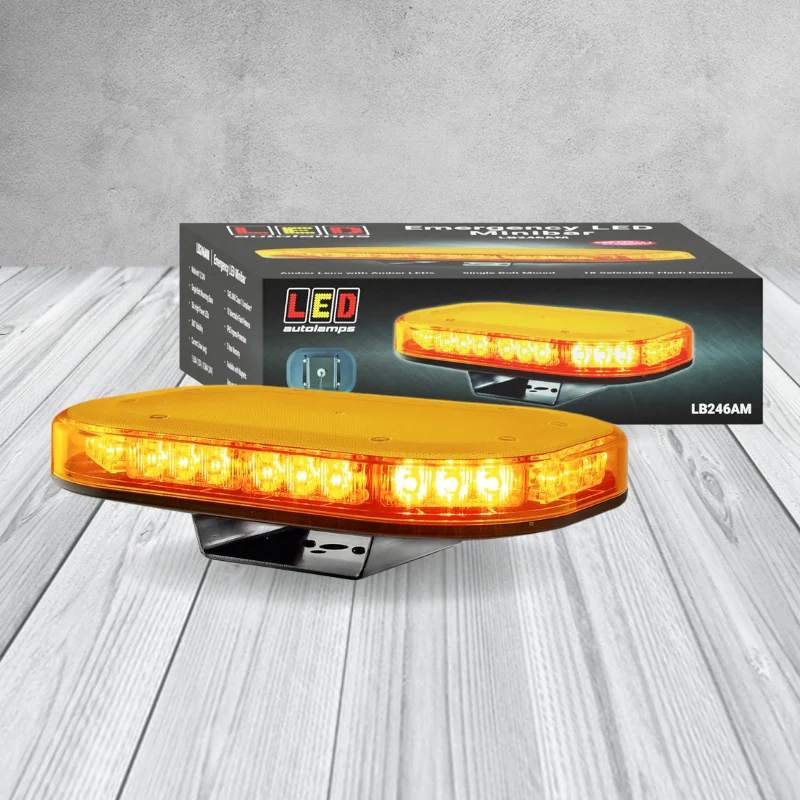

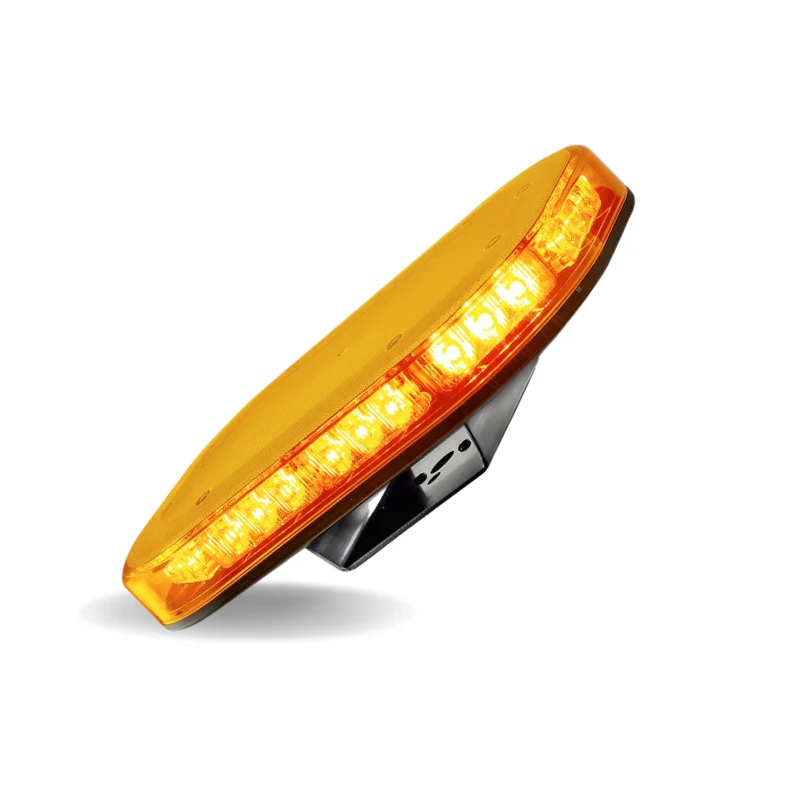

The LED Autolamps LB246AM is a heavy-duty amber LED emergency mini light bar featuring an amber tinted lens with 30 amber LEDs delivering high-visibility warning illumination in a compact 246mm x 172mm x 64mm permanent mount unit. Certified to SAE/J845 Class 1 (Quad) and ECE R65/R10 standards, the LB246AM meets international compliance benchmarks for Class 1 emergency warning light output across 18 selectable flash patterns.

The amber lens and amber LED combination produces a rich, consistent amber warning output with no colour dilution from a clear lens. Powered by 1-watt LEDs across a broad 10–30V DC input range, the LB246AM suits both 12V and 24V emergency, safety, and commercial vehicle applications. IP65 rated for dust and weather protection, operating from -40°C to +60°C, and backed by LED Autolamps' 5-year warranty.

Key Specifications

• LED count: 30 amber LEDs
• Lens: Amber tinted
• Housing colour: Black
• Dimensions: 246mm x 172mm x 64mm
• Mount type: Permanent
• Flash patterns: 18 selectable
• LED type: 1-watt high brightness
• Light output class: Class 1 (Quad)
• Compliance: SAE/J845 Class 1, ECE R65, ECE R10
• IP rating: IP65
• Input voltage: 10–30V DC
• Operating temperature: -40°C to +60°C
• Warranty: 5 years
• Packaging: Box single unit
• Brand: LED Autolamps
• SKU: LB246AM

Features & Benefits

• 30 amber LEDs 1W each: 30 high-brightness 1-watt LEDs deliver powerful amber warning output for maximum visibility in daylight conditions
• Amber lens with amber LEDs: The combination of amber tinted lens and amber LEDs produces a rich, saturated amber warning light with no colour dilution maximising amber output effectiveness
• SAE/J845 Class 1 (Quad) and ECE R65/R10 certified: Internationally recognised emergency warning light compliance standards for maximum output classification
• 18 selectable flash patterns: Extensive pattern selection for operational flexibility and local regulatory compliance
• Permanent mount: Fixed base installation for secure, vibration-resistant permanent mounting on emergency and commercial vehicles
• IP65 weatherproof: Protected against dust ingress and low-pressure water spray for reliable outdoor performance
• -40°C to +60°C operating range: Built for Australia's extreme temperature environments
• 10–30V compatible: Suits both 12V and 24V vehicle electrical systems
• 5-year warranty: Backed by LED Autolamps' 5-year product warranty

Technical Specs

Compatible With

Universal suits all 10–30V vehicles requiring amber emergency warning lighting including:

• Emergency and first response vehicles
• Roadside assistance and breakdown vehicles
• Construction, earthmoving, and mine site vehicles
• Pilot and escort vehicles
• Slow-moving agricultural and heavy haulage vehicles

Frequently Asked Questions

How does the LB246AM differ from the LB246ATMM?

The LB246AM features a permanent mount and an amber tinted lens. The LB246ATMM features a magnetic mount for temporary deployment. Both share the same 246mm x 172mm x 64mm footprint, 18 flash patterns, SAE/J845 Class 1, and ECE R65/R10 compliance.

Is this light bar legal for use on public roads in Australia?

SAE/J845 Class 1 and ECE R65 certification confirms the bar meets international output standards for emergency warning lighting. However, legal requirements for amber emergency light bar use on public roads vary by Australian state and territory and by vehicle type. Always confirm local regulatory requirements before fitting for on-road use.

What does Class 1 (Quad) mean?

Class 1 is the highest output classification under SAE/J845 the standard for primary emergency vehicle warning lights. "Quad" refers to the four-sided/omnidirectional light output configuration of the mini bar.

How many LEDs does this light bar have?

The LB246AM contains 30 amber 1-watt LEDs.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions about this product.
