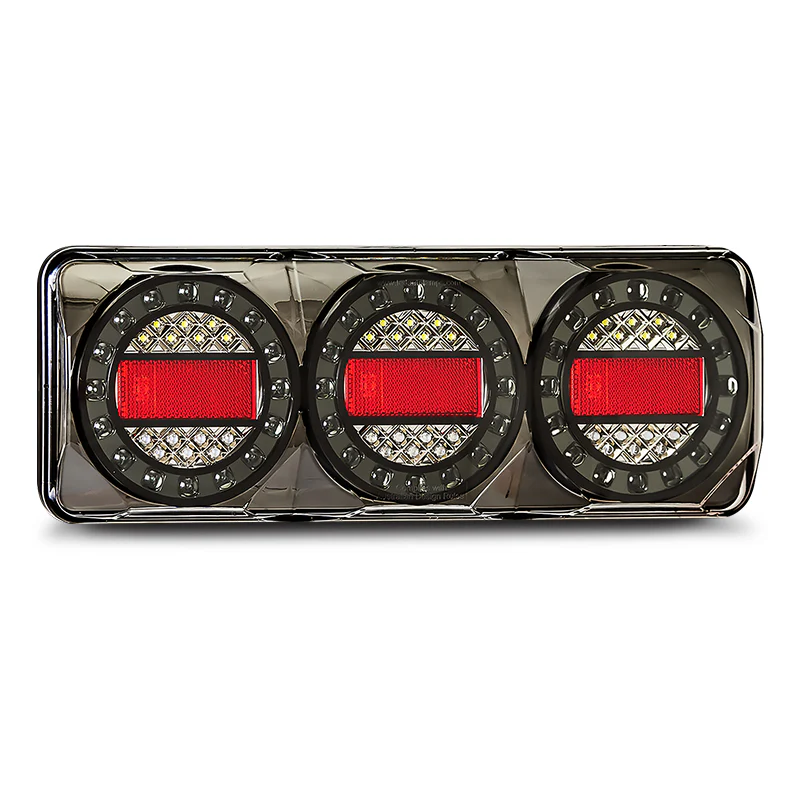

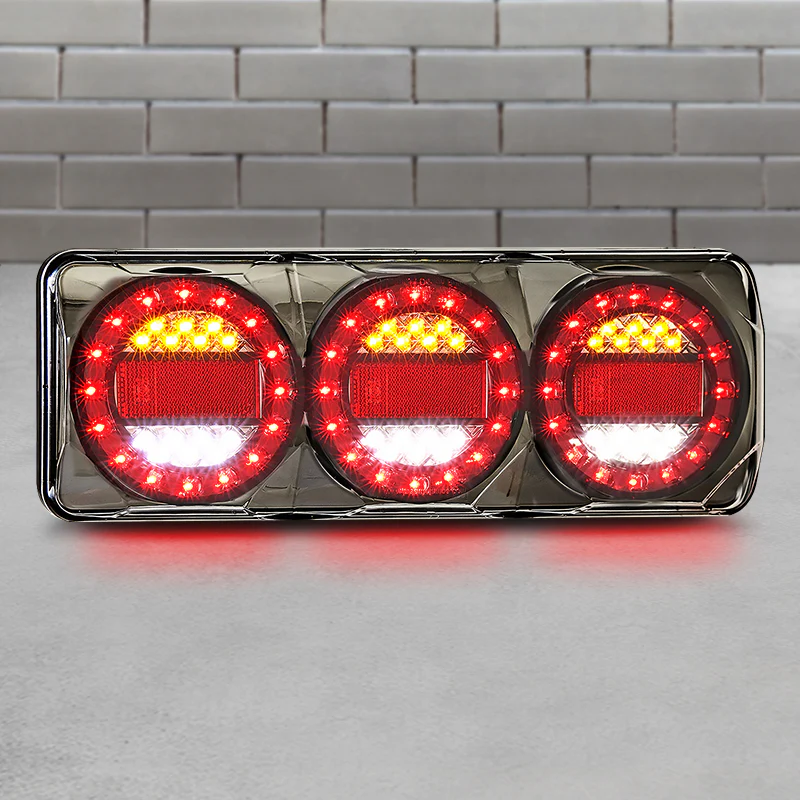

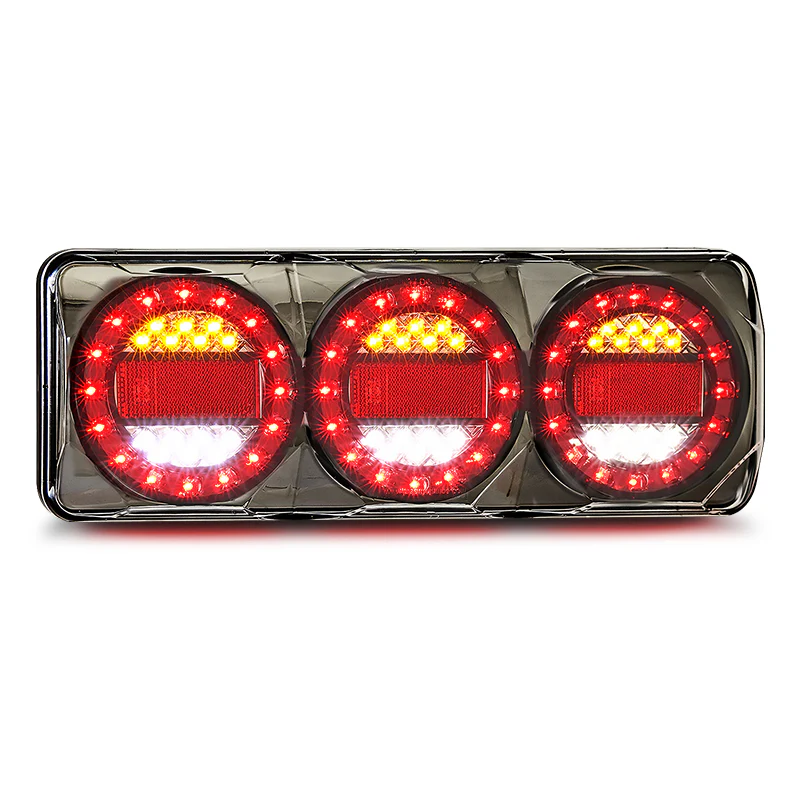

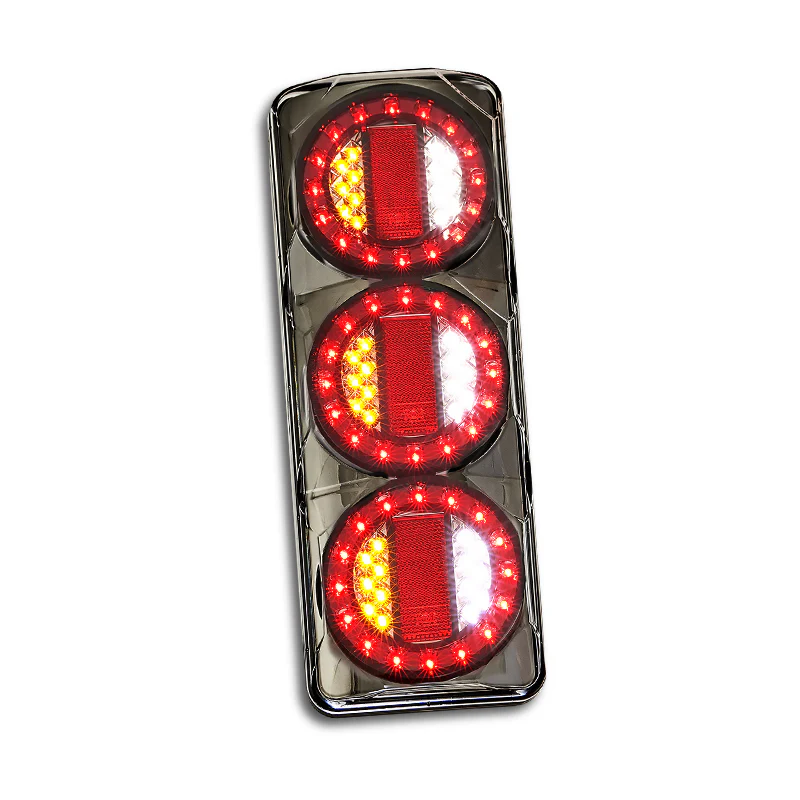

LED Autolamps MAXILAMPC3XRWB 12/24V Maxilamp Stop/Tail/Indicator/Reverse/Reflector Combo Lamp Black Chrome

Five-Function ADR-Approved Combination Lamp Stop, Tail, Indicator, Reverse & Reflector in Black Chrome.

Product Overview

The LED Autolamps MAXILAMPC3XRWB is a five-function LED combination lamp delivering stop, tail, indicator, reverse, and reflector functions in a single surface-mount unit with a black chrome housing finish. An upgrade from the four-function MAXILAMPC3XR, the addition of a dedicated reverse light makes this lamp ideal for trailers, caravans, trucks, and commercial vehicles where all five functions are required in one compact assembly.

Compatible with both 12V and 24V systems, ADR road approved, and ECE certified (CTA040963), the MAXILAMPC3XRWB meets Australian legal requirements for road use across all confirmed functions. Measuring 370mm x 135mm x 40mm the same footprint as the MAXILAMPC3XR the MAXILAMPC3XRWB is IP67 rated for full weatherproof protection and backed by LED Autolamps' industry-leading 7-year warranty. Supplied individually in box packaging.

Key Specifications

• Functions: Stop, tail, indicator, reverse, reflector
• Voltage: 12V or 24V
• Housing colour: Black chrome
• IP rating: IP67
• Compliance: ADR approved, ECE certified CTA040963
• Warranty: 7 years
• Dimensions: 370mm x 135mm x 40mm
• Mount type: Surface mount
• Light type: LED
• Weight: 1.25kg
• Packaging: Box single unit
• Brand: LED Autolamps
• SKU: MAXILAMPC3XRWB

Features & Benefits

• Five-function combination lamp: Combines stop, tail, indicator, reverse, and reflector functions in a single lamp unit, simplifying wiring and reducing the number of separate lamp assemblies required on the vehicle
• Reverse light included: The addition of a dedicated reverse function distinguishes the MAXILAMPC3XRWB from the four-function MAXILAMPC3XR, making it suitable for applications requiring all five rear lighting functions in one unit
• ADR and ECE approved: Fully compliant with Australian Design Rules and ECE certification (CTA040963) for legal road use across all five lamp functions
• Black chrome housing: Premium black chrome face finish suits modern trailer and commercial vehicle builds requiring a sleek, professional lamp aesthetic
• 12V and 24V compatible: Operates on both 12V and 24V systems, making it suitable for passenger vehicle trailers, caravans, and heavy commercial trucks
• IP67 weatherproof: Fully protected against dust ingress and temporary water immersion, reliable in demanding Australian road conditions year-round
• LED technology: Longer lifespan, lower power draw, and faster response time compared to traditional incandescent trailer lamps
• 7-year warranty: LED Autolamps' industry-leading 7-year warranty reflects the long-term reliability of this premium combination lamp
• Same footprint as MAXILAMPC3XR: Drop-in dimensional compatibility with the four-function MAXILAMPC3XR for vehicles upgrading to five-function coverage without structural modification

Technical Specs

Compatible With

Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring ADR-approved five-function combination lamps including:

• Box trailers, car trailers, and boat trailers
• Caravans and camper trailers
• Light and heavy commercial trucks
• Agricultural and construction trailers

Pairs well with:

• LED Autolamps 35CARM red/amber side marker
• LED Autolamps 42RM red LED rear marker
• LED Autolamps 7030R red self-adhesive reflectors

Frequently Asked Questions

What is the difference between the MAXILAMPC3XRWB and the MAXILAMPC3XR?

The MAXILAMPC3XRWB adds a dedicated reverse light function to the four-function MAXILAMPC3XR (stop/tail/indicator/reflector). Both share the same black chrome housing and 370mm x 135mm x 40mm footprint, making the MAXILAMPC3XRWB a direct five-function upgrade for trailers requiring reverse light capability.

Is this lamp ADR approved for Australian road use?

Yes the MAXILAMPC3XRWB is ADR road approved and ECE certified (CTA040963), confirming it meets Australian legal requirements for road use across all five lamp functions.

How many units are supplied in this pack?

This product is supplied as a single unit in box packaging. If you require both left and right side lamps, two units will need to be purchased.

Does my trailer wiring need to support a reverse light for this lamp to work?

Yes the MAXILAMPC3XRWB includes a reverse light function that requires a reverse trigger wire in the trailer wiring harness. Confirm your trailer's wiring supports reverse light activation before purchasing.

What is covered under the 7-year warranty?

The 7-year warranty is provided by LED Autolamps and covers manufacturing defects. Contact your retailer or LED Autolamps directly for warranty claim procedures and terms.
