MB Quart MBQ-NA2-320.4 | Four Channel Amplifier | 320 Watt NA2 Powersports

Compact Power, Rugged Performance – MB Quart 4 x 80W Powersports Amplifier Built for Any Adventure!

4 x 80 Watt Compact Powersports Amplifier.

Specifications:

• Colour: Black
• Warranty: 2 Years
• Amp Class: Full Range Class D
• Amp Total Channels: 4
• Amp Max Power (watts): 320
• Amp Power @ 2 Ohm (ch x watts): 4 x 80
• Amp Power @ 4 Ohm (ch x watts): 4 x 40
• Amp Variable High Pass Crossover 12dB per Octave: CH1 & CH2: Switched Full/HPF, CH3 & CH4: Switched Full/HPF
• Amp Variable Low Pass Crossover 12dB per Octave: –
• Amp Bass Boost: 0-12dB @ 45Hz
• Amp Variable Voltage: 0.2-9V

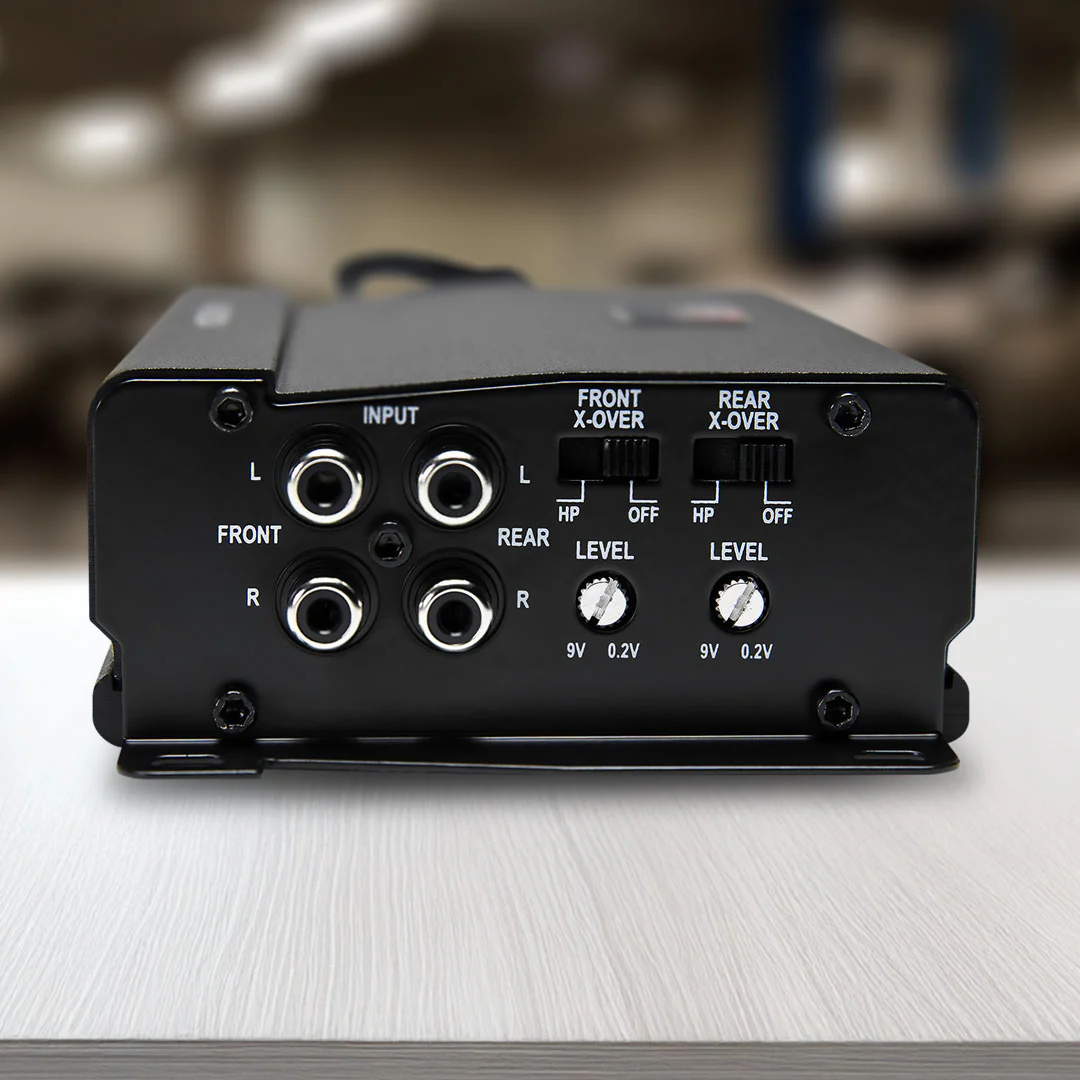

• RCA Inputs: 2 Pair RCA Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
• Operation Mode: Four channel operation: Flexible installation allows this amplifier to run in four channel or bridged mono mode.
• Crossover Type: Switched OFF / HP: Complete control of amplifier signal, essential when using two or more amplifiers.
• Class / Topology: Full Range Class D: Highly efficient circuit topology which helps the amplifier develop a lot of power in a very small heatsink.
• Output Device Technology: PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
• Heat Sink: Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration.
• Power Supply: Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
• Output Connections: Quick Disconnect Wires, RCA Connections: Quickly remove amplifier when you are putting machine up for the winter of as a security precaution.
• Connection Type: Nickel-plated connections: Nickel plated corrosion resistant connections.
• LED System Protection Circuitry Diagnostics: Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.
