Roadvision BR601AR LED Jumbo Combination Lamp Stop Tail Indicator
Roadvision BR601AR LED Jumbo Combination Lamp Stop Tail Indicator

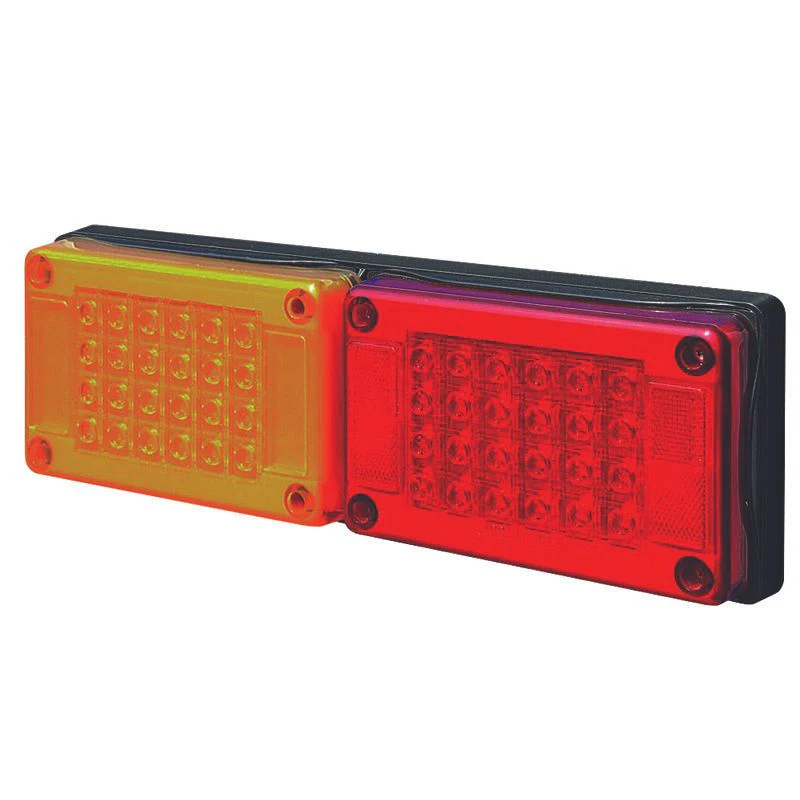

A twin module LED jumbo combination lamp from the Roadvision BR601 Series, the BR601AR combines stop/tail and indicator functions with an integrated reflector, 10-30V DC multi-volt input, sealed polycarbonate lenses on a high impact ABS housing, a 100,000 hour rated LED lifespan, ADR/ECE approval for all functions, and a 5-year warranty.
Product Overview
The Roadvision BR601AR is a heavy duty all-in-one rear lighting solution for trucks and trailers, packing stop/tail, indicator, and reflector functions into a compact 402 x 132 x 41mm twin module jumbo lamp. With 24 stop/tail LEDs and 24 indicator LEDs, it produces more light output than incandescent lamps while drawing a fraction of the current, at just 0.1A for the indicator and 0.1/0.05A for stop/tail at 13.8V.
The unbreakable sealed polycarbonate lenses and extremely tough high impact ABS housing are dust and water proof and totally maintenance free, with a 100,000 hour rated LED lifespan from solid-state technology. The simple surface mount design retro-fits in place of existing jumbo lamps on 300mm and 124mm mounting hole centres, and the lamp is supplied pre-wired with a 300mm LEDLink connector. All functions are ADR/ECE approved. With Roadvision it's fit and forget.
Features & Benefits
All-In-One Heavy Duty Combination Lamp: The BR601AR combines stop/tail, indicator, and reflector functions in one twin module jumbo lamp, replacing multiple separate lamps on the rear of trucks and trailers.
Compact Twin Module Body: At 402 x 132 x 41mm, the twin module BR601AR suits installations where the 604mm triple module lamps will not fit, while keeping the same jumbo lamp construction.
Retro-Fits Existing Jumbo Lamps: The simple surface mount design retro-fits in place of existing jumbo combination lamps, making it a straightforward LED upgrade for heavy vehicles.
More Light, Less Current: The BR601 Series produces more light output than conventional incandescent systems while drawing a fraction of the current, with 24 LEDs per function.
100,000 Hour Rated LED Lifespan: Solid-state LED technology delivers a 100,000 hour rated lifespan for totally maintenance-free operation over the life of the vehicle.
Unbreakable Polycarbonate Lenses and High Impact ABS Housing: The sealed polycarbonate lenses and extremely tough high impact ABS housing are dust and water proof, built for heavy duty road exposure.
Multi-Volt 10-30V DC Input: The 10-30V DC multi-volt input makes the BR601AR compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.
ADR/ECE Approved for All Functions: The indicator, stop, and tail functions are all ADR/ECE approved for legal on-road use in Australia.
Pre-Wired with LEDLink Connector: The lamp is supplied pre-wired with a 300mm LEDLink connector for a quick, tidy connection to the vehicle harness.
5-Year Warranty: The BR601AR is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | BR601AR |
| Brand | Roadvision |
| Series | BR601 Combination |
| Description | Rect Stop/Tail/Ind Lamp Twin Module |
| Functions | Stop/Tail, Indicator and Reflector |
| Voltage Input | 10-30V DC |
| Number of LEDs | Indicator - 24 LEDs, Stop/Tail - 24 LEDs |
| Current Draw | Indicator - 0.1A, Stop/Tail - 0.1/0.05A at 13.8V |
| Dimensions | 402 x 132 x 41mm |
| Lens | Polycarbonate |
| Housing | ABS High Impact |
| Ingress Protection | Water and Dust Proof |
| Mounting Type | Surface Mount |
| Mounting Hole Centres | 300mm and 124mm |
| Cable | 300mm with LEDLink Connector |
| ADR Approval | Indicator - CRN 46082, Stop - CRN 46121, Tail - CRN 46120 |
| CTA Approval | CTA-060775 |
| LED Lifespan | 100,000 Hours |
| Warranty | 5 Years |
Compatible With
The BR601AR is compatible with 10-30V DC electrical systems, covering both 12V and 24V trucks and trailers, and is ADR/ECE approved for all functions for on-road use in Australia. The surface mount design retro-fits in place of existing jumbo lamps. The BR601 Series is also available as 604mm triple module versions with double stop/tail (BR601ARR) or reverse (BR601ARW). Confirm the 402mm lamp length and 300mm/124mm mounting hole centres fit your intended location before purchase.
Frequently Asked Questions
What functions does the BR601AR include?
The BR601AR combines stop/tail and indicator functions with an integrated reflector in a single twin module jumbo lamp, with 24 LEDs per function.
Is the BR601AR ADR approved?
Yes. All functions are ADR/ECE approved, with indicator CRN 46082, stop CRN 46121, tail CRN 46120, and CTA approval CTA-060775.
Is the BR601AR compatible with 24V trucks?
Yes. The BR601AR operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
Can the BR601AR replace my existing jumbo lamp?
Yes. The simple surface mount design retro-fits in place of existing jumbo combination lamps, with 300mm and 124mm mounting hole centres. Confirm your existing mounting positions before purchase.
What is the difference between the BR601AR and the triple module versions?
The BR601AR is the compact 402mm twin module with stop/tail and indicator. The 604mm triple module versions add either a second stop/tail module (BR601ARR) or a reverse function (BR601ARW).
