Roadvision BR601ARR LED Jumbo Combination Lamp Twin Stop Tail Ind
Roadvision BR601ARR LED Jumbo Combination Lamp Twin Stop Tail Ind

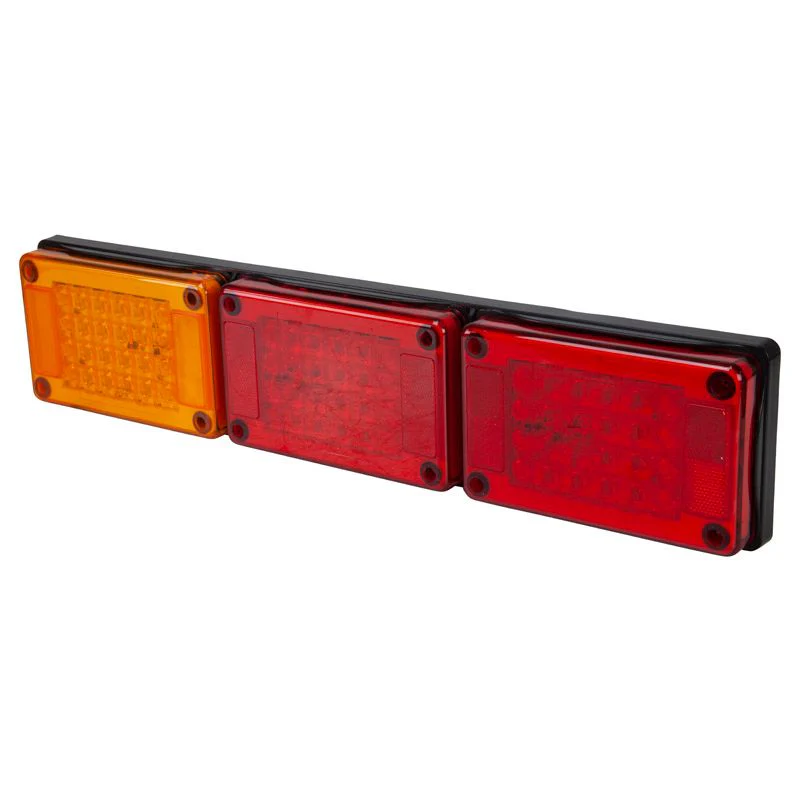

A triple module LED jumbo combination lamp from the Roadvision BR601 Series, the BR601ARR combines twin stop/tail modules and an indicator with an integrated reflector, 10-30V DC multi-volt input, sealed polycarbonate lenses on a high impact ABS housing, a 100,000 hour rated LED lifespan, ADR/ECE approval for all functions, and a 5-year warranty.
Product Overview
The Roadvision BR601ARR is a heavy duty all-in-one rear lighting solution for trucks and trailers, running double stop/tail modules alongside the indicator in a single 604 x 132 x 41mm jumbo lamp for extra rear-facing presence. With 48 stop/tail LEDs and 24 indicator LEDs, it produces more light output than incandescent lamps while drawing a fraction of the current, at just 0.1A for the indicator and 0.1/0.05A for stop/tail at 13.8V.
The unbreakable sealed polycarbonate lenses and extremely tough high impact ABS housing are dust and water proof and totally maintenance free, with a 100,000 hour rated LED lifespan from solid-state technology. The simple surface mount design retro-fits in place of existing jumbo lamps on 501mm and 325mm mounting hole centres, and the lamp is supplied pre-wired with a 300mm LEDLink connector. All functions are ADR/ECE approved. With Roadvision it's fit and forget.
Features & Benefits
Twin Stop/Tail Modules for Extra Visibility: The BR601ARR runs two stop/tail modules with 48 LEDs in total alongside the indicator module, boosting rear-facing brake and tail presence on heavy vehicles.
All-In-One Heavy Duty Combination Lamp: Stop/tail, indicator, and reflector functions are combined in one triple module jumbo lamp, replacing multiple separate lamps on the rear of trucks and trailers.
Retro-Fits Existing Jumbo Lamps: The simple surface mount design retro-fits in place of existing jumbo combination lamps, making it a straightforward LED upgrade for heavy vehicles.
More Light, Less Current: The BR601 Series produces more light output than conventional incandescent systems while drawing a fraction of the current at 13.8V.
100,000 Hour Rated LED Lifespan: Solid-state LED technology delivers a 100,000 hour rated lifespan for totally maintenance-free operation over the life of the vehicle.
Unbreakable Polycarbonate Lenses and High Impact ABS Housing: The sealed polycarbonate lenses and extremely tough high impact ABS housing are dust and water proof, built for heavy duty road exposure.
Multi-Volt 10-30V DC Input: The 10-30V DC multi-volt input makes the BR601ARR compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.
ADR/ECE Approved for All Functions: The indicator, stop, and tail functions are all ADR/ECE approved for legal on-road use in Australia.
Pre-Wired with LEDLink Connector: The lamp is supplied pre-wired with a 300mm LEDLink connector for a quick, tidy connection to the vehicle harness.
5-Year Warranty: The BR601ARR is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | BR601ARR |
| Brand | Roadvision |
| Series | BR601 Combination |
| Description | Rect Stop/Tail(x2)/Ind Lamp Triple Module |
| Functions | Stop/Tail (x2), Indicator and Reflector |
| Voltage Input | 10-30V DC |
| Number of LEDs | Indicator - 24 LEDs, Stop/Tail - 48 LEDs |
| Current Draw | Indicator - 0.1A, Stop/Tail - 0.1/0.05A at 13.8V |
| Dimensions | 604 x 132 x 41mm |
| Lens | Polycarbonate |
| Housing | ABS High Impact |
| Ingress Protection | Water and Dust Proof |
| Mounting Type | Surface Mount |
| Mounting Hole Centres | 501mm and 325mm |
| Cable | 300mm with LEDLink Connector |
| ADR Approval | Indicator - CRN 46082, Stop - CRN 46121, Tail - CRN 46120 |
| CTA Approval | CTA-060775 |
| LED Lifespan | 100,000 Hours |
| Warranty | 5 Years |
Compatible With
The BR601ARR is compatible with 10-30V DC electrical systems, covering both 12V and 24V trucks and trailers, and is ADR/ECE approved for all functions for on-road use in Australia. The surface mount design retro-fits in place of existing jumbo lamps. The BR601 Series is also available as a twin module stop/tail/indicator (BR601AR) and a triple module with reverse (BR601ARW). Confirm the 604mm lamp length and 501mm/325mm mounting hole centres fit your intended location before purchase.
Frequently Asked Questions
What functions does the BR601ARR include?
The BR601ARR combines twin stop/tail modules with 48 LEDs, a 24 LED indicator module, and an integrated reflector in a single triple module jumbo lamp.
Why does the BR601ARR have two stop/tail modules?
The double stop/tail configuration doubles the brake and tail LED count to 48 for extra rear-facing visibility on heavy vehicles, in place of the reverse module found on the BR601ARW.
Is the BR601ARR ADR approved?
Yes. All functions are ADR/ECE approved, with indicator CRN 46082, stop CRN 46121, tail CRN 46120, and CTA approval CTA-060775.
Is the BR601ARR compatible with 24V trucks?
Yes. The BR601ARR operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
Can the BR601ARR replace my existing jumbo lamp?
Yes. The simple surface mount design retro-fits in place of existing jumbo combination lamps, with 501mm and 325mm mounting hole centres. Confirm your existing mounting positions before purchase.
