Roadvision IL72AWD LED Interior Lamp 72mm White Amber Dimmable 12V
Roadvision IL72AWD LED Interior Lamp 72mm White and Amber Dimmable with Switch 12V
A 12V dimmable white and amber LED interior lamp from Roadvision, the IL72AWD delivers 530 lumens in white (4500K) and 250 lumens in amber (1600K) from 3 white and 3 amber LEDs, with an integrated on/off switch, dimmable function, last-function memory, IP68 and IP69K protection, cast aluminium housing, polycarbonate lens, and 380mm lead, suited to canopies, cabins, caravans, marine, and camping applications.
Product Overview

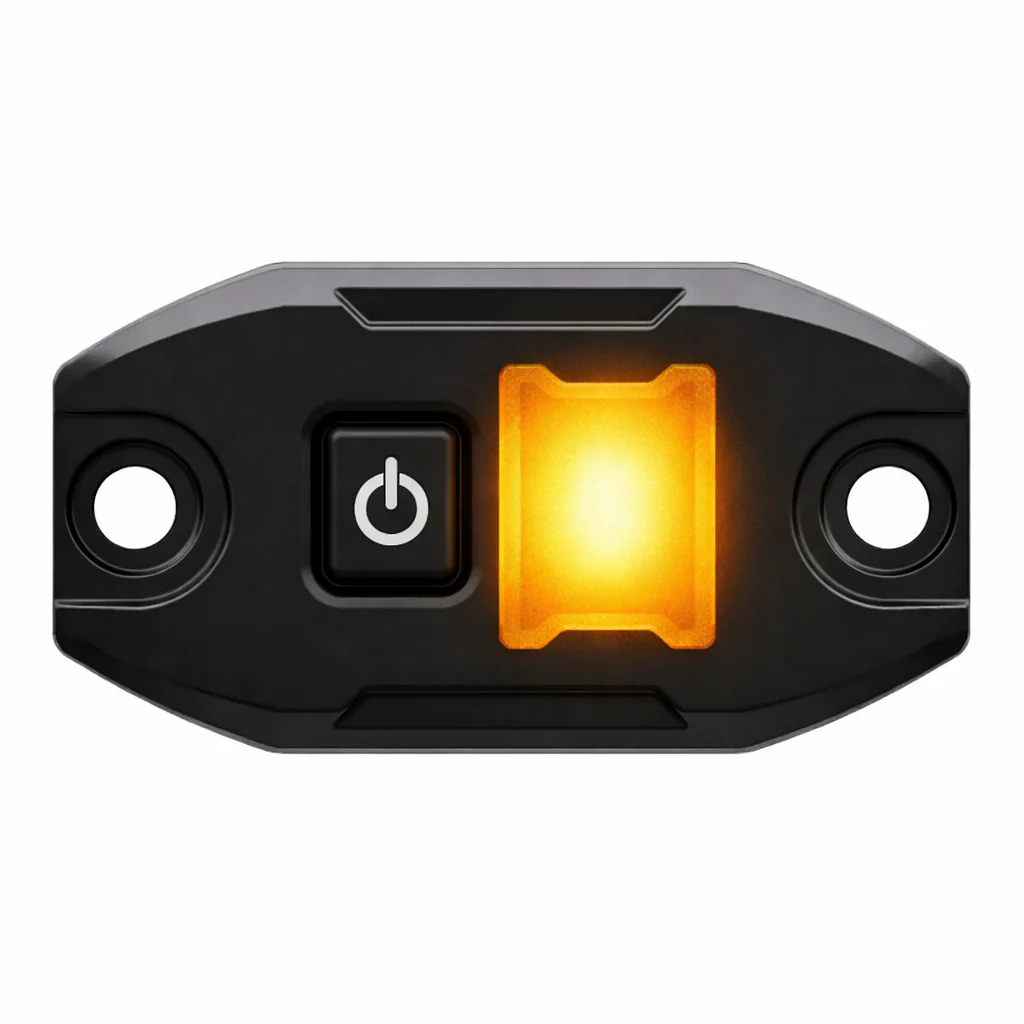

The Roadvision IL72AWD is the compact 72mm model in the Roadvision dimmable amber/white LED utility lamp series. The IL72AWD houses 3 white LEDs at 4500K and 3 amber LEDs at 1600K in a single 72 x 14 x 39mm surface mount unit, allowing the user to switch between white and amber illumination from the integrated on/off switch. White mode delivers 530 lumens of crisp daylight-close illumination for maximum task visibility. Amber mode delivers 250 lumens of warm-toned light that enhances outdoor ambience and reduces insect attraction, making it ideal for camping and evening use. The dimmable function allows light output to be adjusted to the preferred level, and the last-function memory recalls the previous colour and brightness setting on power-on. Cast aluminium housing with polycarbonate lens. IP68 and IP69K dual-rated sealed construction for interior and exterior use in harsh environments. Simple surface mount design. 380mm pre-wired lead. 12V DC input at 0.3A at 13.8V. 100,000 hour rated LED lifespan.
Features & Benefits
White and Amber Illumination in One Lamp: The IL72AWD provides 4500K white output for task lighting and 1600K amber output for ambience and insect reduction from a single lamp unit, eliminating the need for separate white and amber lamps.
530 Lumens White at 4500K: The white mode delivers 530 lumens at 4500K for crisp, bright illumination suited to canopy, cabin, and caravan interior task lighting requiring maximum visibility.
250 Lumens Amber at 1600K: The amber mode delivers 250 lumens at 1600K for warm-toned outdoor ambience lighting that reduces insect attraction, ideal for camping awnings, outdoor cooking areas, and evening use.
Integrated On/Off Switch with Dimmable Function: The built-in switch allows direct lamp control and the dimmable function provides smooth brightness adjustment without requiring an external dimmer switch.
Last-Function Memory: The last-function memory automatically recalls the previous colour mode and brightness level when the lamp is powered on, eliminating the need to reconfigure after each power cycle.
IP68 and IP69K Dual Protection - Interior and Exterior Use: Both IP68 and IP69K ratings confirm full protection against dust, sustained immersion, and high-pressure, high-temperature water jet exposure, enabling installation in interior and exterior locations in canopies, caravans, marine environments, and outdoor camping setups.
Cast Aluminium Housing with Polycarbonate Lens: Durable cast aluminium housing with polycarbonate lens provides long-term reliability in demanding environments.
Simple Surface Mount Design: The compact 72 x 14 x 39mm surface mount design installs easily to any flat surface.
380mm Pre-Wired Lead: The 380mm lead provides sufficient reach for connection to the vehicle or caravan wiring.
100,000 Hour LED Lifespan: Long-term maintenance-free reliability.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | IL72AWD |
| Brand | Roadvision |
| Series | IL Series |
| Description | LED Interior Lamp 12V White/Amber Flood Beam Dimmable With Switch |
| LED Quantity - White | 3 |
| LED Quantity - Amber | 3 |
| Lumen Output - White | 530lm |
| Lumen Output - Amber | 250lm |
| Colour Temp - White | 4500K |
| Colour Temp - Amber | 1600K |
| Input Voltage | 12V DC |
| Current Draw | 0.3A at 13.8V |
| Lens Construction | Polycarbonate |
| Housing Construction | Cast Aluminium |
| IP Rating | IP68 and IP69K |
| Dimensions | 72mm x 14mm x 39mm |
| Switch | Integrated On/Off with Dimmer |
| Memory | Last-Function Memory |
| Wiring | 380mm Lead |
| LED Lifespan | 100,000 Hours |
Compatible With
The IL72AWD is compatible with 12V DC electrical systems including vehicle, caravan, marine, and camping power supplies. IP68 and IP69K rated for interior and exterior use. The IL Series is also available in 120mm (IL120AWD) and 180mm (IL180AWD) sizes.
Frequently Asked Questions
Can the IL72AWD be used in exterior outdoor locations?
Yes. The IP68 and IP69K dual rating confirms the IL72AWD is fully sealed against dust, sustained immersion, and high-pressure water jets, enabling installation in both interior and exterior locations including canopies, outdoor camping areas, and marine environments.
Does the IL72AWD remember its settings after power is cut?
Yes. The last-function memory recalls the previous colour mode and brightness setting when the lamp is powered back on.
What is the difference between white and amber mode on the IL72AWD?
The white mode (4500K) delivers 530 lumens of crisp bright illumination for maximum task visibility. The amber mode (1600K) delivers 250 lumens of warm-toned light that enhances outdoor ambience and reduces insect attraction, particularly suited to camping and evening outdoor use.
Is the IL72AWD compatible with 24V systems?
No. The IL72AWD is a 12V DC unit only. Confirm your supply voltage before purchase.
What is the difference between the IL72AWD and the larger IL Series models?
All three models share the same design, dual white/amber output, dimmable function, last-function memory, IP68/IP69K rating, and 12V DC input. The IL72AWD is 72mm long with 3 white and 3 amber LEDs producing 530lm white and 250lm amber. The IL120AWD is 120mm with 12 LEDs each producing 560lm white and 470lm amber. The IL180AWD is 180mm with 27 LEDs each producing 757lm white and 645lm amber. Choose size based on the required mounting length and light output.
