Roadvision RBL5220C DC2 22" Dual Row LED Light Bar 120W 10800lm
Roadvision RBL5220C DC2 Series 22" Dual Row LED Light Bar 120W Combo Beam
A 22" 120W dual row combo beam LED light bar from the Roadvision DC2 Series, the RBL5220C delivers 10800 lumens with a beam distance of 787 metres at 0.5 lux and 394 metres at 1 lux, powered by 40 x 3W Osram Hi-Lux LEDs, featuring soft start and advanced Thermal Management Technology, IP67 protection, 9-position adjustable anti-vibration end mounts, low-profile slide mounts, and a 7-year warranty.
Product Overview
The Roadvision RBL5220C is a 22" dual row LED light bar from the DC2 Series. Forty 3W Osram Hi-Lux LEDs produce 120W of super-white daylight-close output in a combo beam pattern, delivering 10800 lumens with 1549 lux at 10 metres, 394 metres at 1 lux, and 787 metres at 0.5 lux. The ultra-slim 65mm deep housing provides greater mounting flexibility. Soft start and advanced Thermal Management Technology. IP67 waterproof and dustproof. Multi-volt 10-30V DC at 6.7A at 13.8V. 2-pin Deutsch plug. 9-position adjustable anti-vibration end mount system and low-profile slide mounts. 50,000 hour LED lifespan. Backed by a 7-year warranty.
Features & Benefits
10800 Lumens - 787 Metres at 0.5 Lux: Delivers 10800lm with 1549 lux at 10 metres, 394m at 1 lux, and 787m at 0.5 lux for strong mid-range dual row light bar performance.
40 x 3W Osram Hi-Lux LEDs - 120W: Dual row configuration with 40 x 3W Osram Hi-Lux LEDs for high-intensity output from a 22" bar.
Soft Start and Advanced Thermal Management Technology: Reduces LED stress on power-on and maintains consistent output and reliability.
Ultra-Slim 65mm Deep Housing: Greater mounting flexibility in tight mounting positions.
9-Position Adjustable Anti-Vibration End Mount and Slide Mounts: Precise beam direction and vibration-resistant installation.
IP67 Water and Dust Proof: Full protection against dust and temporary immersion.
Multi-Volt 10-30V DC with Electronic Protection: Compatible with 12V and 24V systems.
2-Pin Deutsch Plug: Secure, weatherproof connection.
7-Year Warranty: Backed by a 7-year Roadvision warranty.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | RBL5220C |
| Brand | Roadvision |
| Series | DC2 |
| Description | DC2 Series 22" Bar 40 LED |
| Beam Type | Combo Beam |
| Lumen Output | 10800lm |
| Lux at 10m | 1549lx |
| Beam Distance at 1 Lux | 394m |
| Beam Distance at 0.5 Lux | 787m |
| Total Watts | 120W |
| LED Quantity | 40 x 3W Osram Hi-Lux |
| Input Voltage | 10-30V DC |
| Current Draw | 6.7A at 13.8V |
| Bar Length | 22" (563mm) |

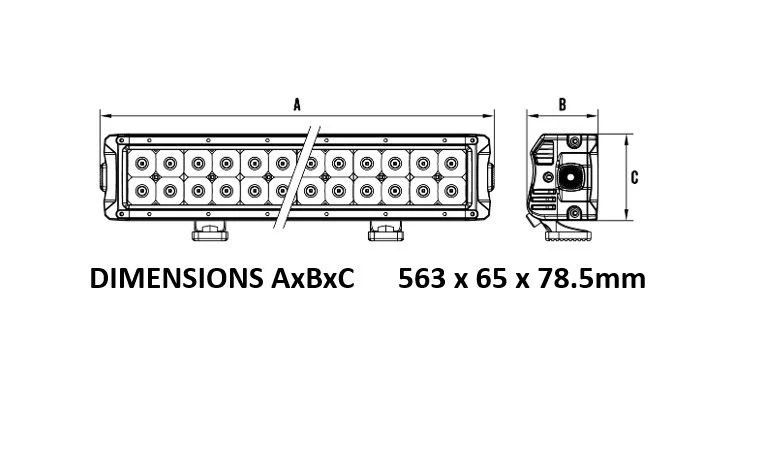

| Dimensions | 563mm x 65mm x 78.5mm |
| Wiring | 2-Pin Deutsch Plug |
| IP Rating | IP67 |
| LED Lifespan | 50,000 Hours |
| Protection | Over/Under Voltage, Reverse Polarity, Soft Start |
| EMI/EMC | Radio Interference Approved |
| Mounts | 9-Position Anti-Vibration End Mount and Slide Mounts |
| Warranty | 7 Years |
Compatible With
The RBL5220C is compatible with 10-30V DC vehicle electrical systems. The DC2 Series is available in 8" (RBL5080C), 14" (RBL5140C), 32" (RBL5320C), 42" (RBL5420C), and 50" (RBL5500C) lengths.
Frequently Asked Questions
Is the RBL5220C compatible with 24V vehicles?
Yes. The RBL5220C operates across 10-30V DC.
What connector does the RBL5220C use?
2-pin Deutsch plug.
What is the IP rating of the RBL5220C?
IP67.
How does the 22" compare to other DC2 lengths?
The RBL5220C delivers 10800lm at 120W. For lower output see RBL5080C and RBL5140C; for higher output see RBL5320C, RBL5420C, and RBL5500C.
What mounting system is included?
The 9-position adjustable anti-vibration end mount system and low-profile slide mounts are included.
