Roadvision RWL1110F LED Work Light 6W Flood Beam 950lm IP69K
Roadvision RWL1110F LED Work and Rock Light 6W Flood Beam 950lm
A compact 6W flood beam LED work and rock light from Roadvision, the RWL1110F delivers 950 lumens with IP69K protection and 10-30V DC multi-volt input, suited to underbody, off-road, and tight-space work lighting applications.
Product Overview

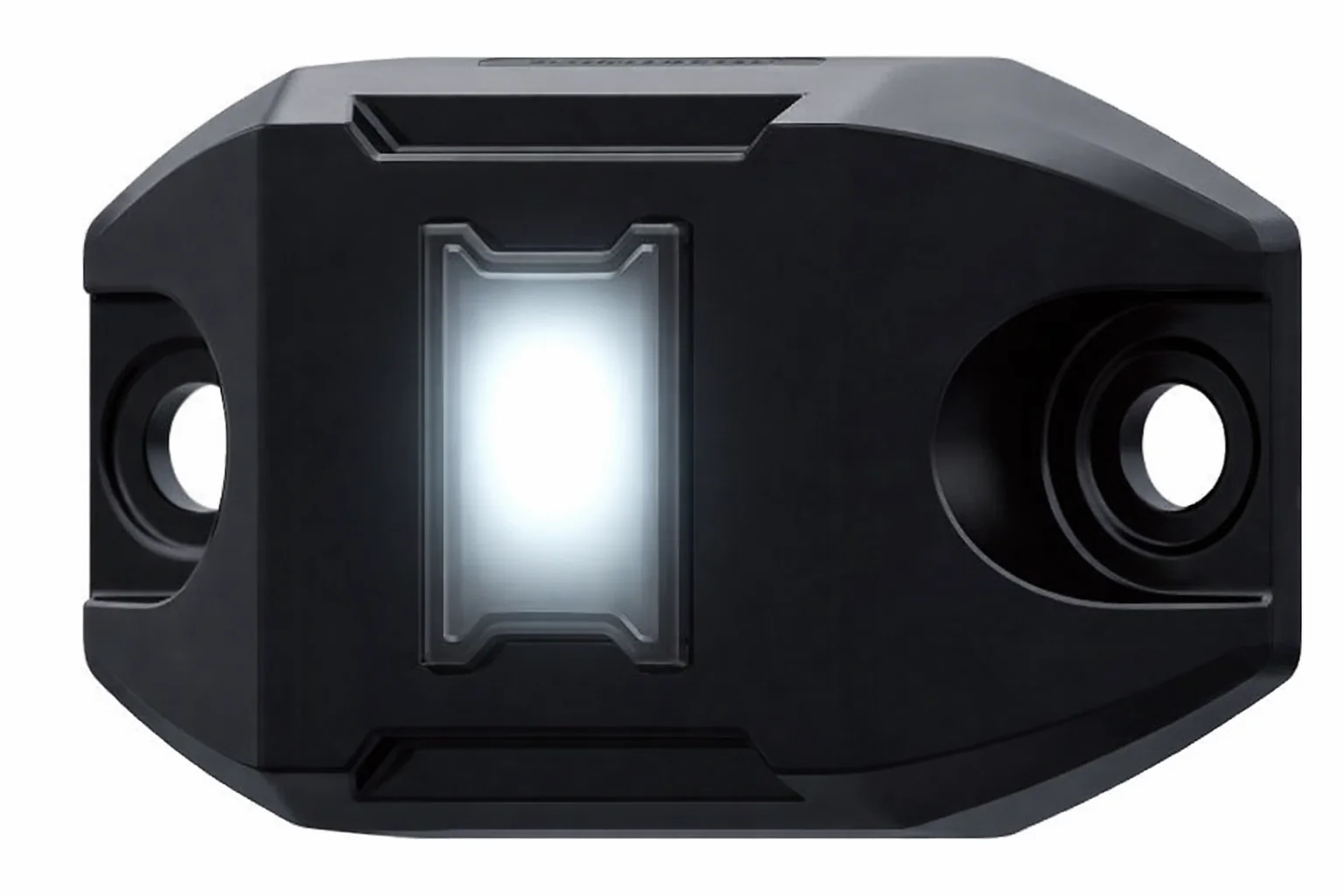

The Roadvision RWL1110F is a compact LED work and rock light delivering 950 lumens in a flood beam pattern at 6W. IP69K rated for full protection against dust and high-pressure, high-temperature water jet exposure, making it suited to underbody, rock light, and exposed exterior work lighting positions on 4WDs, trucks, and off-road vehicles. Multi-volt 10-30V DC input is compatible with 12V and 24V vehicle electrical systems. Die-cast aluminium housing with polycarbonate lens provides durable, lightweight construction for demanding installation environments.
Features & Benefits
950 Lumens Flood Beam at 6W: The RWL1110F delivers 950 lumens in a wide-angle flood beam pattern at 6W for effective area illumination in compact underbody and rock light mounting positions.
IP69K Protection - High-Pressure Wash-Down Rated: IP69K confirms full protection against dust and high-pressure, high-temperature water jet exposure at close range, providing maximum durability for underbody and exposed exterior mounting positions.
Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle and equipment electrical systems.
Die-Cast Aluminium Housing with Polycarbonate Lens: Lightweight, tough construction for demanding off-road and work lighting applications.
Compact Design for Tight-Space Applications: Designed for applications where space is limited, including underbody rock light positions, bull bars, and confined machinery mounting locations.
Solid-State LED Technology: Maintenance-free reliability with solid-state LED construction.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | RWL1110F |
| Brand | Roadvision |
| Beam Type | Flood Beam |
| Lumen Output | 950lm |
| Total Watts | 6W |
| Input Voltage | 10-30V DC |
| IP Rating | IP69K |
| Lens Construction | Polycarbonate |
| Housing Construction | Die-Cast Aluminium |
Compatible With
The RWL1110F is compatible with 10-30V DC vehicle and equipment electrical systems including 12V and 24V platforms. IP69K rated for underbody and exposed exterior mounting.
Frequently Asked Questions
What beam pattern does the RWL1110F use?
The RWL1110F uses a flood beam pattern, delivering 950 lumens of wide-angle illumination suited to area coverage in underbody and tight-space work lighting applications.
Is the RWL1110F suitable for underbody rock light installation?
Yes. The IP69K rating confirms full protection against high-pressure, high-temperature water jet exposure, making it well suited to underbody rock light mounting positions on 4WDs and off-road vehicles.
Is the RWL1110F compatible with 24V vehicles?
Yes. The RWL1110F operates across 10-30V DC, compatible with both 12V and 24V electrical systems.
How does the RWL1110F compare to the RWL1109F?
The RWL1109F is the previous generation model rated at 4.5W and 302 lumens with IP67 protection. The RWL1110F delivers 950 lumens at 6W with IP69K protection, providing a significant improvement in output and water resistance.
What applications is the RWL1110F suited to?
The RWL1110F is suited to underbody rock light positions, work lighting in tight-space applications, bull bar and A-pillar mounting on 4WDs and off-road vehicles, and exposed exterior work lighting on trucks and agricultural equipment where IP69K protection is required.
