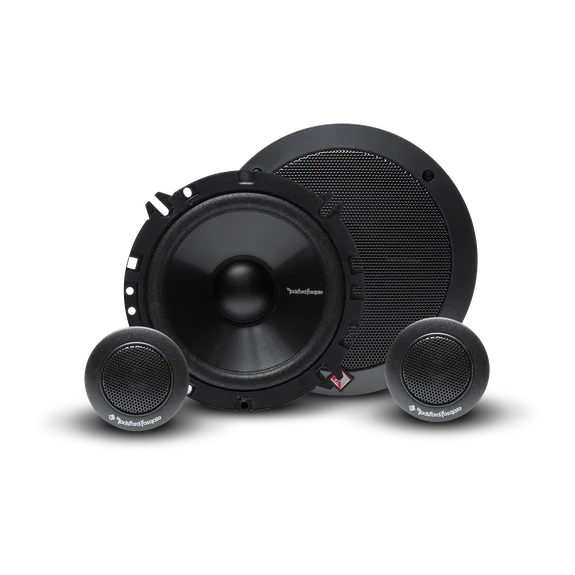

Rockford Fosgate R16-S Prime 6" Component System

6" 2-Way Component System Mica-Injected Cone, Mylar Dome Tweeter, In-Line Crossover, and Three Tweeter Mounting Options. 40W RMS.

---

Product Overview

The Rockford Fosgate Prime R16-S is a 6" 2-way component speaker system rated at 40W RMS sharing the same Mica-injected polypropylene cone, Mylar® dome tweeter, in-line crossover, and three-way tweeter mounting kit construction as the R152-S (5.25"), scaled to the 6" woofer format. Kit includes two woofers with grilles, two tweeters with in-line crossovers, and all mounting hardware.

The 6" woofer format provides a larger cone area than the 5.25" R152-S delivering improved low-frequency extension and output while maintaining the same dedicated component configuration that separates the tweeter from the woofer for independent positioning and superior soundstage imaging over a coaxial design.

---

Key Specifications

• Woofer size: 6 inch
• Configuration: 2-way component (separate woofer + tweeter)
• Power handling (RMS): 40W per woofer (confirmed)
• Peak power: Not specified — confirm with Rockford Fosgate
• Impedance: Not specified — confirm with Rockford Fosgate
• Sensitivity: Not specified — confirm with Rockford Fosgate
• Frequency response: Not specified — confirm with Rockford Fosgate

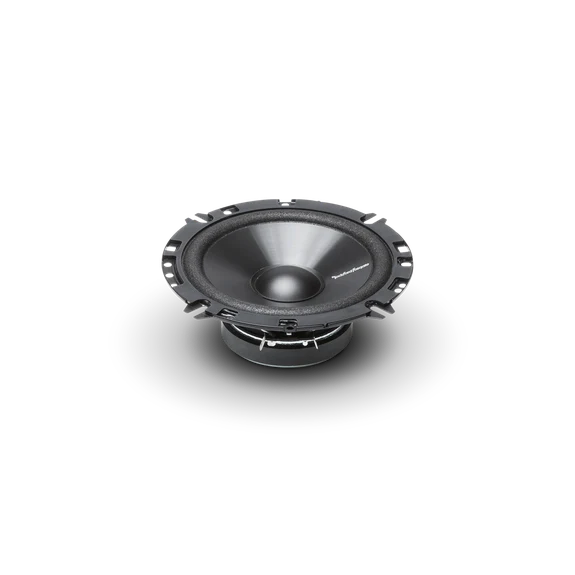

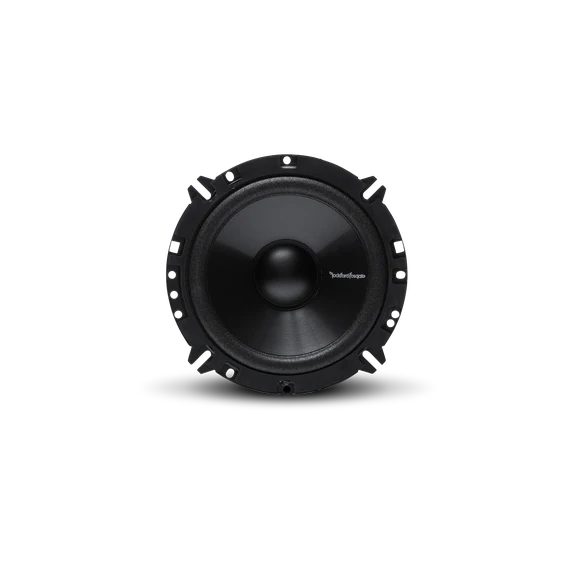

• Woofer cone: Mica-injected polypropylene
• Woofer surround: Foam

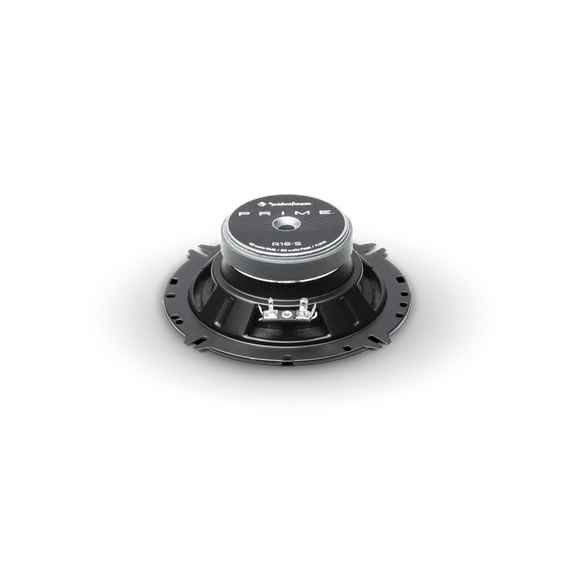

• Basket: Stamped steel
• Tweeter: 1/2" (13mm) Mylar® balanced dome
• Crossover: In-line (integrated per tweeter, included)
• Tweeter mounting: Flush, surface, and angle options

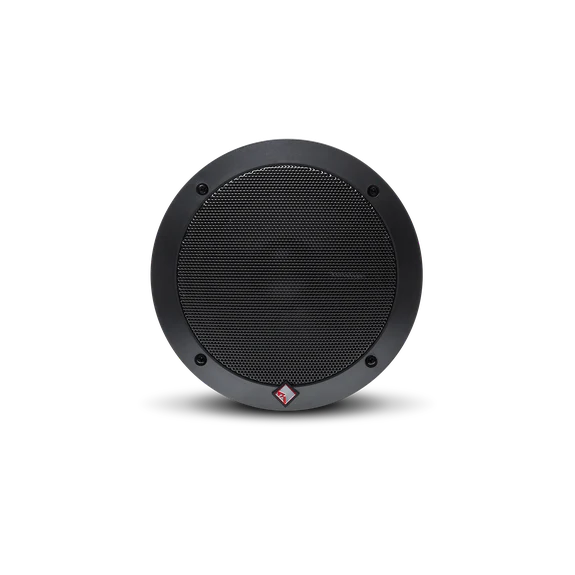

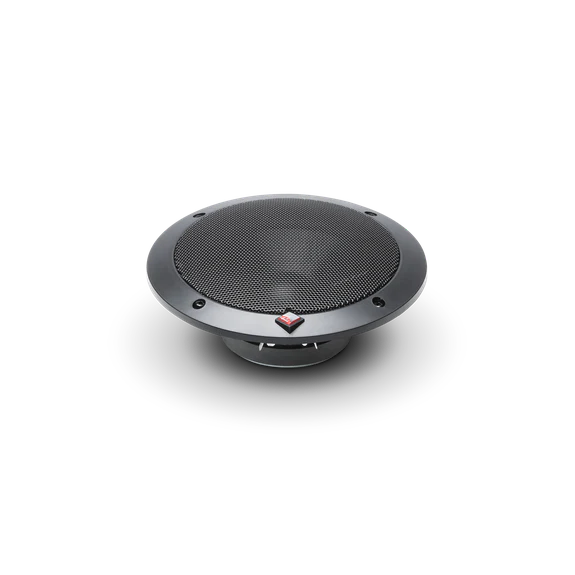

• Grilles: Included (with woofers) ✓
• Mounting hardware: Included ✓

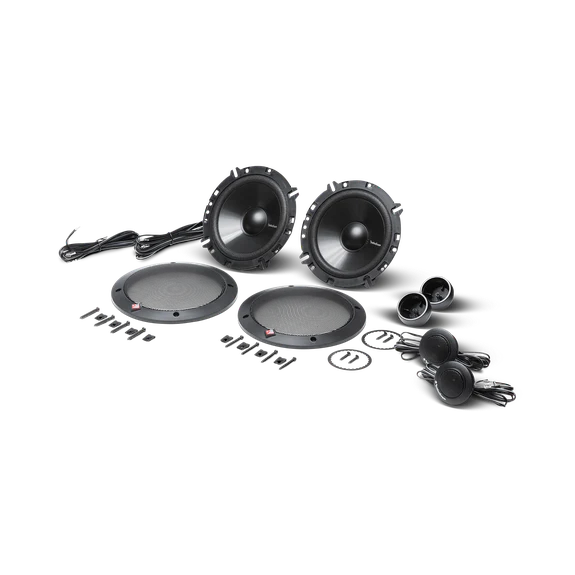

• Kit contents: 2 woofers + 2 tweeters + 2 crossovers + grilles + hardware
• Mounting depth: Not specified — confirm with Rockford Fosgate
• Cutout diameter: Not specified — confirm with Rockford Fosgate
• Weight: Not specified — confirm with Rockford Fosgate
• Warranty: Not specified — confirm with Rockford Fosgate

---

Features & Benefits

• 6" Woofer — More Bass Extension Than 5.25" — The 6" cone moves more air than the 5.25" R152-S, improving low-frequency output and extension — useful in front door installations where low-frequency reproduction from the door woofers is a priority before a subwoofer takes over.
• Mica-Injected Polypropylene Cone — Mica particles added to the polypropylene compound increase cone stiffness without significant weight increase — reducing distortion under dynamic load for more accurate midrange and bass reproduction versus standard polypropylene. A meaningful material step up over the coaxial full-range Prime speakers.

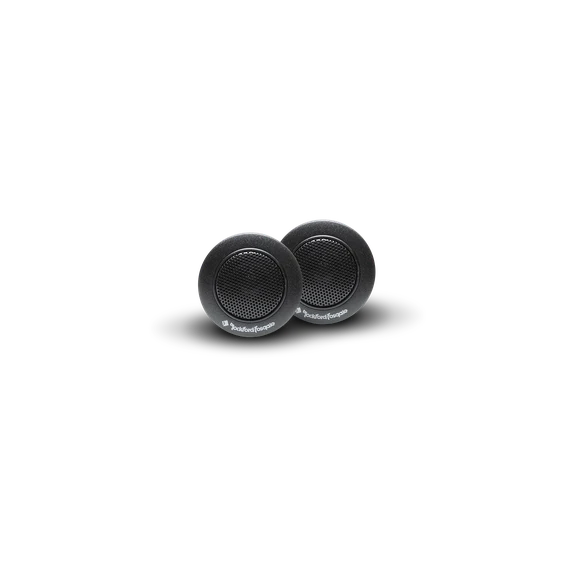

• 1/2" (13mm) Mylar® Dome Tweeter — Lightweight, high-sensitivity balanced dome tweeter for detailed, extended high-frequency reproduction with a bright, forward character consistent across the Prime component range.
• In-Line Crossover — Crossover integrated into the tweeter cable for simplified installation — no crossover box mounting required. Handles high-pass filtering to the tweeter.
• Three Tweeter Mounting Configurations — Flush, surface, and angle hardware included per tweeter — accommodating a wide range of installation positions without additional hardware.
• Complete Kit — Two woofers, two tweeters, two crossovers, grilles, and all mounting hardware in a single purchase — a ready-to-install front component system for both channels.
• Foam Surround Note — The R16-S uses a foam surround rather than the rubber surround found on the coaxial Prime speakers. Foam can be more susceptible to degradation in extreme heat over extended periods. Confirm expected surround lifespan with Rockford Fosgate for Australian climate longevity.

---

Technical Specs

---

Compatible With / Goes Well With

Suitable installation:

• 6" front door speaker positions requiring a component system upgrade
• OEM installation in factory 6" speaker locations

Prime component system comparison:

Pairs well with:

• Rockford Fosgate T400-4, T600-4, or T1000-4AD 4-channel amplifiers
• Rockford Fosgate mono subwoofer amplifiers + subwoofer for full-range system extension

---

Frequently Asked Questions

What is included in the R16-S kit?

The kit includes two 6" woofers with grilles, two 1/2" Mylar dome tweeters, two in-line crossovers, and all mounting hardware — everything needed for a complete 2-channel front component speaker installation.

How does the R16-S differ from the R152-S?

Both are Prime series component systems with identical construction — Mica-injected polypropylene cone, foam surround, Mylar dome tweeter, in-line crossover. The R16-S uses a 6" woofer versus the R152-S's 5.25", providing a larger cone area for improved low-frequency output. Select based on which size fits your vehicle's front door speaker positions.

What is the benefit of a component system over a coaxial speaker?

A component system separates the woofer and tweeter — the woofer mounts in the standard door position while the tweeter is positioned independently at ear level on the A-pillar, dash, or door mirror triangle. Independent tweeter placement improves soundstage, imaging, and the perception of instrument placement compared to a coaxial design where both drivers share a single mounting point.

Does the foam surround affect long-term reliability?

Foam surrounds are effective for acoustic performance but can be more susceptible to degradation from heat and UV exposure over many years compared to rubber surrounds. For most Australian installations over a standard ownership period this is not a practical concern. Confirm expected durability with Rockford Fosgate if very long-term surround integrity is a priority.

What crossover is included and how is it installed?

An in-line crossover is included for each tweeter — it integrates directly into the tweeter's wiring run rather than requiring a separate box to be mounted inside the door or cabin. Crossover point and slope specifications are not confirmed in the supplier data — pull the official Rockford Fosgate R16-S datasheet for these details.
