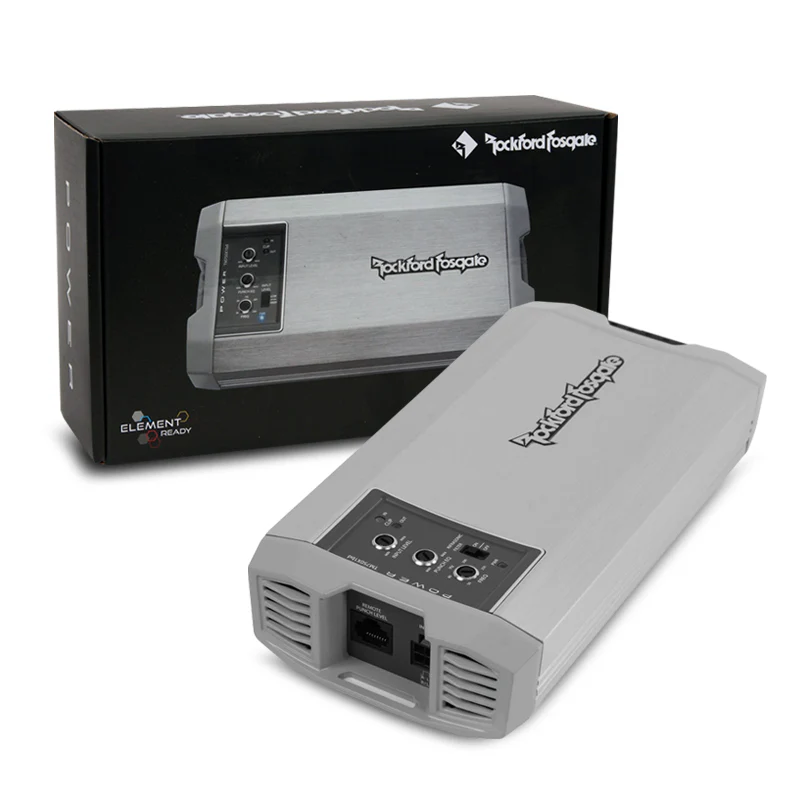

Rockford Fosgate TM750X1bd Power Marine 750 Watt Class-bd 1-Channel Amplifier

Power Marine 750W RMS Class-bd 1-Channel Amplifier 1-Ohm Stable, C.L.E.A.N., Punch EQ, Differential Inputs, Dual Fan, Two-Part Marine Epoxy Coating, CEA-2006 Compliant.

---

Product Overview

The Rockford Fosgate TM750X1bd is a 750W RMS, 1-Ohm stable mono amplifier built on the patented Class bd technology platform designed for Element Ready marine and outdoor installations. Class bd combines Class D efficiency (reduced electrical load on the vehicle's charging system) with Class B topology (maintained audio fidelity) the result is Rockford Fosgate's Constant Power technology, which delivers up to 25% additional output power over a standard design.

Marine-grade two-part epoxy coating on the circuit boards protects against moisture, humidity, and element exposure. C.L.E.A.N. clip detection (input and output), top-mounted controls, integrated LPF, Punch EQ, and dual fan cooling with real-time thermal monitoring round out the feature set. High and low level inputs via Molex-style configurable harness; auto turn-on via speaker-level input; remote out function when using high-level inputs.

---

Key Specifications

---

Features & Benefits

• Class bd — 750W RMS, 1-Ohm Stable — Class bd is Rockford Fosgate's patented design combining Class D switching efficiency with Class B linear topology — delivering 750W RMS at 1-Ohm with the audio fidelity of a linear design and the efficiency of a switching design.
• Constant Power Technology — Up to 25% more output power than standard Class D designs through Rockford Fosgate's proprietary low-impedance constant power circuit.
• C.L.E.A.N. Clip Detection — Separate input and output clip LEDs for precise gain setting — preventing distortion at both the input gain stage and output stage simultaneously.
• Differential Inputs with High/Low Level — The Molex-style input harness accepts both RCA (line-level) and speaker-level signals. The differential input circuit rejects common-mode noise from the input signal path — effective at eliminating alternator whine and ignition noise introduced via long signal runs.
• Auto Turn-On + Remote Out via High Level Input — When connected to speaker-level inputs, the amplifier detects signal and turns on automatically — eliminating the need for a separate remote turn-on wire from the head unit. The remote input terminal switches to an output that can trigger additional amplifiers.
• Integrated LPF and Punch EQ — Low pass crossover and Punch EQ boost accessible from the top-mounted control panel — no need to access the side or rear of the amplifier once installed.
• Marine-Grade Two-Part Epoxy Circuit Board Coating — Conformal epoxy coating protects all circuit board traces, components, and solder joints from moisture, salt air, and humidity — appropriate for marine and outdoor installations.
• Dual Fan Forced Induction + Dual Heat Sinks — Active and passive cooling combined with real-time thermal monitoring and a 3-stage thermal lock extrusion system — maintaining safe operating temperatures at full output.
• 8 AWG Spring Compression Terminals — Secure, tool-free wiring connection at 8 AWG — consistent with the RFK8 installation kit gauge.
• PLC2 Remote Level Control Compatible — Optional wired bass level remote for cabin-accessible volume adjustment.

---

Technical Specs

---

Frequently Asked Questions

What is Class bd? Class bd is Rockford Fosgate's patented amplifier topology combining Class D (switching) efficiency with Class B (linear) fidelity. Class D delivers the switching efficiency — reducing current draw on the vehicle's electrical system. Class B topology maintains audio linearity — avoiding the crossover distortion common in pure Class D designs. The result is an amplifier that runs cooler and draws less current than a Class AB design while maintaining comparable audio quality.

What is C.L.E.A.N.? C.L.E.A.N. (Circuit Level Evaluation And Navigation) is Rockford Fosgate's clip detection system with separate input and output LED indicators. The LEDs indicate when the input gain is set correctly (no clipping at the input) and when the output stage is approaching clip (no distortion at the output). This allows precise gain setting without requiring external test equipment.

How does the auto turn-on work? When the amplifier is connected to speaker-level inputs (rather than RCA), the differential input circuit detects the presence of an audio signal and triggers the amplifier's power-on relay automatically — eliminating the requirement for a separate remote turn-on wire from the head unit.

What is "Element Ready"? Element Ready is Rockford Fosgate's marine and outdoor product designation — indicating the amplifier is built to withstand exposure to moisture, humidity, and UV typical of marine and outdoor audio installations. The marine-grade two-part epoxy conformal coating on the circuit boards is the key protection feature.

What subwoofers pair well with the TM750X1bd? Any 1-Ohm stable subwoofer rated at approximately 750W RMS. Confirm the wiring configuration (SVC 1-Ohm, or DVC wired to 1-Ohm parallel) and RMS power rating before purchasing.
