Stinger BKHY046 Black Double DIN Fascia Kit To Suit Hyundai iLoad/iMax 2008-2016
Stinger BKHY046 Double DIN Radio Fascia Kit for Hyundai iLoad/iMax TQ (2008–2016)

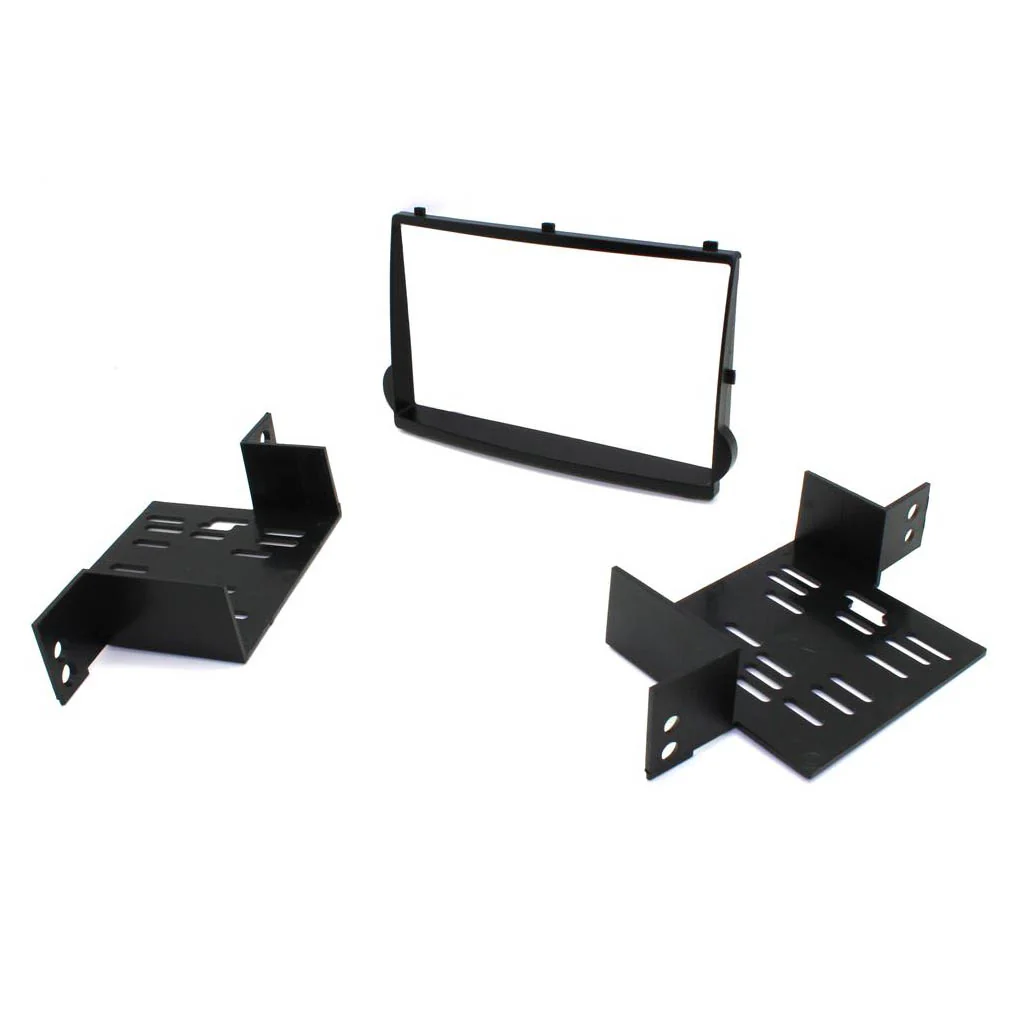

A vehicle-specific double DIN radio fascia kit for the Hyundai iLoad and iMax TQ (2008–2016) black finish with mounting brackets included. Suits non-navigation models only.
Product Overview
The Stinger BKHY046 is a vehicle-specific double DIN radio fascia kit for the Hyundai iLoad (incl. iMax) TQ series (2008–2016). It provides the dash framework and mounting brackets required to install an aftermarket 2DIN head unit into the factory radio location while retaining a neat, factory-matched appearance.
This kit suits non-navigation Hyundai iLoad/iMax TQ models only. Vehicles with factory navigation use a different dash configuration and are not compatible with this kit.
The black finish is matched to the iLoad/iMax TQ interior trim.
Features & Benefits
- Vehicle-specific fit for Hyundai iLoad (incl. iMax) TQ 2008–2016
- Allows installation of aftermarket double DIN head units
- Suits non-navigation models only
- Retains neat, factory dash appearance
- Mounting brackets included
- Black finish matched to factory interior trim
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Number | BKHY046 |
| Brand | Stinger |
| Colour / Finish | Black |
| Radio Size Compatibility | Double DIN (2DIN) |
| Mounting Brackets Included | Yes |
| Vehicle Notes | Non-navigation models only |
| Antenna Adaptor Included | Not included |
| Wiring Harness Included | Not included |
| SWC Interface Included | Not included |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Hyundai iLoad (incl. iMax) 2008–2016 (TQ) — non-navigation models only
Goes Well With:
- Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC, Stinger)
- Vehicle-specific ISO wiring harness for Hyundai iLoad/iMax TQ
- Stinger STBAA40 antenna adaptor (for Hyundai iLoad/iMax 2008–2016)
- Steering wheel control interface for Hyundai iLoad/iMax TQ (if applicable)
Frequently Asked Questions
Does this kit suit navigation-equipped Hyundai iLoad/iMax TQ models?
No. The BKHY046 is designed for non-navigation iLoad/iMax TQ models only. Navigation-equipped variants use a different factory dash configuration — contact the F.A.E. team for the correct option if your iLoad or iMax has factory navigation.
Does this kit cover both the iLoad and iMax?
Yes. The BKHY046 covers the Hyundai iLoad and the iMax variant across the TQ series (2008–2016).
Is a wiring harness included?
No. The BKHY046 is a fascia and bracket kit only. A vehicle-specific ISO wiring harness will need to be sourced separately to connect your aftermarket head unit to the factory wiring.
Are mounting brackets included?
Yes. The BKHY046 includes mounting brackets for securing the aftermarket head unit in the factory dash opening.
Is an antenna adaptor included?
No. An antenna adaptor is not included. See the Stinger STBAA40 for a compatible Hyundai iLoad/iMax TQ antenna adaptor.
