Stinger HR9-FD002 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Ford Ranger 2015-2019 Vehicles

PX2 Ranger Audio Upgrade Done Right 9" Pioneer Fitment, SWC, Camera and USB All Sorted

Product Overview

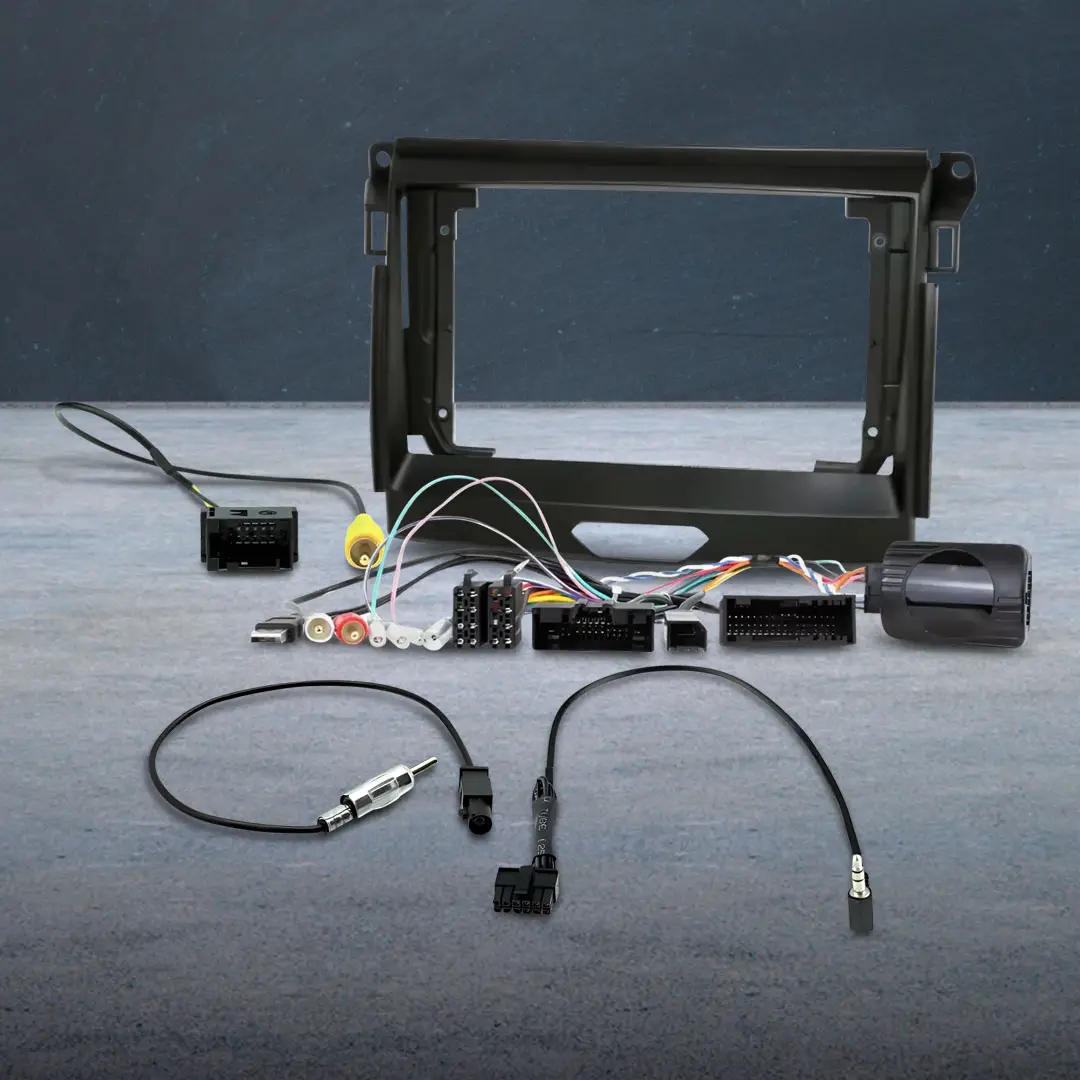

The Stinger HR9-FD002 is a purpose-built radio replacement kit designed for installing the Pioneer DMH-AP6650BT 9" head unit into 2015–2019 Ford Ranger PX2 models fitted with the factory 4.3" screen and CD mechanism. This complete bundle provides a flush-fit 9" fascia, plug-and-play wiring harness, steering wheel control interface, antenna adaptor, USB retention, and reverse camera retention all matched and engineered for the PX2 Ranger's dash and factory wiring.

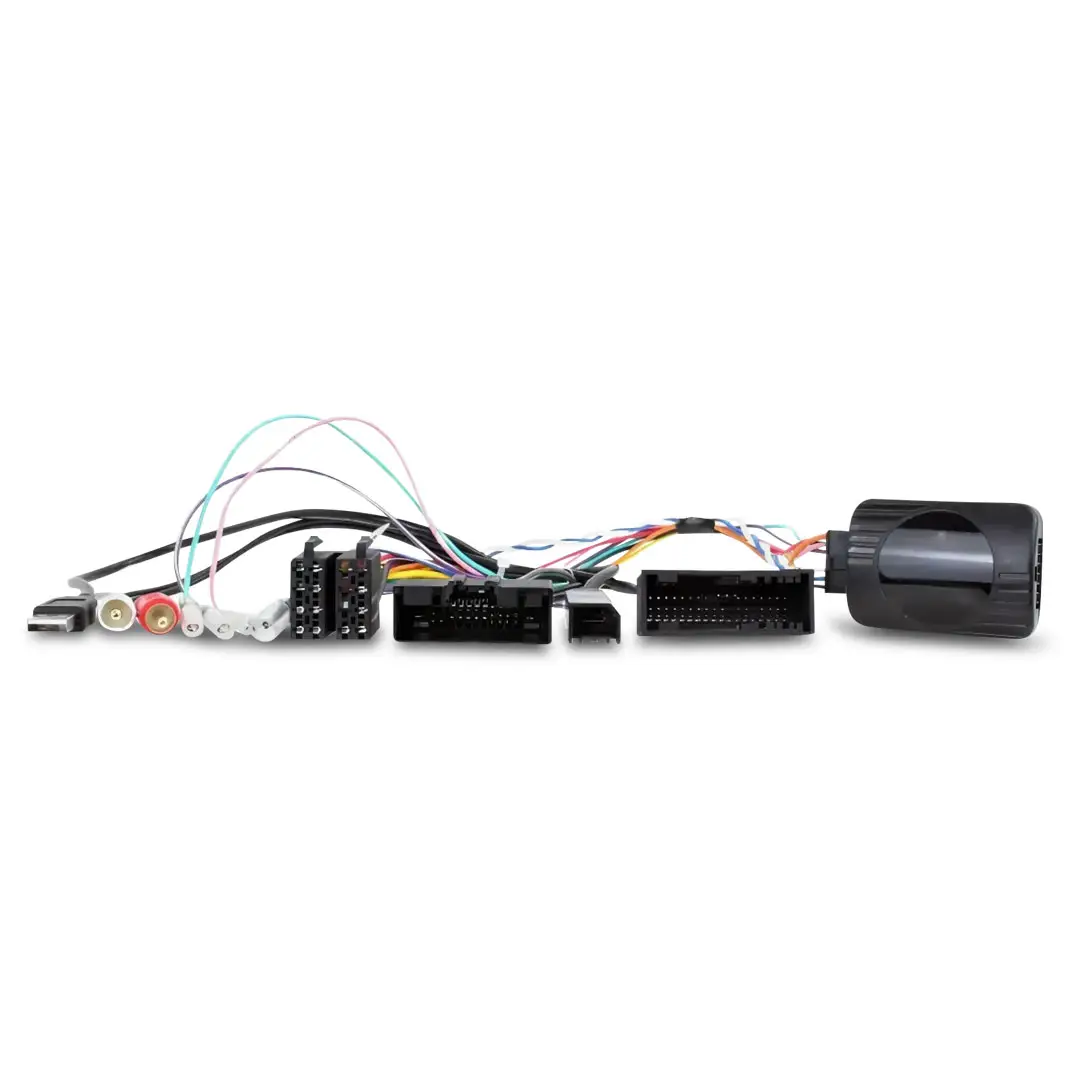

The HR9-FD002's SWC interface delivers a full suite of navigation outputs reverse, park, ignition, illumination, and VSS enabling proper head unit integration without additional wiring. The interface also retains its programming through battery disconnection. Please note: this kit is not compatible with PX2 Ranger models fitted with the factory 8" screen. The Pioneer DMH-AP6650BT head unit is not included.

---

Key Specifications

• Manufacturer Part Number: HR9-FD002
• Compatible head unit: Pioneer DMH-AP6650BT (9" display)
• Vehicle compatibility: Ford Ranger PX2 2015–2019 — factory 4.3" screen with CD mechanism only
• Not compatible with: Ford Ranger models fitted with factory 8" screen
• Factory connector type: Not specified — confirm before purchase
• Output connector type: Standard ISO connector
• Steering wheel audio control retention: Yes (select aftermarket radios)
• SWC memory retention: Yes — retained on power loss
• Navigation outputs: Yes — reverse, park, ignition, illumination, VSS
• Reverse camera retention: Yes — reverse camera only
• USB retention: Yes — USB only (no AUX)
• Antenna adaptor: Included
• Colour: Black
• Plug & Play: Yes

---

Features & Benefits

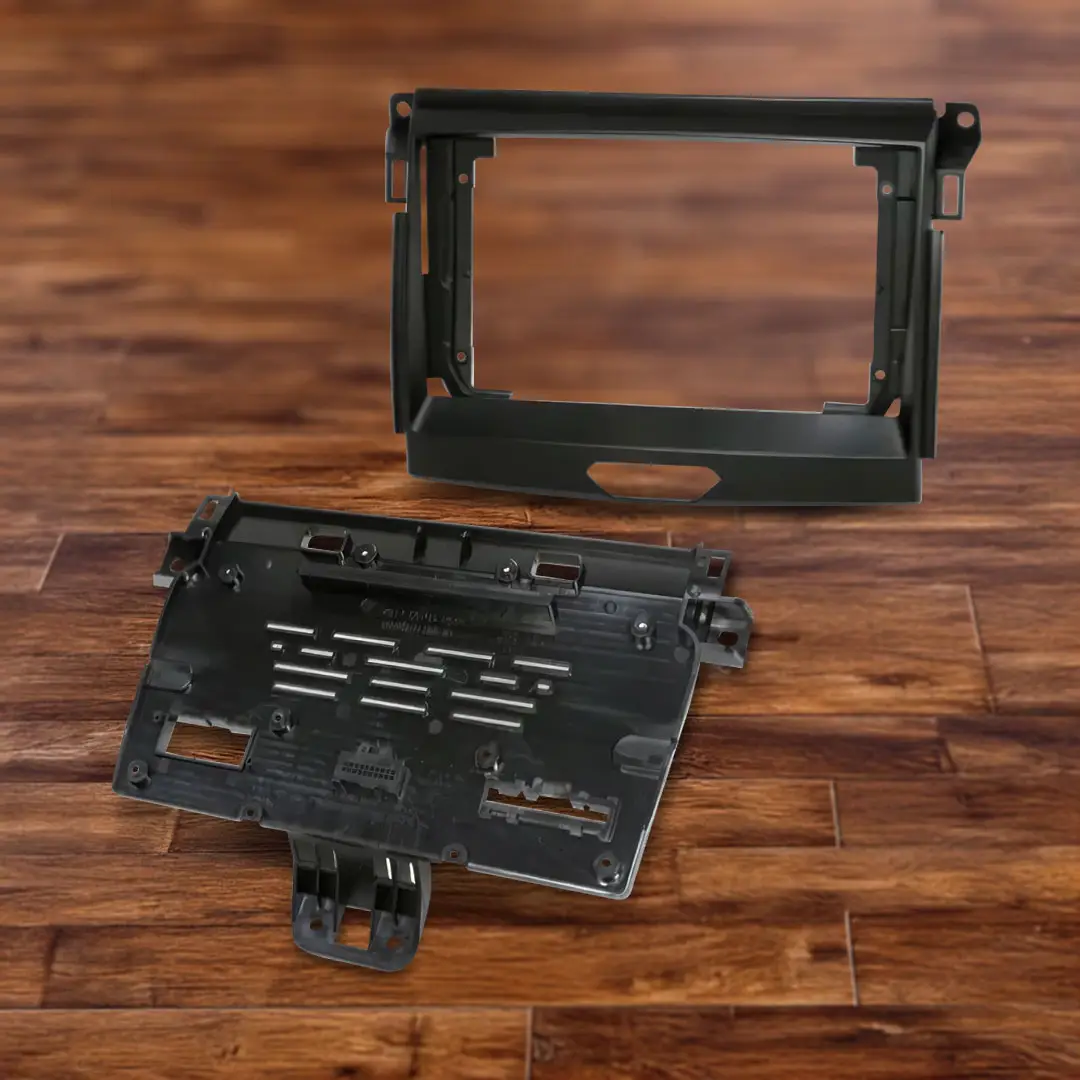

• 9" Flush Fit Radio Panel — Purpose-moulded for the PX2 Ranger's dash, delivering a factory-finish result around the larger 9" Pioneer screen with no gaps and no generic trims on show.
• Steering Wheel Audio Control Retention — Keeps factory steering wheel audio buttons active through the included interface with compatible aftermarket radios. Memory is retained even when battery power is lost, so flat batteries and workshop visits won't reset your setup.
• Full Navigation Outputs — The SWC interface provides reverse, park, ignition, illumination, and VSS signal outputs to the head unit — enabling full navigation and safety feature integration without additional wiring runs.
• Reverse Camera Retention — Passes the factory reverse camera signal through to the Pioneer head unit, maintaining reverse camera functionality after installation.
• USB Retention — Factory USB port is retained via the included harness, keeping factory USB connectivity functional with the new head unit. AUX is not retained.

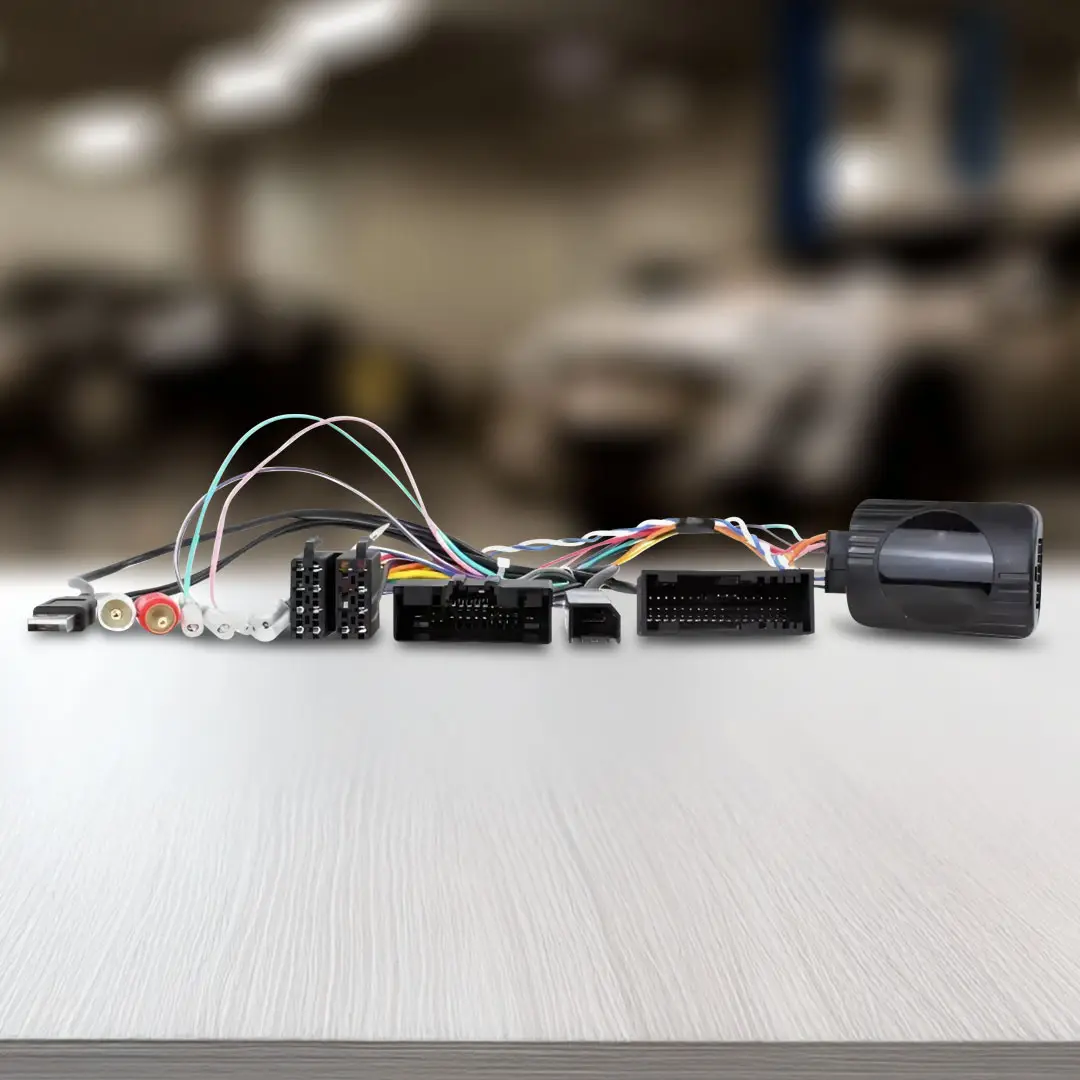

• Plug & Play Harness — Connects directly to the PX2 Ranger's factory connector and converts to standard ISO — no splicing, no soldering, fully reversible.

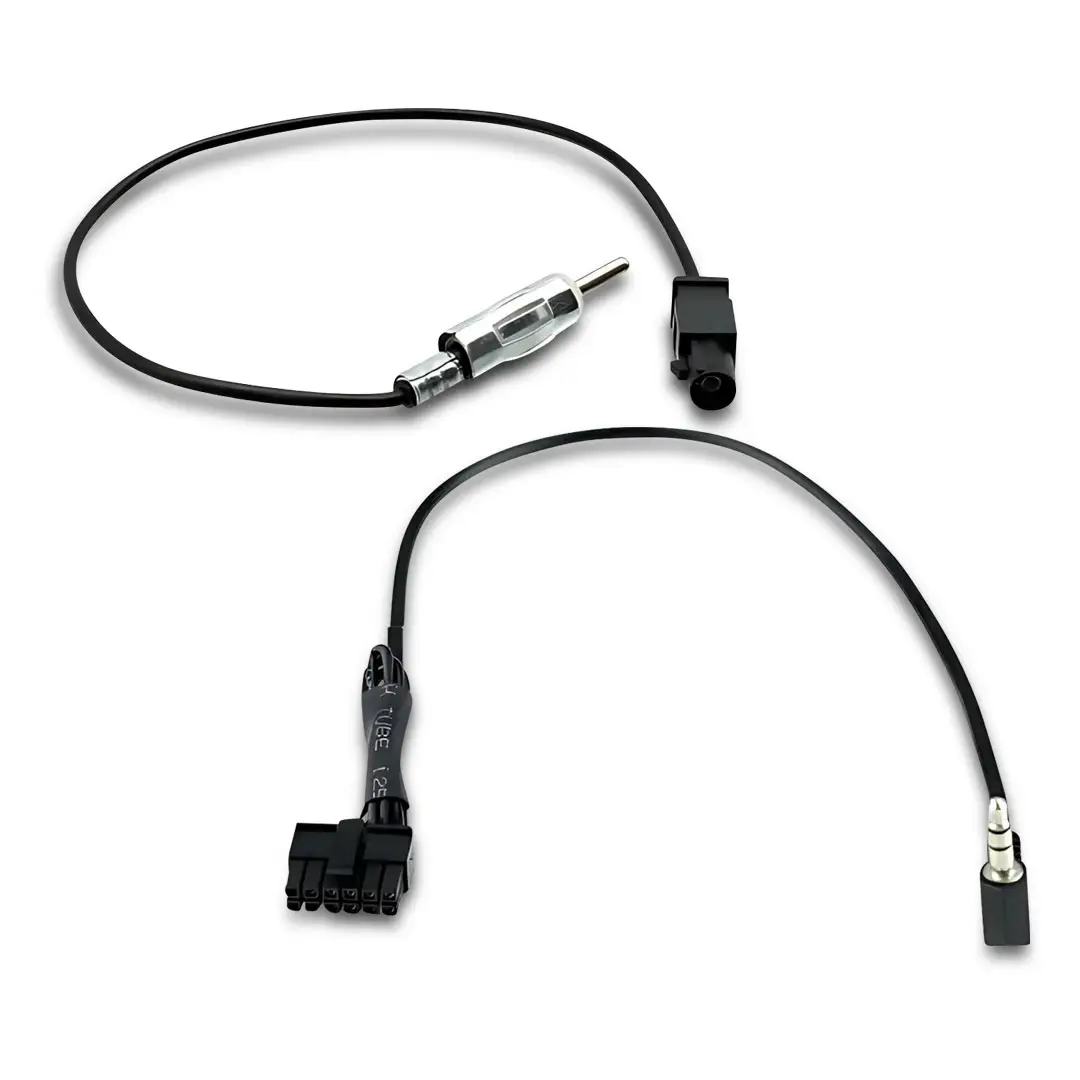

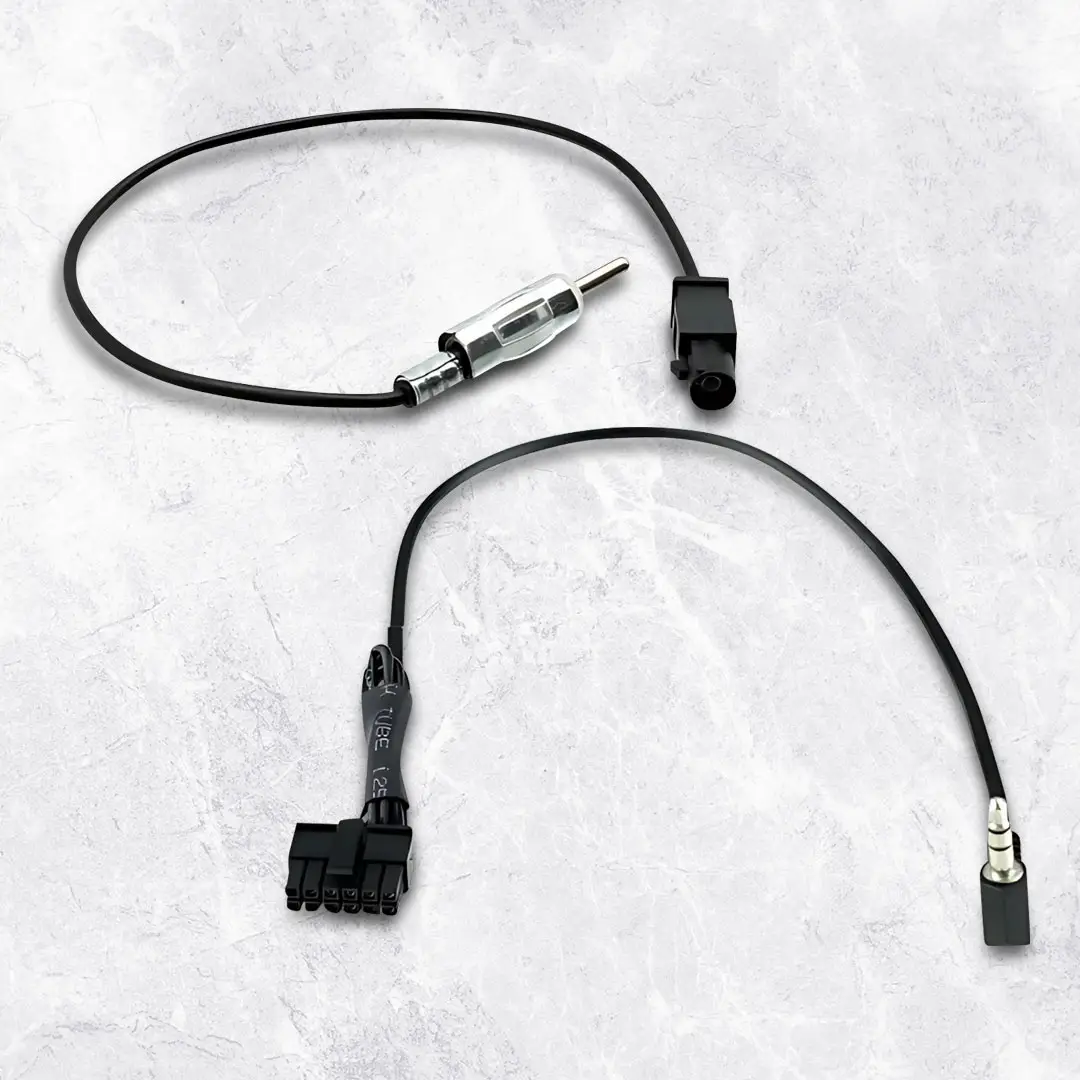

• Antenna Adaptor Included — Factory antenna connection is retained via the included adaptor, maintaining FM/AM reception with no additional parts needed.

---

Technical Specs

---

Compatible With / Goes Well With

• Ford Ranger PX2 2015, 2016, 2017, 2018, 2019 — factory 4.3" screen with CD mechanism
• Pioneer DMH-AP6650BT 9" Digital Media Receiver (head unit not included)
• Factory Ford Ranger steering wheel audio controls (retained via included interface)
• Factory Ford Ranger reverse camera (retained via included interface)
• Factory Ford Ranger USB port (retained via included harness)

Caution: This kit is not compatible with PX2 Ranger models fitted with the factory 8" screen — confirm your vehicle's factory screen size before purchase. AUX retention is not included — USB only. Always verify compatibility with your specific Ranger variant before installation.

---

Frequently Asked Questions

Does the HR9-FD002 include the Pioneer DMH-AP6650BT head unit?

No — the Pioneer DMH-AP6650BT is sold separately. The HR9-FD002 is an installation kit providing the fascia, wiring harness, SWC interface, antenna adaptor, USB retention, and reverse camera retention needed to fit that head unit into compatible PX2 Ranger models.

How do I know if my Ranger is compatible with this kit?

This kit suits 2015–2019 Ford Ranger PX2 models fitted with the factory 4.3" screen and CD mechanism. It is not compatible with models that came with the factory 8" screen. Check your vehicle's current factory screen size to confirm.

Will this kit retain my factory steering wheel controls and reverse camera?

Yes to both. The SWC interface retains audio button functions with compatible aftermarket radios, and the reverse camera retention interface passes the factory camera signal through to the Pioneer head unit. SWC memory is retained even if battery power is lost.

What navigation outputs does this kit provide?

The SWC interface provides reverse, park, ignition, illumination, and VSS signal outputs — a full suite of navigation and safety outputs for the Pioneer head unit without additional wiring.

Is factory USB retained, and what about AUX?

USB is retained via the included harness, keeping the factory USB port functional with the Pioneer head unit. AUX retention is not included with this kit.
