Stinger HR9-HY002 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Hyundai Tucson 2015-2018

Clean 9" Fitment for Your Tucson SWC, Reverse Camera and Nav Outputs All Sorted

Product Overview

The Stinger HR9-HY002 is a purpose-built radio replacement kit designed for installing the Pioneer DMH-AP6650BT 9" head unit into 2015–2018 Hyundai Tucson models. This complete bundle provides a flush-fit 9" fascia, plug-and-play wiring harness, steering wheel control interface, antenna adaptor, and reverse camera retention all matched and engineered for the Tucson's dash and factory wiring.

The HR9-HY002's SWC interface goes beyond basic audio button retention, also delivering navigation outputs including park, ignition, and VSS signals to the head unit for proper safety and navigation feature integration. The interface retains its programming even if battery power is lost. Please note: the Pioneer DMH-AP6650BT head unit is not included.

---

Key Specifications

• Manufacturer Part Number: HR9-HY002
• Compatible head unit: Pioneer DMH-AP6650BT (9" display)
• Vehicle compatibility: Hyundai Tucson 2015–2018
• Factory connector type: Not specified — confirm before purchase
• Output connector type: Standard ISO connector
• Steering wheel audio control retention: Yes (select aftermarket radios)
• SWC memory retention: Yes — retained on power loss
• Navigation outputs: Yes — park, ignition, VSS
• Reverse camera retention: Yes — included
• Antenna adaptor: Included
• AUX/USB retention: Not specified
• Colour: Black
• Plug & Play: Yes

---

Features & Benefits

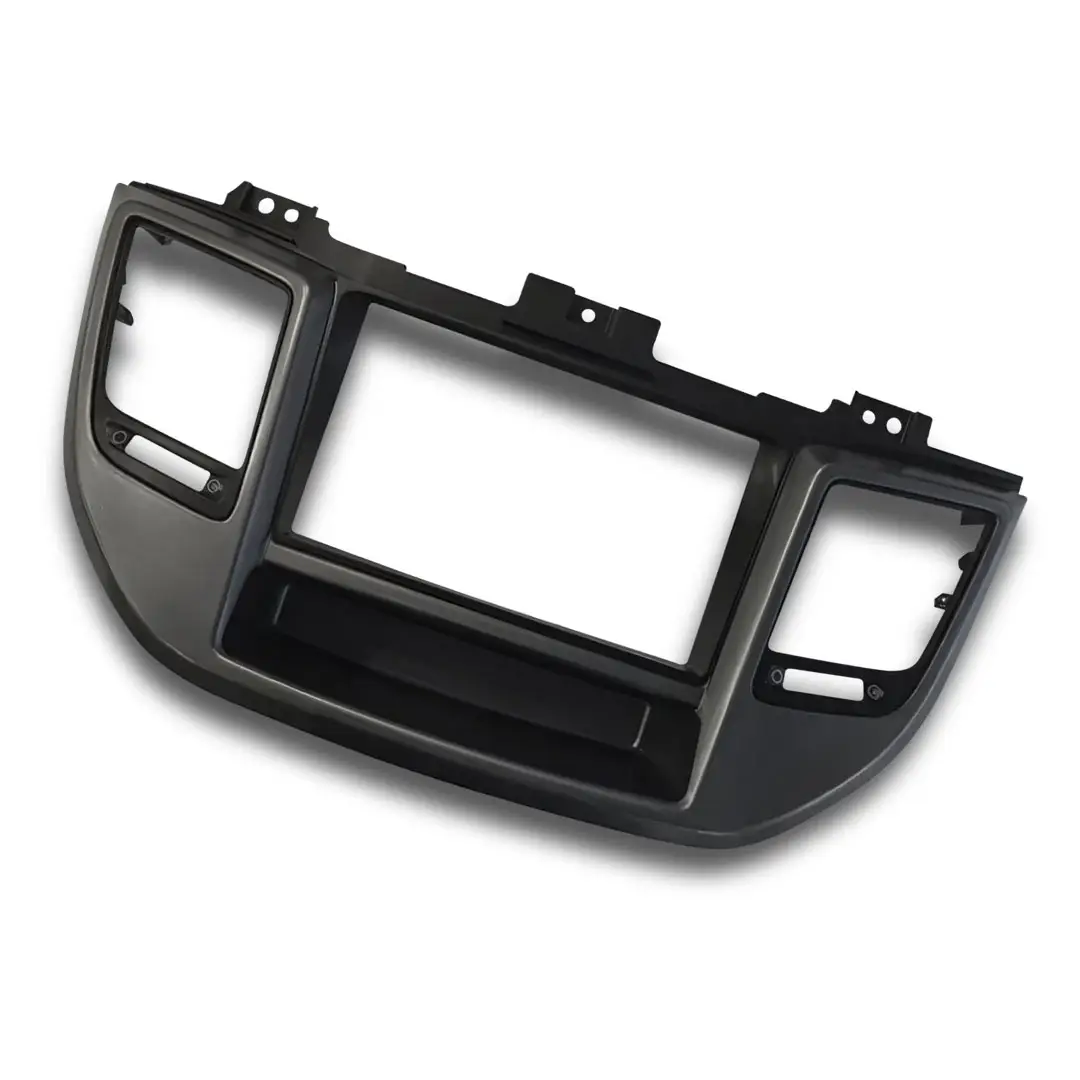

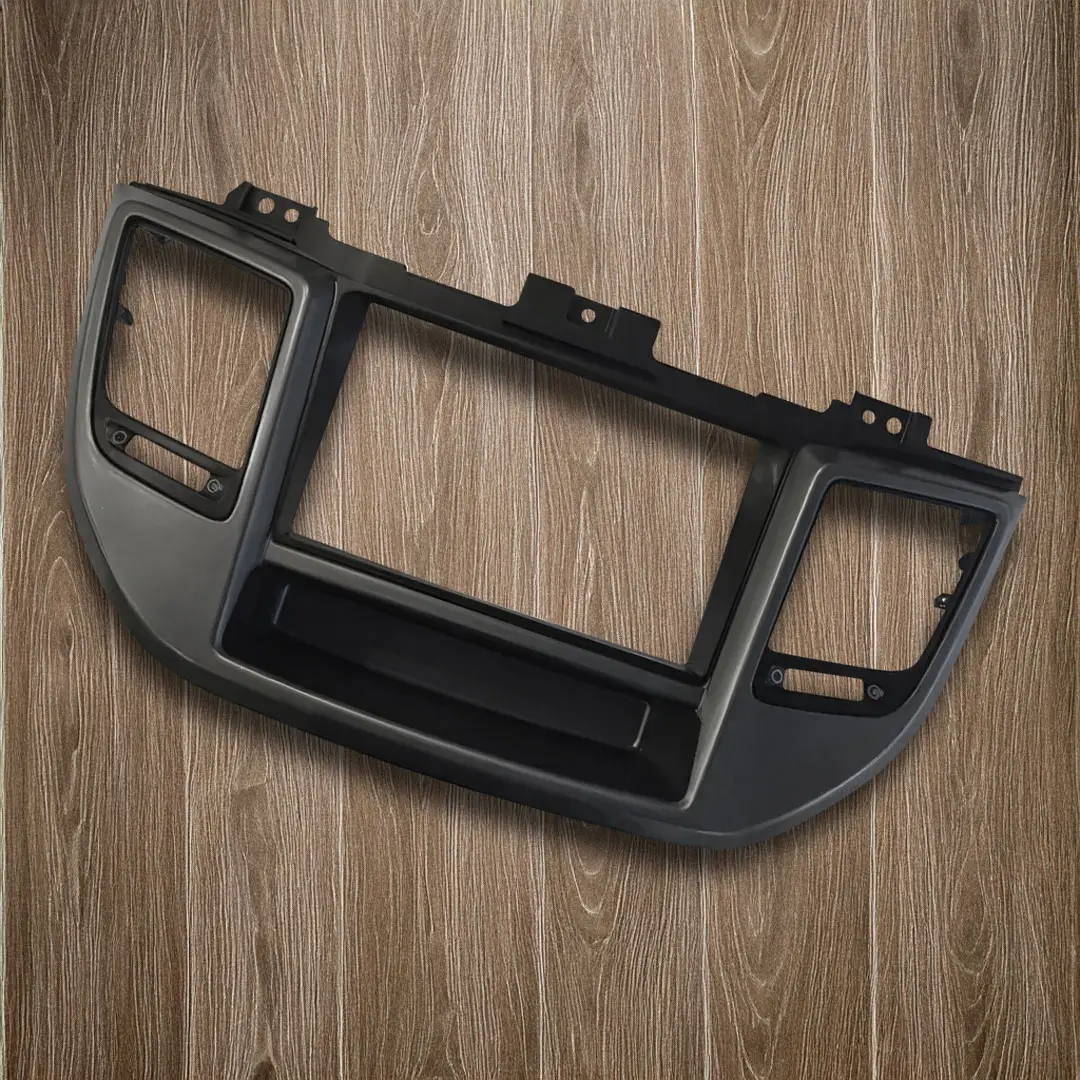

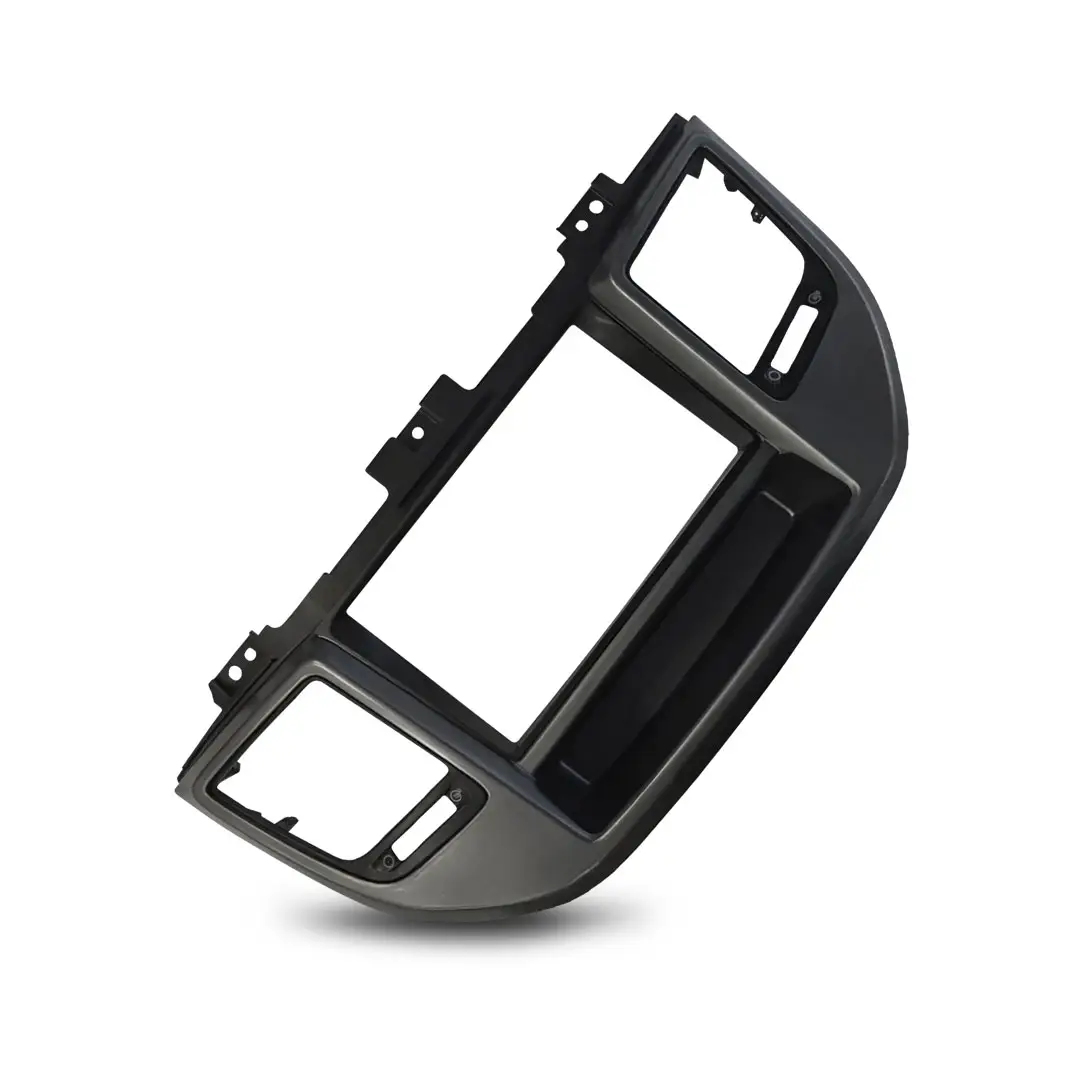

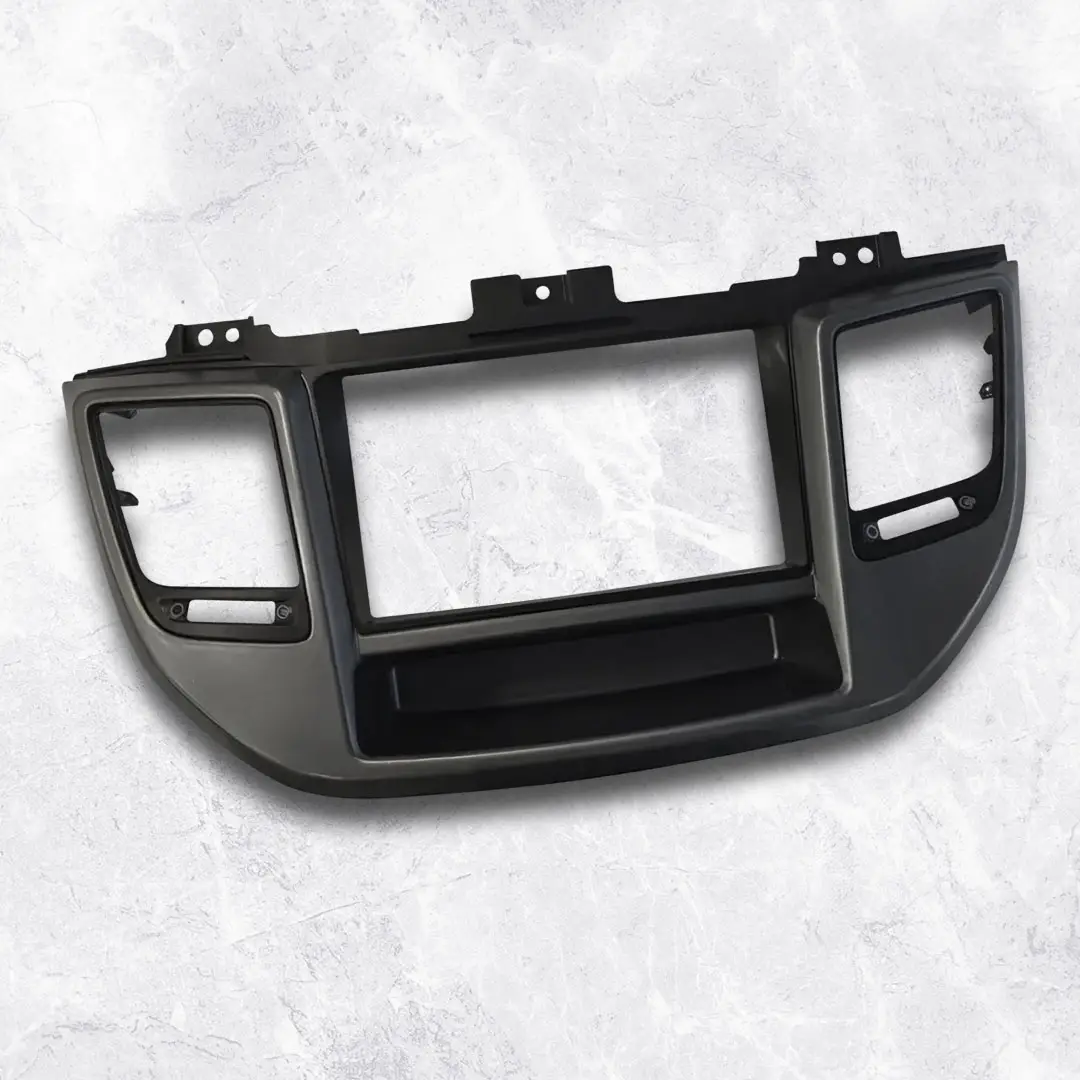

• 9" Flush Fit Radio Panel — Purpose-moulded for the Tucson's dash, delivering a factory-finish result around the larger 9" Pioneer screen with no gaps and no generic trims on show.
• Steering Wheel Audio Control Retention — Keeps factory steering wheel audio buttons active through the included interface with compatible aftermarket radios. Memory is held even when battery power is lost, so workshop visits and flat batteries won't reset your setup.
• Navigation Outputs — The SWC interface provides park, ignition, and VSS signal outputs to the head unit, enabling proper navigation and safety feature integration without additional wiring.
• Reverse Camera Retention — Passes the factory reverse camera signal through to the Pioneer head unit, maintaining reverse camera functionality after installation.
• Plug & Play Harness — Connects directly to the Tucson's factory connector and converts to standard ISO — no splicing, no soldering, fully reversible.
• Antenna Adaptor Included — Factory antenna connection is retained via the included adaptor, maintaining FM/AM reception with no additional parts needed.

---

Technical Specs

---

Compatible With / Goes Well With

• Hyundai Tucson 2015, 2016, 2017, 2018
• Pioneer DMH-AP6650BT 9" Digital Media Receiver (head unit not included)
• Factory Hyundai Tucson steering wheel audio controls (retained via included interface)
• Factory Hyundai Tucson reverse camera (retained via included interface)

---

Frequently Asked Questions

Does the HR9-HY002 include the Pioneer DMH-AP6650BT head unit?

No — the Pioneer DMH-AP6650BT is sold separately. The HR9-HY002 is an installation kit providing the fascia, wiring harness, SWC interface, antenna adaptor, and reverse camera retention needed to fit that head unit into compatible Tucson models.

Will this kit retain my factory steering wheel controls and reverse camera?

Yes to both. The SWC interface retains audio button functions with compatible aftermarket radios, and the reverse camera retention interface passes the factory camera signal through to the Pioneer head unit. SWC memory is retained even if battery power is lost.

What navigation outputs does this kit provide?

The SWC interface provides park, ignition, and VSS signal outputs to the head unit, supporting proper navigation and safety feature integration without additional wiring.

Is factory AUX or USB retention included?

AUX and USB retention is not specified in the supplier data for this kit. Contact F.A.E. before purchase if retaining factory USB or AUX connectivity is important for your setup.

Do I need to cut or splice any factory wiring?

No — the HR9-HY002 is plug-and-play. The harness connects directly to the Tucson's factory connector and converts to standard ISO, so the install is clean and reversible with no permanent wiring modifications.
