Stinger HR9-MT001 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Mitsubishi Pajero 2006-2015

Pajero Audio Upgrade Done Right 9" Pioneer Fitment, Steering Wheel Controls and AUX Retained

Product Overview

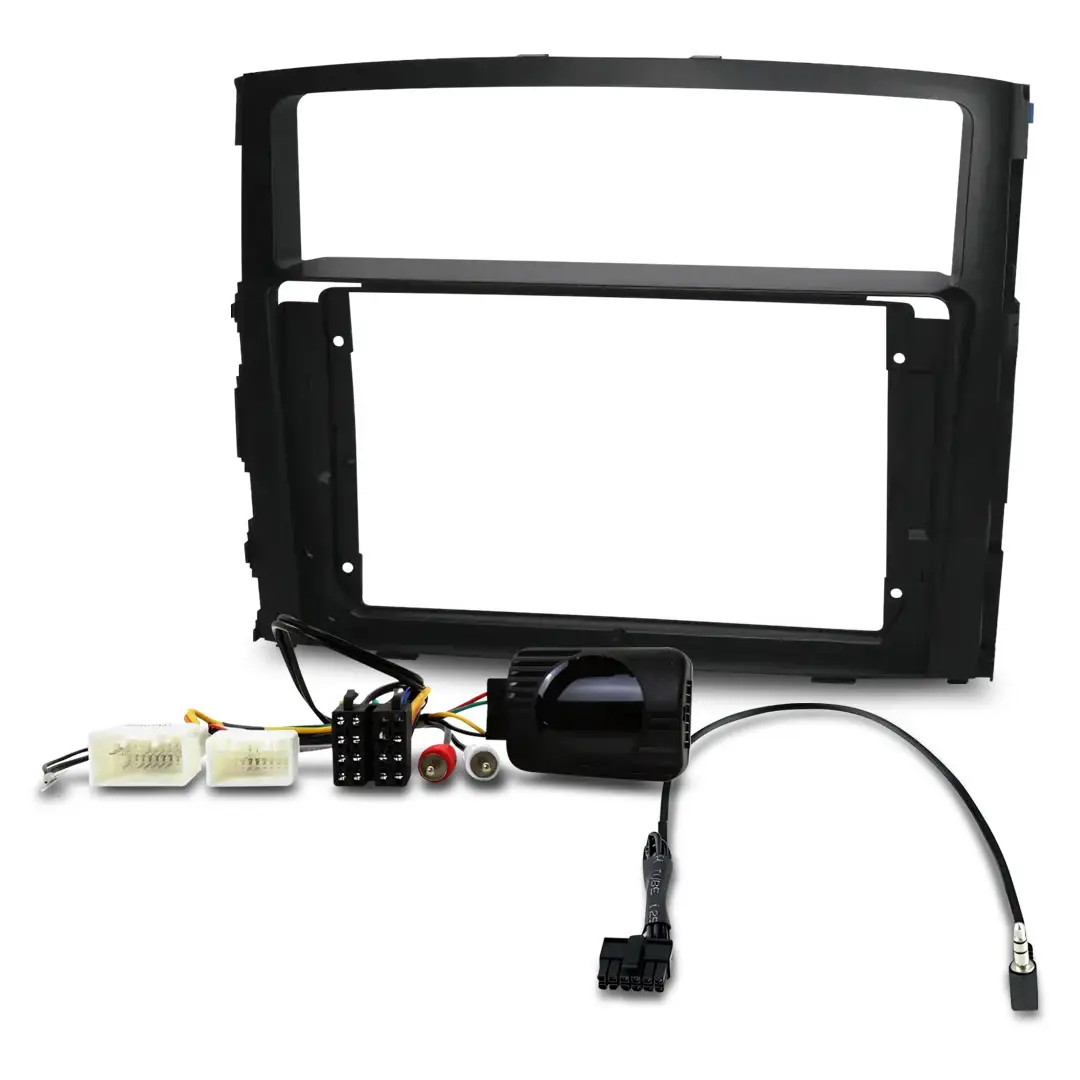

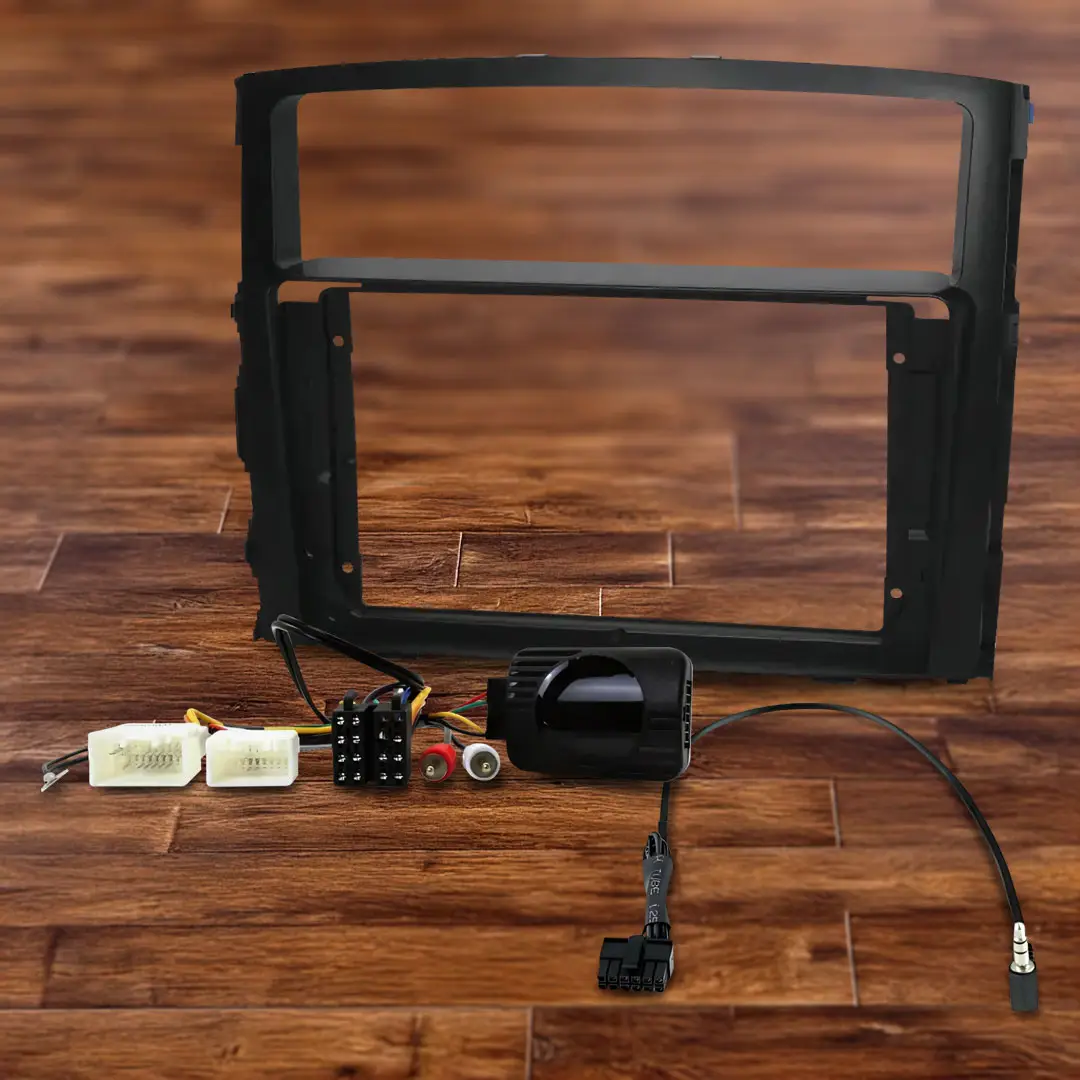

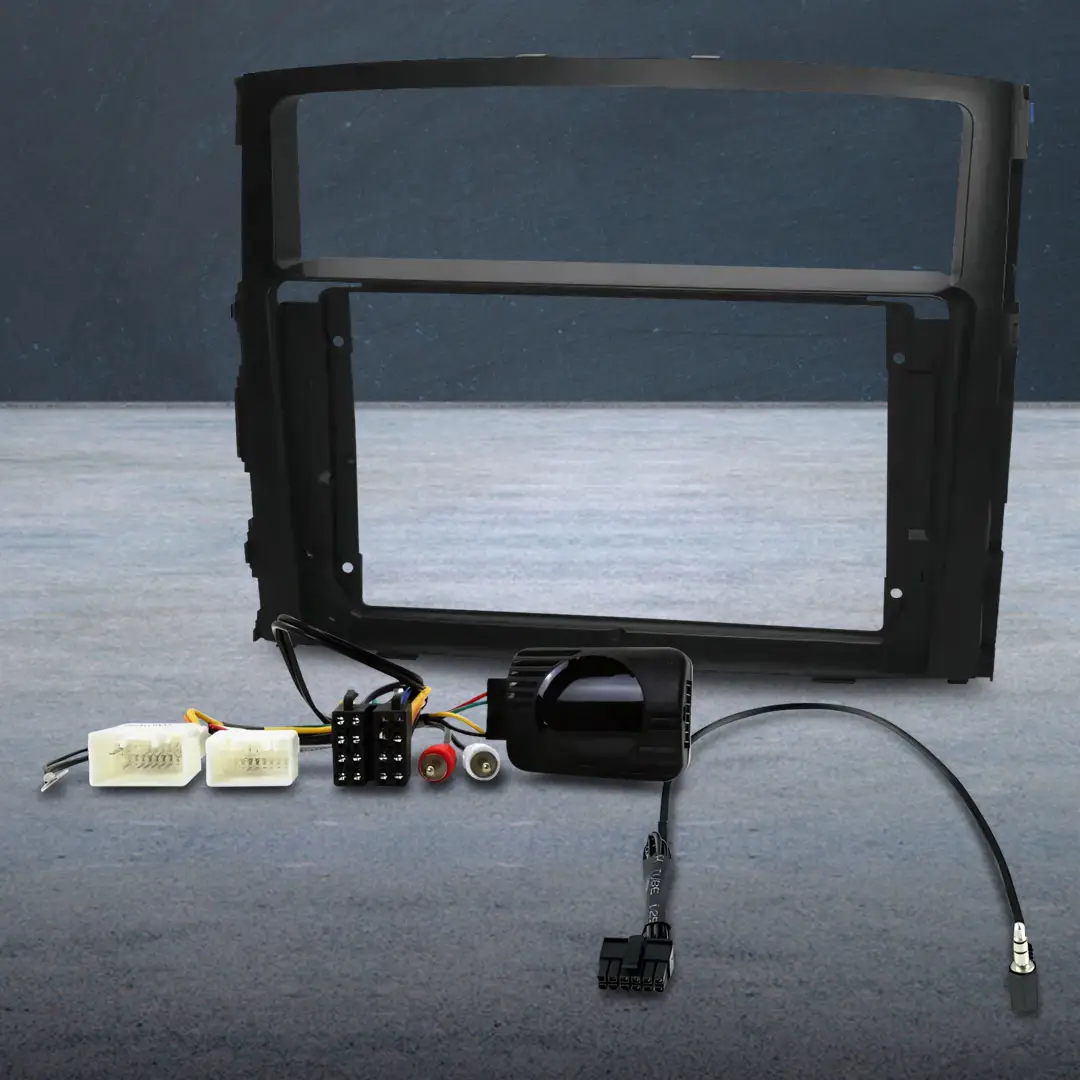

The Stinger HR9-MT001 is a purpose-built radio replacement kit designed for installing the Pioneer DMH-AP6650BT 9" head unit into 2006–2015 Mitsubishi Pajero models. This bundle delivers a flush-fit 9" fascia and a plug-and-play steering wheel control interface everything needed to get the Pioneer seated cleanly in the Pajero's factory dash opening.

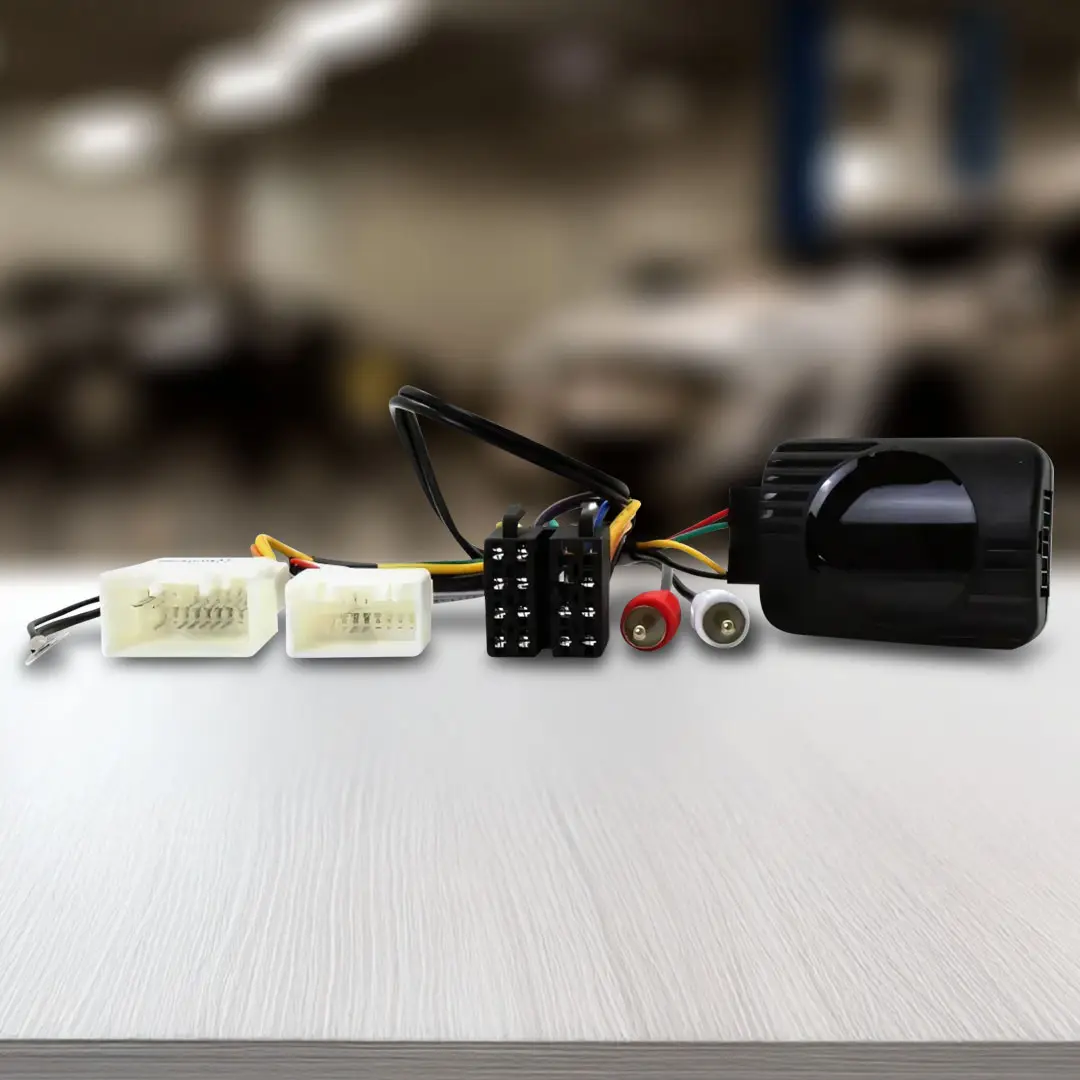

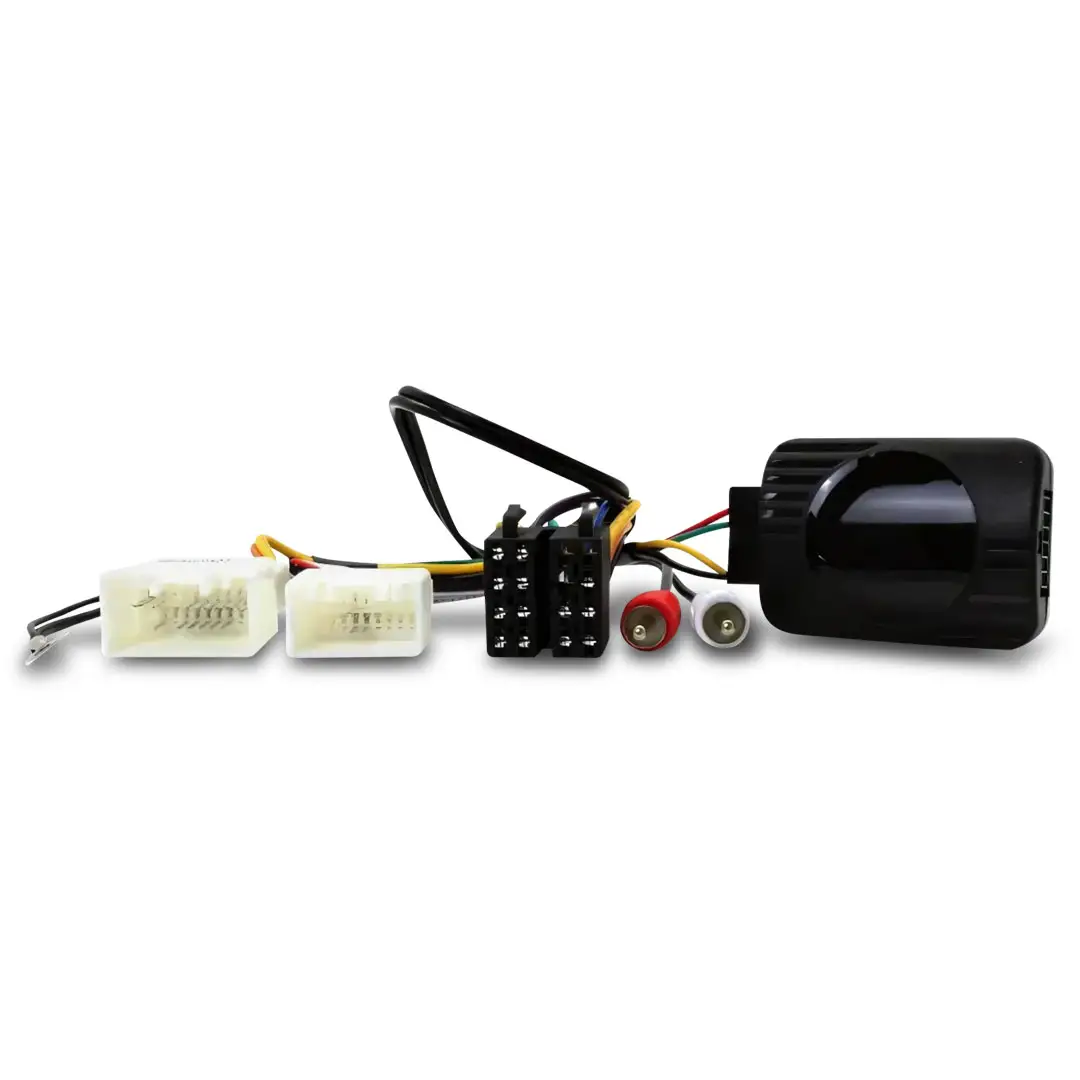

The HR9-MT001 connects to the Pajero's factory 20-pin Mitsubishi connector and converts to a standard ISO plug with no permanent wiring changes. The SWC interface retains factory audio button functions and holds its programming through power loss. Where the vehicle is equipped with a factory AUX input, it is also retained via the interface. Please note: this kit is designed for non-amplified Pajero models the factory amplifier is not retained. No antenna adaptor, reverse camera retention, or USB retention is included. The Pioneer DMH-AP6650BT head unit is not included.

---

Key Specifications

• Manufacturer Part Number: HR9-MT001
• Compatible head unit: Pioneer DMH-AP6650BT (9" display)
• Vehicle compatibility: Mitsubishi Pajero 2006–2015 (non-amplified models only)
• Factory connector type: 20-pin Mitsubishi style connector
• Output connector type: Standard ISO connector
• Steering wheel audio control retention: Yes (select aftermarket radios)
• SWC memory retention: Yes — retained on power loss
• AUX retention: Yes — if factory AUX equipped
• Reverse camera retention: Not included
• USB retention: Not specified
• Antenna adaptor: Not included
• Factory amplifier retention: No
• Colour: Black
• Plug & Play: Yes

---

Features & Benefits

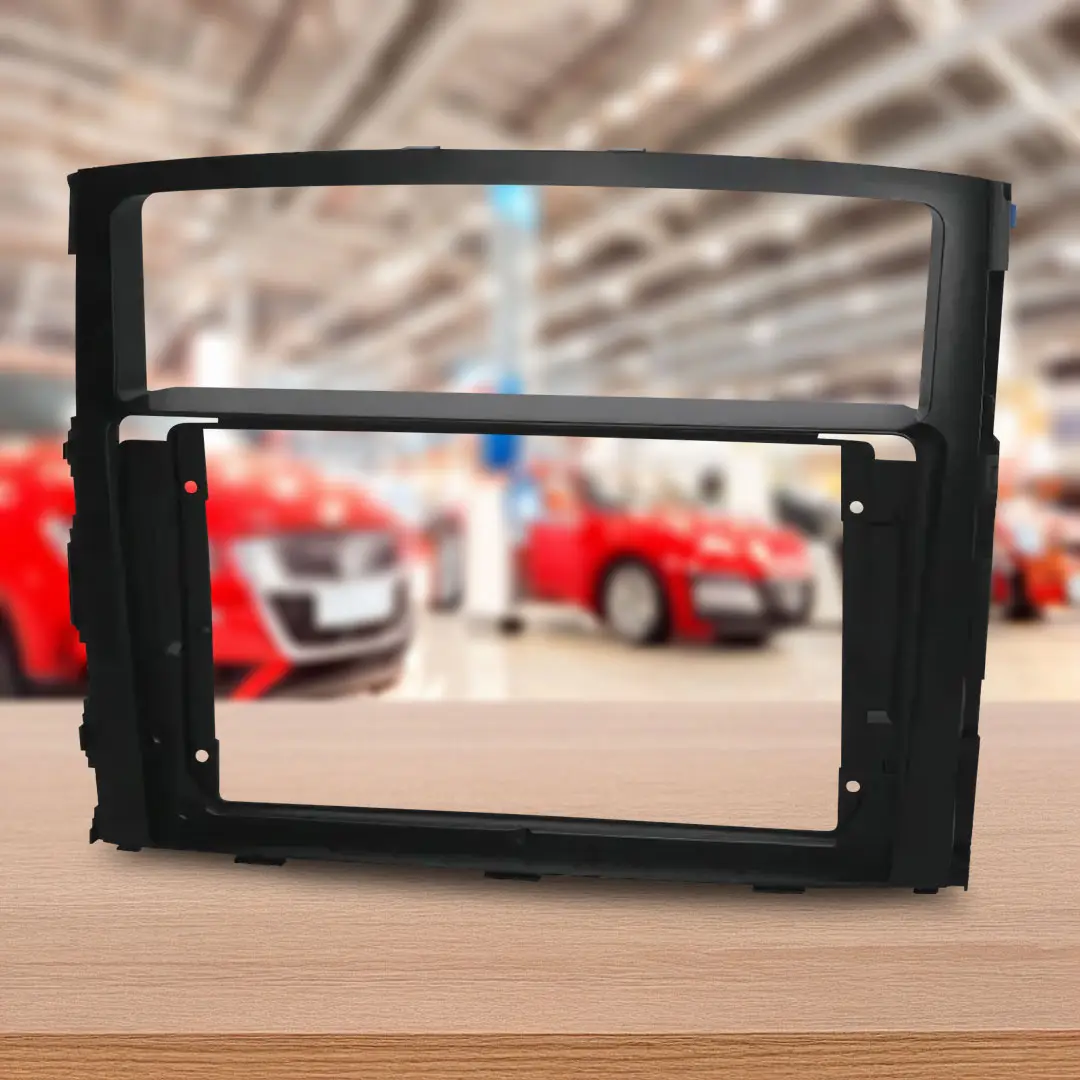

• 9" Flush Fit Radio Panel — Purpose-moulded for the Pajero's dash, delivering a factory-finish result around the larger 9" Pioneer screen without gaps or aftermarket trims on show.
• Steering Wheel Audio Control Retention — Retains factory steering wheel audio buttons via the included interface, keeping hands-free volume and track control exactly as the factory intended. Memory is held even through battery disconnection.
• Factory AUX Retention — Where the Pajero is fitted with a factory AUX input, the interface retains that connection, keeping the factory AUX port functional with the new head unit.
• Memory Retention on Power Loss — The SWC interface stores its programming when battery power is lost, so flat batteries and workshop visits won't reset your configuration.
• Plug & Play Harness (20-pin to ISO) — Connects directly to the Pajero's factory 20-pin Mitsubishi connector and converts to standard ISO — no splicing, no soldering, fully reversible.

---

Technical Specs

---

Compatible With / Goes Well With

• Mitsubishi Pajero 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
• Non-amplified models only
• Pioneer DMH-AP6650BT 9" Digital Media Receiver (head unit not included)
• Factory Mitsubishi Pajero steering wheel audio controls (retained via included interface)
• Factory Mitsubishi Pajero AUX input — if equipped

Caution: This kit is not compatible with factory-amplified Pajero variants — the factory amplifier is not retained. No antenna adaptor is included; confirm whether your vehicle requires one before purchase. Reverse camera retention is not included — if your Pajero has a factory or aftermarket reverse camera, an additional integration product will be required.

---

Frequently Asked Questions

Does the HR9-MT001 include the Pioneer DMH-AP6650BT head unit?

No — the Pioneer DMH-AP6650BT is sold separately. The HR9-MT001 is an installation kit providing the fascia and SWC interface needed to fit that head unit into compatible non-amplified Pajero models.

Is this kit compatible with factory-amplified Pajero models?

No — the HR9-MT001 is designed for non-amplified models only. The factory amplifier is not retained by this kit. If your Pajero is fitted with a factory amplifier, this kit is not suitable.

Will this kit retain my factory steering wheel controls and AUX input?

Steering wheel audio buttons are retained via the included SWC interface with compatible aftermarket radios. Factory AUX is also retained where the vehicle is equipped with it. SWC memory is held even if battery power is lost.

Does this kit include an antenna adaptor or reverse camera retention?

No — neither is included with the HR9-MT001. If your Pajero requires an antenna adaptor or reverse camera integration, additional products will be needed.

Do I need to cut or splice any factory wiring?

No — the HR9-MT001 is plug-and-play. The harness connects directly to the Pajero's factory 20-pin Mitsubishi connector and converts to standard ISO, so the install is clean and reversible with no permanent wiring modifications.
