Stinger HR9-NS001 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Nissan Navara 2015-2019

The Right Kit for Your Navara 9" Pioneer Fitment With Nav Outputs, SWC and Camera Sorted

Product Overview

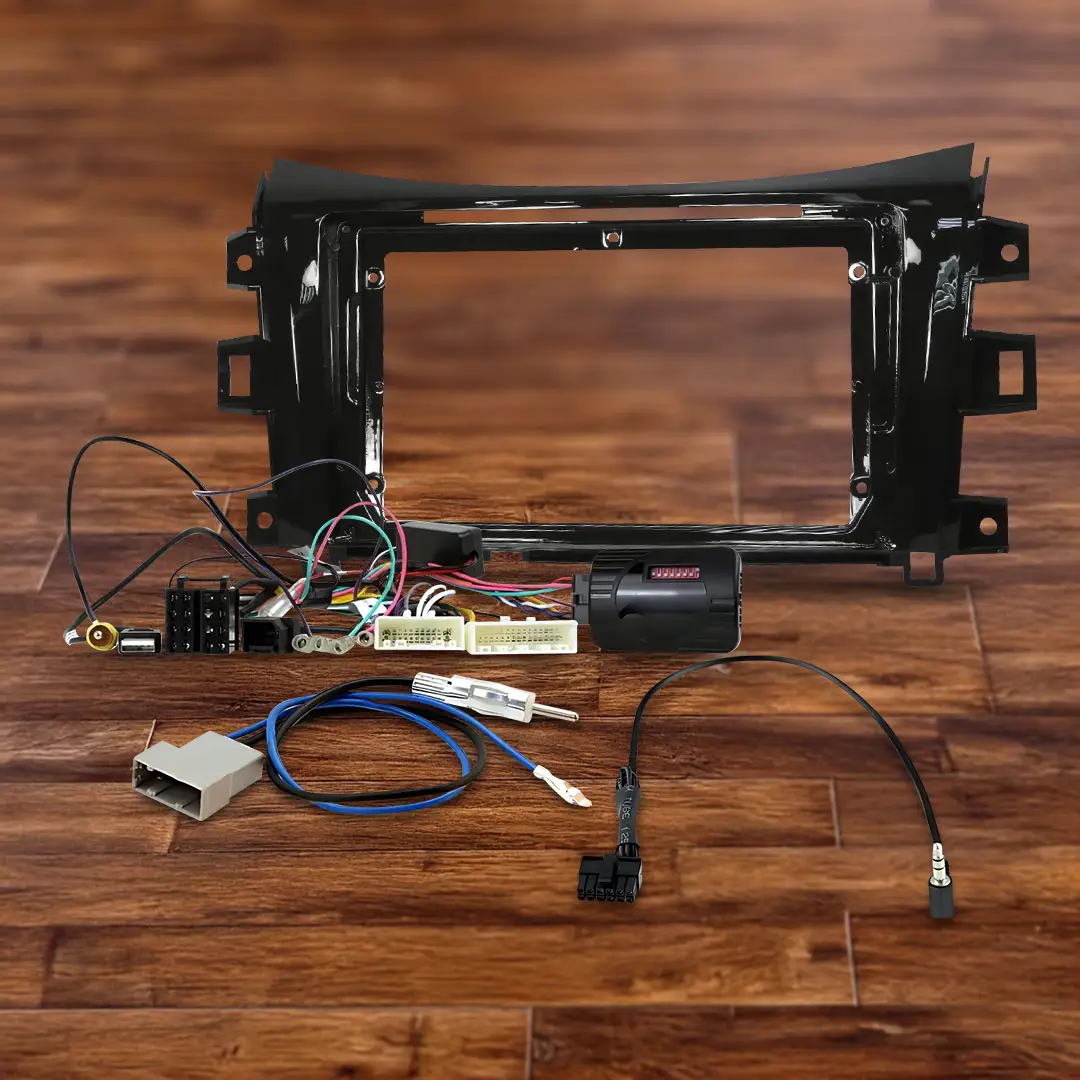

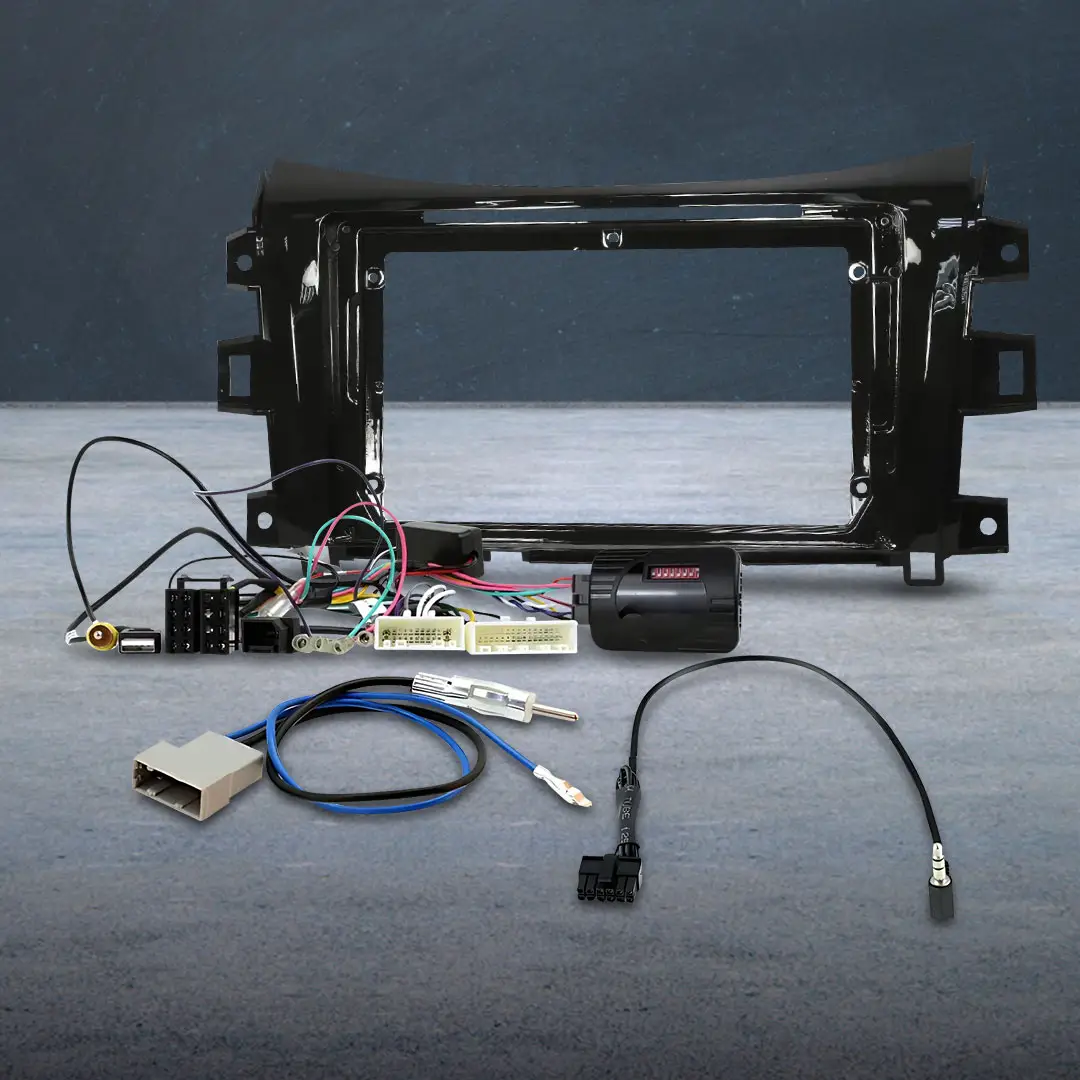

The Stinger HR9-NS001 is a purpose-built radio replacement kit designed for installing the Pioneer DMH-AP6650BT 9" head unit into 2015–2019 Nissan Navara SL, ST, and STX variants. This is a complete, matched installation package flush-fit 9" fascia, plug-and-play wiring harness, steering wheel control interface, antenna adaptor, USB retention, and reverse camera retention engineered specifically for the Navara's dash and factory wiring.

Beyond basic SWC and camera retention, the HR9-NS001's interface also provides full navigation outputs (reverse, park, ignition, illumination, and VSS signals) and allows the clock in the Navara's multi-function display to be adjusted and set. The kit is compatible with non-amplified SL, ST, and STX models only it is not suitable for factory-amplified variants or vehicles fitted with the factory 360-degree camera system. The Pioneer DMH-AP6650BT head unit is not included.

---

Key Specifications

• Manufacturer Part Number: HR9-NS001
• Compatible head unit: Pioneer DMH-AP6650BT (9" display)
• Vehicle compatibility: Nissan Navara 2015–2019 — SL, ST, STX (non-amplified models only)
• Not compatible with: Factory 360-degree camera system; factory-amplified models
• Factory connector type: 20-pin + 32-pin Nissan connectors
• Output connector type: Standard ISO connector
• Steering wheel audio control retention: Yes (select aftermarket radios)
• SWC memory retention: Yes — retained on power loss
• Navigation outputs: Yes — reverse, park, ignition, illumination, VSS
• MFD clock adjustment: Yes — set clock via multi-function display
• Reverse camera retention: Yes — standard reverse camera only (not 360)
• USB retention: Yes — USB only (no AUX)
• Antenna adaptor: Included
• Factory amplifier retention: No
• Colour: Gloss Black
• Plug & Play: Yes

---

Features & Benefits

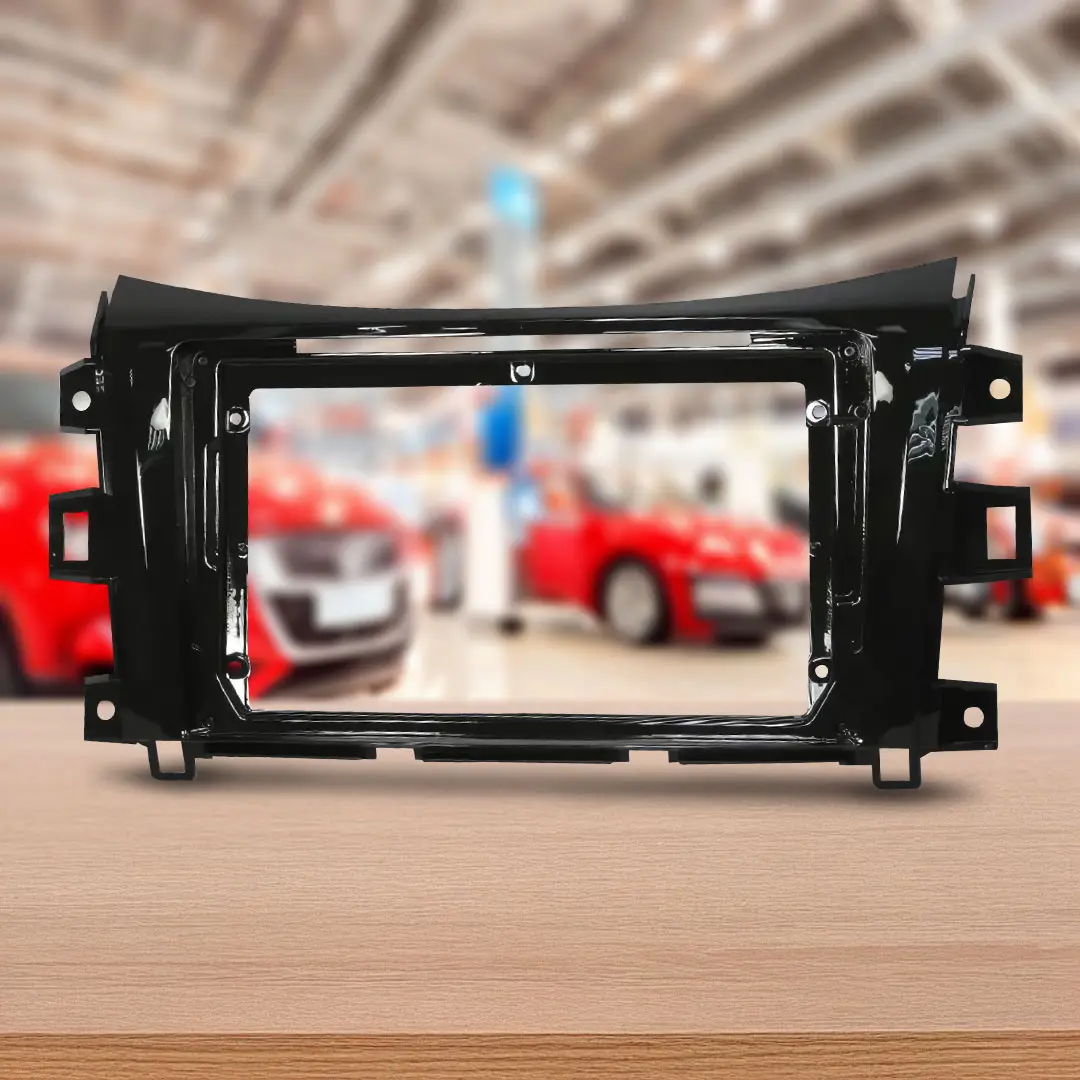

• 9" Flush Fit Radio Panel — Purpose-moulded for the Navara's dash, delivering a factory-finish result around the larger Pioneer screen with no gaps and no generic adaptors on show.
• Steering Wheel Audio Control Retention — Retains factory steering wheel audio buttons via the included interface, keeping hands-free volume and track control without additional hardware. Memory is retained even if battery power is lost.
• Full Navigation Outputs — The SWC interface provides reverse, park, ignition, illumination, and VSS signal outputs to the head unit — enabling proper navigation and safety feature integration without additional wiring.
• MFD Clock Adjustment — Allows the clock in the Navara's multi-function display to be set directly from the interface, preserving a clean dash experience after installation.
• Reverse Camera Retention — Passes the factory reverse camera signal through to the Pioneer head unit. Compatible with the standard factory reverse camera only — not the 360-degree camera system.
• USB Retention — Factory USB port is retained via the included harness, keeping the factory USB connection functional with the new head unit. AUX is not retained.
• Plug & Play Harness (20-pin + 32-pin to ISO) — Connects directly to the Navara's factory connector configuration and converts to standard ISO — no splicing, no soldering, fully reversible.
• Antenna Adaptor Included — Factory antenna connection retained via the included adaptor, maintaining FM/AM reception without additional parts.

---

Technical Specs

---

Compatible With / Goes Well With

• Nissan Navara 2015, 2016, 2017, 2018, 2019 — SL, ST, STX grades
• Non-amplified models only
• Pioneer DMH-AP6650BT 9" Digital Media Receiver (head unit not included)
• Factory Nissan Navara steering wheel audio controls (retained via included interface)
• Factory Nissan Navara standard reverse camera (not 360-degree camera system)
• Factory Nissan Navara USB port (retained via included harness)

Caution: This kit is not compatible with factory-amplified Navara variants — the factory amplifier is not retained. The factory 360-degree camera system is not supported; standard reverse camera only. AUX retention is not included. Always confirm your Navara's grade and audio configuration before purchase.

---

Frequently Asked Questions

Does the HR9-NS001 include the Pioneer DMH-AP6650BT head unit?

No — the Pioneer DMH-AP6650BT is sold separately. The HR9-NS001 is an installation kit providing the fascia, wiring harness, SWC interface, antenna adaptor, USB retention, and reverse camera retention needed to fit that head unit into compatible Navara models.

Which Navara grades is this kit compatible with?

This kit suits 2015–2019 Nissan Navara SL, ST, and STX grades with non-amplified factory audio. It is not compatible with factory-amplified variants or vehicles fitted with the factory 360-degree camera system.

Will this kit retain my factory steering wheel controls and reverse camera?

Yes to both — the SWC interface retains audio button functions with compatible aftermarket radios, and the reverse camera retention interface passes the factory camera signal to the Pioneer head unit. Note: the 360-degree camera system is not supported, and SWC memory is retained even if battery power is lost.

What navigation outputs does this kit provide?

The SWC interface provides reverse, park, ignition, illumination, and VSS signal outputs to the head unit. It also allows the clock in the Navara's multi-function display to be adjusted and set after installation.

Is the factory USB port retained, and what about AUX?

USB is retained via the included harness, keeping the factory USB port functional with the Pioneer head unit. AUX retention is not included with this kit.
