Stinger HR9-SZ001 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Suzuki Swift 2011-2016

Upgrade Your Older Swift Clean 9" Fitment, Factory Controls Retained

Product Overview

The Stinger HR9-SZ001 is a purpose-built radio replacement kit designed for installing the Pioneer DMH-AP6650BT 9" head unit into 2011–2016 Suzuki Swift models. Unlike later-generation Swift kits, this bundle is engineered specifically for the earlier dash layout delivering a flush-fit 9" fascia, plug-and-play wiring harness, steering wheel control interface, and antenna adaptor in a single, matched package.

The HR9-SZ001 connects directly to the Swift's factory 20-pin connector and converts to a standard ISO plug no permanent wiring changes required. However, due to the dash geometry of 2011–2016 Swift models, some physical modification to the dash aperture is necessary to accommodate the larger 9" screen. Professional installation is recommended. Please note: the Pioneer DMH-AP6650BT head unit is not included.

---

Key Specifications

• Manufacturer Part Number: HR9-SZ001
• Compatible head unit: Pioneer DMH-AP6650BT (9" display)
• Vehicle compatibility: Suzuki Swift 2011–2016
• Factory connector type: 20-pin vehicle plug
• Output connector type: Standard ISO connector
• Steering wheel audio control retention: Yes (select aftermarket radios)
• Antenna adaptor: Included
• Reverse camera retention: Not included
• AUX/USB retention: Not specified
• Colour: Black
• Plug & Play: Yes
• Dash modification required: Yes — professional installation recommended

---

Features & Benefits

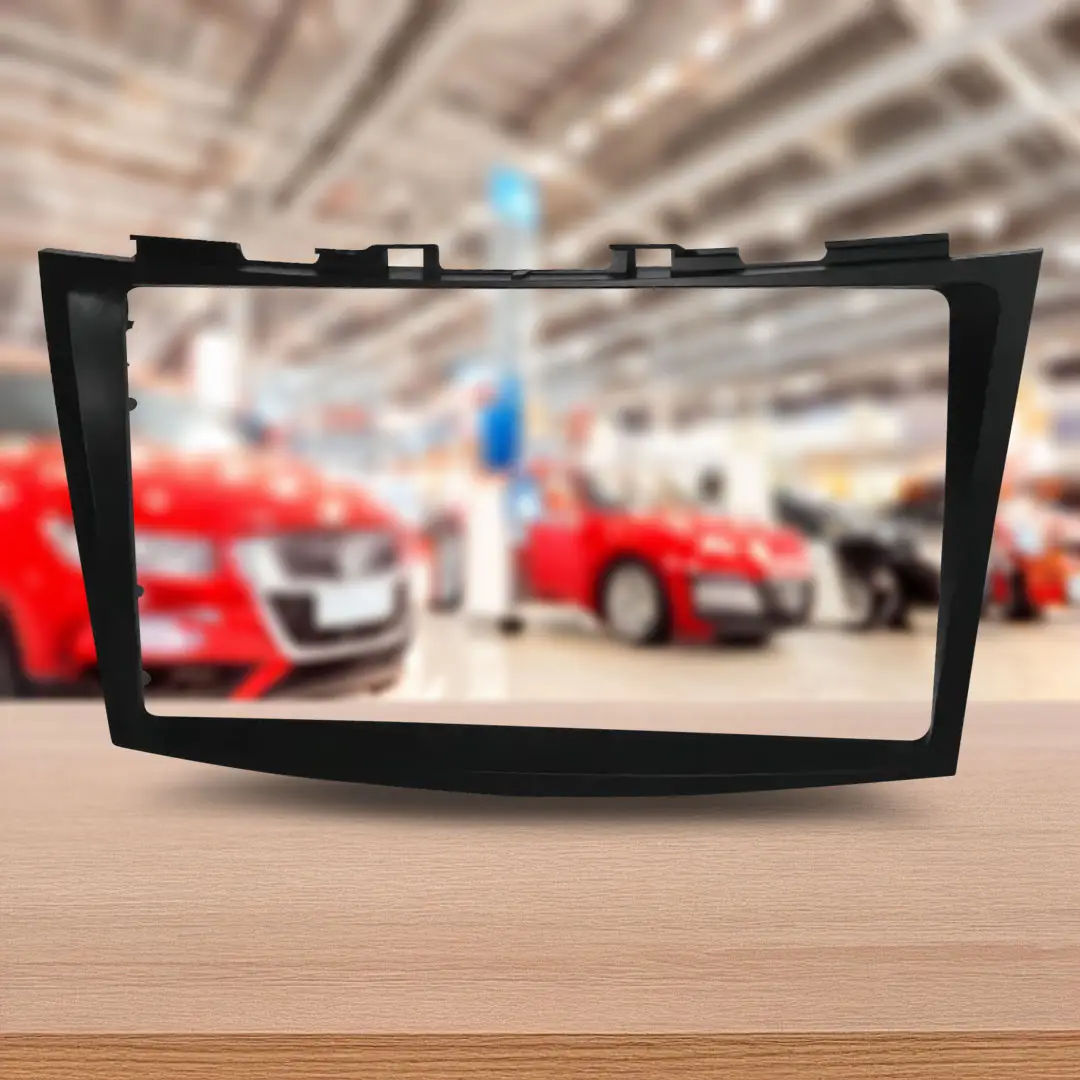

• 9" Flush Fit Radio Panel — Designed to frame the Pioneer DMH-AP6650BT's larger screen within the 2011–2016 Swift's dash, delivering a clean, purpose-built result rather than a generic aftermarket finish.
• Steering Wheel Audio Control Retention — Keeps your factory steering wheel audio buttons active through the included interface, maintaining hands-free volume and track control without additional programming hardware.

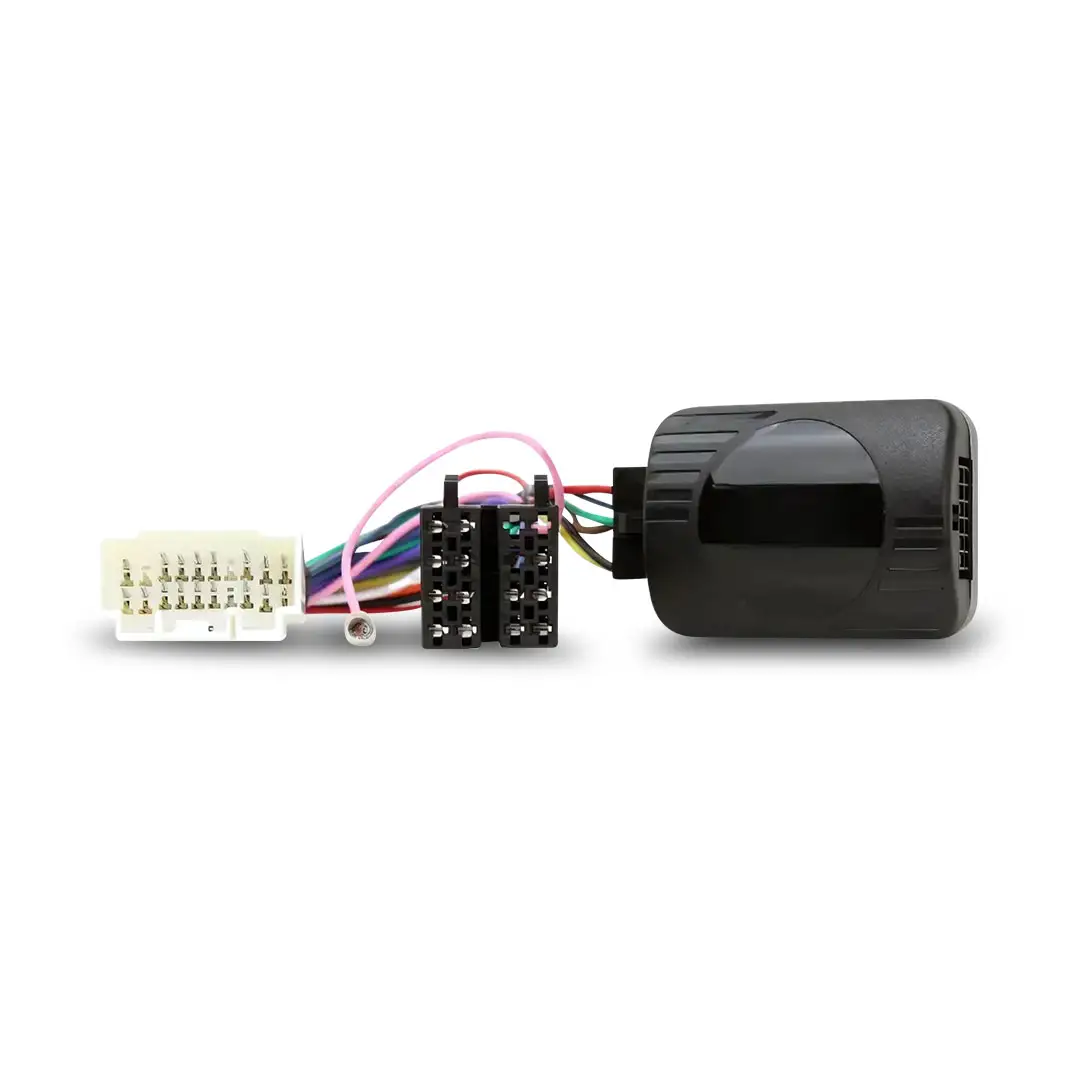

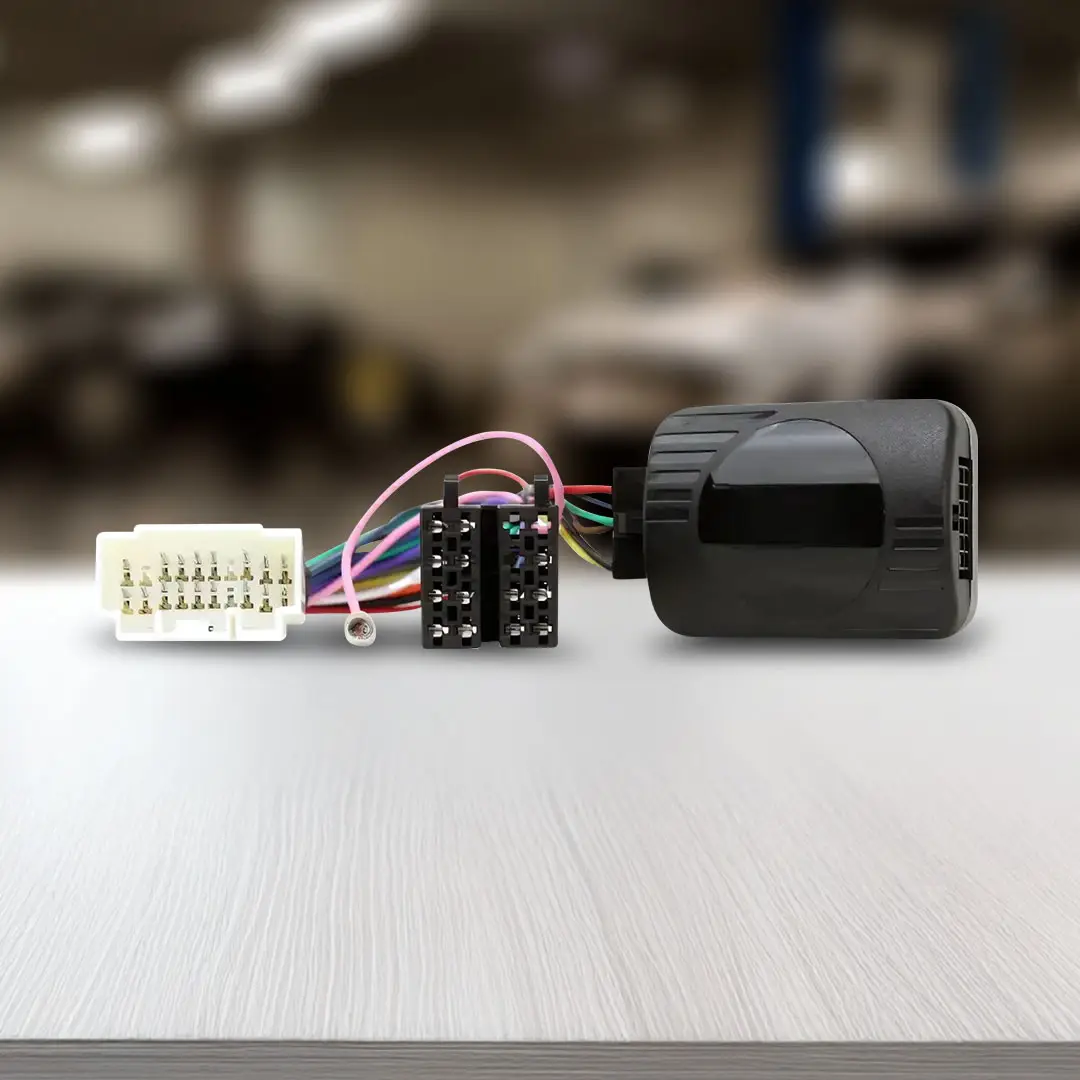

• Plug & Play Harness (20-pin to ISO) — Mates directly with the Swift's factory 20-pin connector and converts to a standard ISO plug — no wire cutting, no soldering, no permanent modifications to the factory loom.

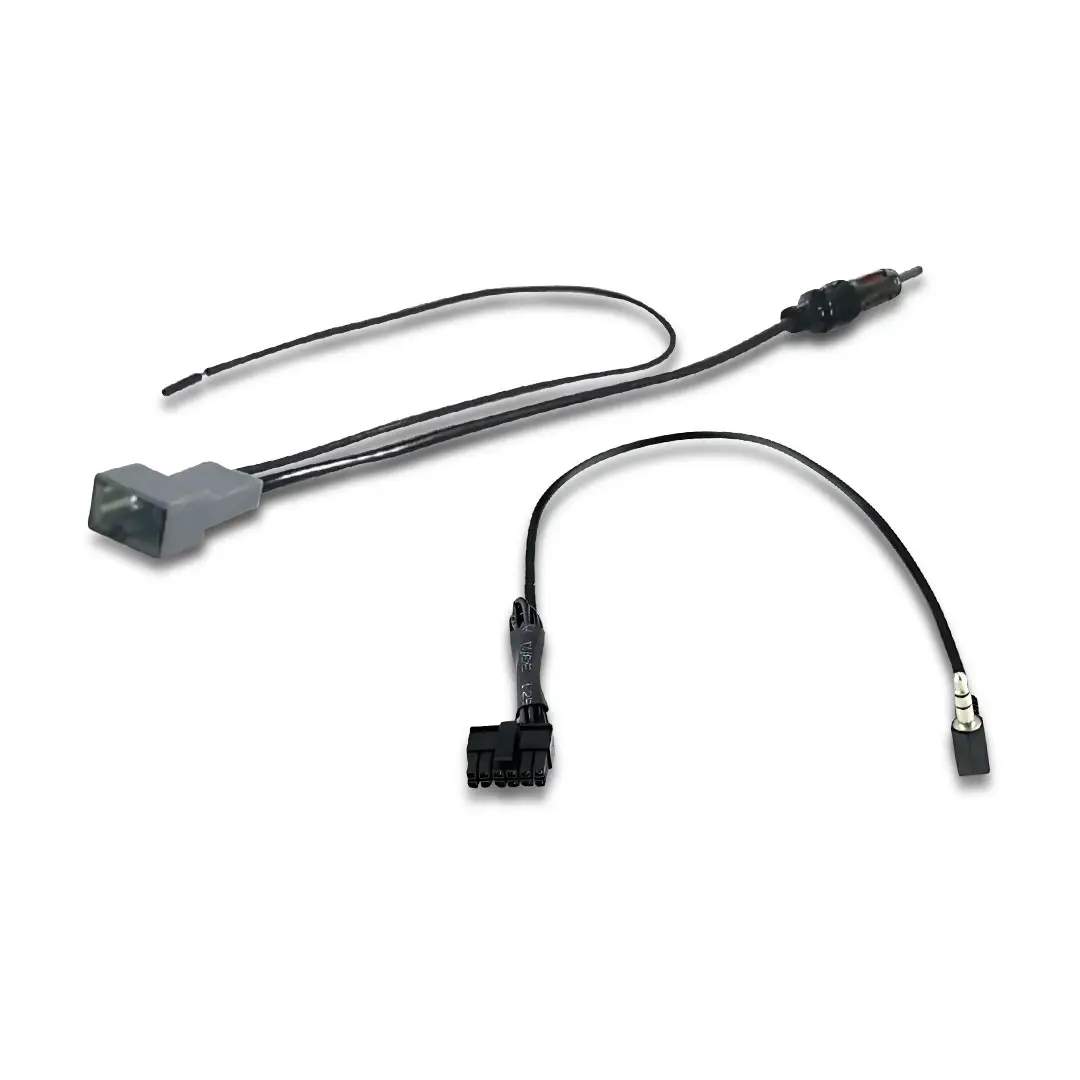

• Antenna Adaptor Included — The factory antenna connection is retained via the included adaptor, preserving FM/AM reception with no additional parts needed.

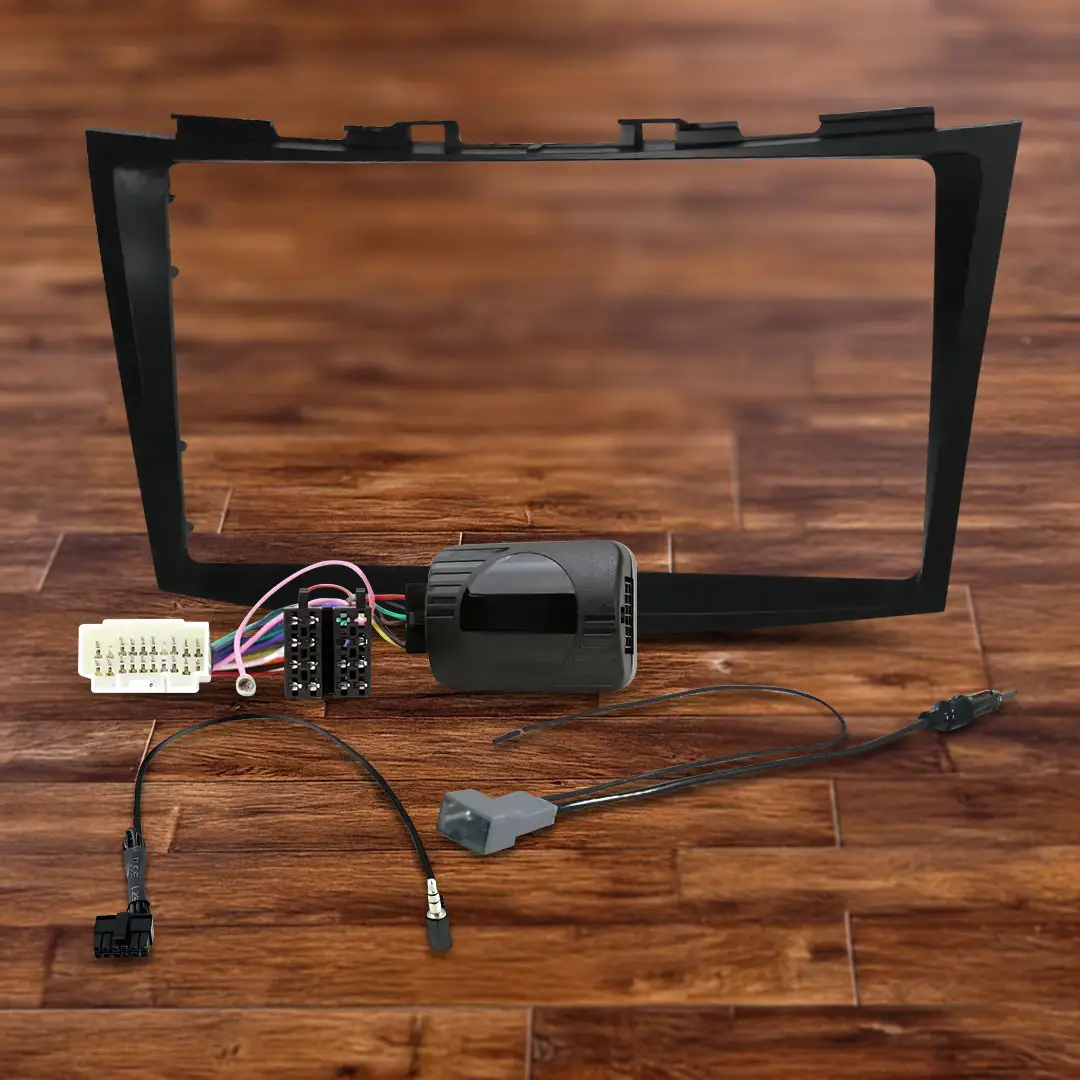

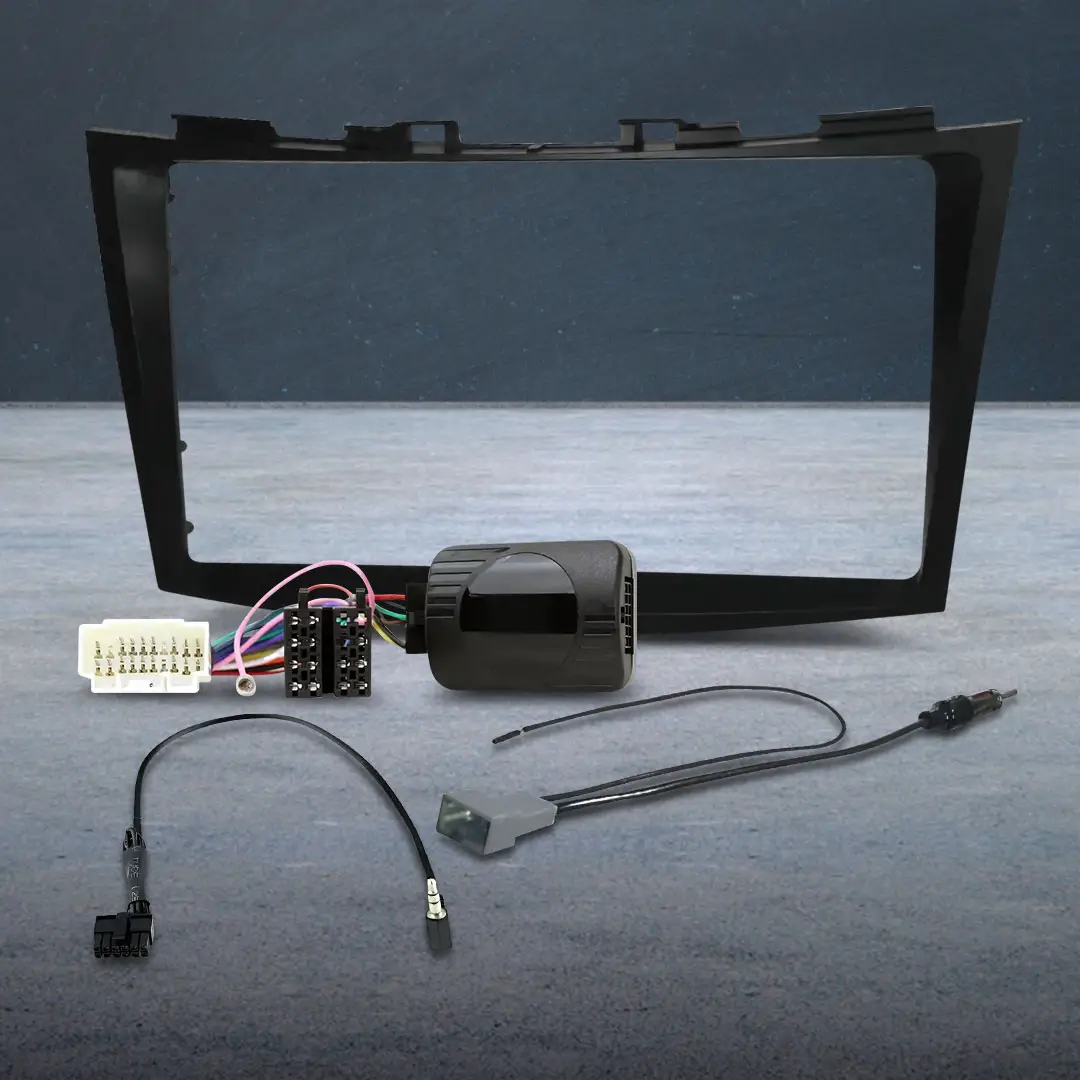

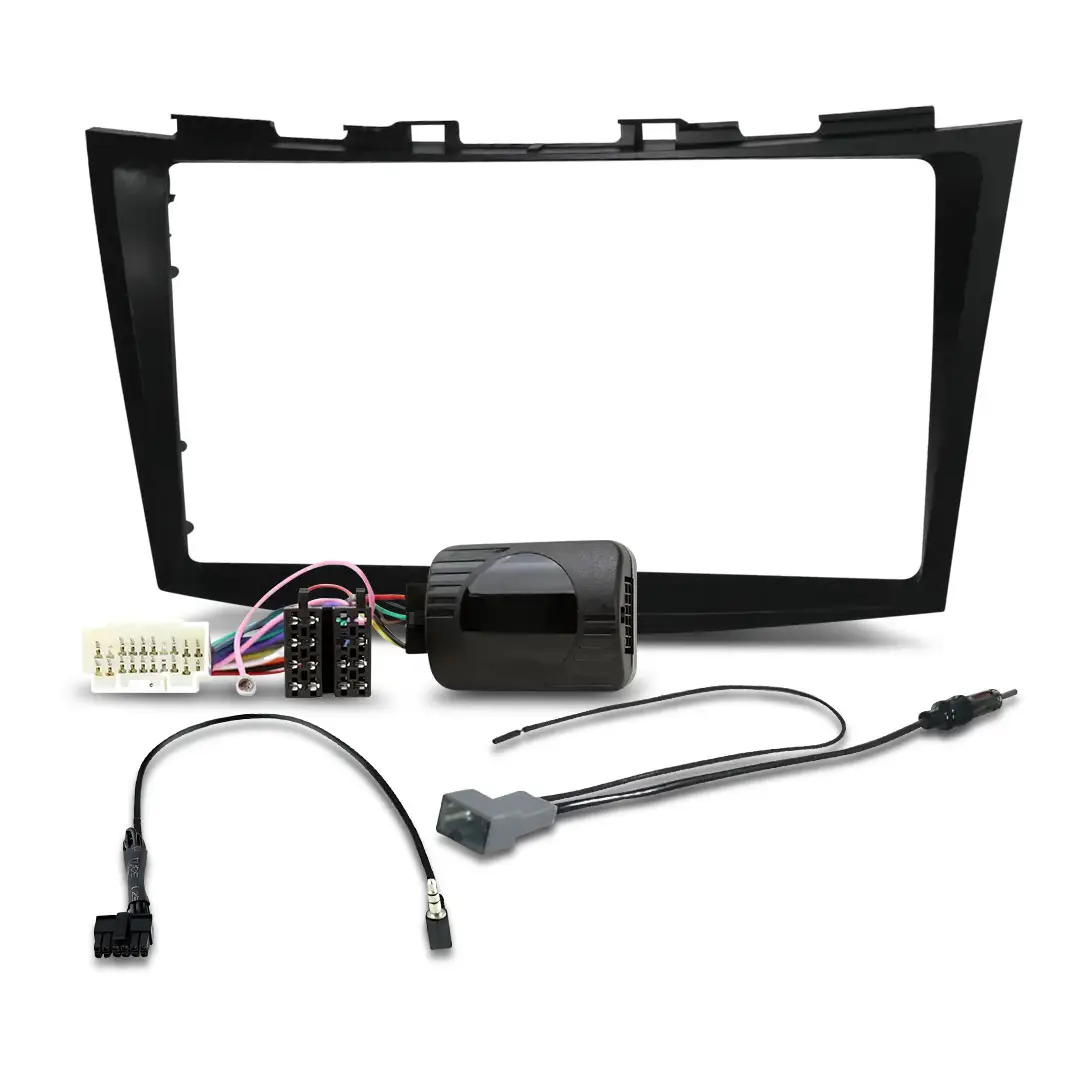

• Complete Bundle — Fascia panel, SWC interface, patch lead, and antenna adaptor are all matched and supplied together, eliminating the guesswork of sourcing individual parts.

---

Technical Specs

---

Compatible With / Goes Well With

• Suzuki Swift 2011, 2012, 2013, 2014, 2015, 2016
• Pioneer DMH-AP6650BT 9" Digital Media Receiver (head unit not included)
• Factory Suzuki Swift steering wheel audio controls (retained via included interface)
• Standard ISO aftermarket radio wiring accessories

Caution: This kit does not include a reverse camera retention interface. If your 2011–2016 Swift is fitted with a factory or aftermarket reverse camera, a separate camera integration harness will be required. Dash modification is needed to fit the 9" fascia — the extent of modification will vary by individual vehicle. Professional installation is strongly recommended.

---

Frequently Asked Questions

Does the HR9-SZ001 include the Pioneer DMH-AP6650BT head unit?

No — the Pioneer DMH-AP6650BT is sold separately. The HR9-SZ001 is an installation kit only, providing the fascia, wiring harness, SWC interface, and antenna adaptor needed to fit that head unit into your 2011–2016 Swift.

Will this kit retain my Suzuki Swift's factory steering wheel controls?

Yes, in most cases. The included steering wheel control interface retains audio button functions with compatible aftermarket radios including the Pioneer DMH-AP6650BT. Confirm compatibility with your specific head unit before purchase.

Do I need to modify the dash to install this kit?

Yes — Stinger notes that dash modification is required for the 2011–2016 Swift to accommodate the 9" fascia. The extent of modification will vary between vehicles, and professional installation is recommended to achieve a clean result.

Does this kit include reverse camera retention?

No — this kit does not include a reverse camera retention interface. If you require reverse camera integration, a separate camera harness compatible with the Pioneer DMH-AP6650BT will be needed.

Do I need to cut or splice any factory wiring?

No — the harness is plug-and-play. It connects directly to the Swift's factory 20-pin connector and converts to a standard ISO plug, so no permanent changes to the factory loom are required.
