Stinger HR9-SZ002 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Suzuki Swift 2017-2024
The Cleanest Swap for Your Suzuki Swift Everything You Need, Nothing You Don't
Product Overview
The Stinger HR9-SZ002 is a purpose-built radio replacement kit designed specifically for installing the Pioneer DMH-AP6650BT 9" head unit into 2017–2024 Suzuki Swift models. Rather than hunting down individual adaptors and hoping they work together, this bundle delivers a single, engineered solution flush-fit fascia, steering wheel control interface, antenna adaptor, and reverse camera retention all in one box.
Built on a genuine plug-and-play philosophy, the HR9-SZ002 mates directly with the Swift's factory 20-pin connector, converting it to a standard ISO connector for a clean, professional install. It's ideal for Swift owners who want a modern aftermarket radio without cutting factory wiring or losing OEM functions. Please note: the Pioneer DMH-AP6650BT head unit is not included.
Key Specifications
- Manufacturer Part Number: HR9-SZ002
- Compatible head unit: Pioneer DMH-AP6650BT (9" display)
- Vehicle compatibility: Suzuki Swift 2017–2024
- Factory connector type: 20-pin vehicle plug
- Output connector type: Standard ISO connector
- Steering wheel audio control retention: Yes (select aftermarket radios)
- Reverse camera retention: Yes (modifications may be required)
- Antenna adaptor: Included
- AUX/USB retention: Not included
- Colour: Black
- Plug & Play: Yes
Features & Benefits

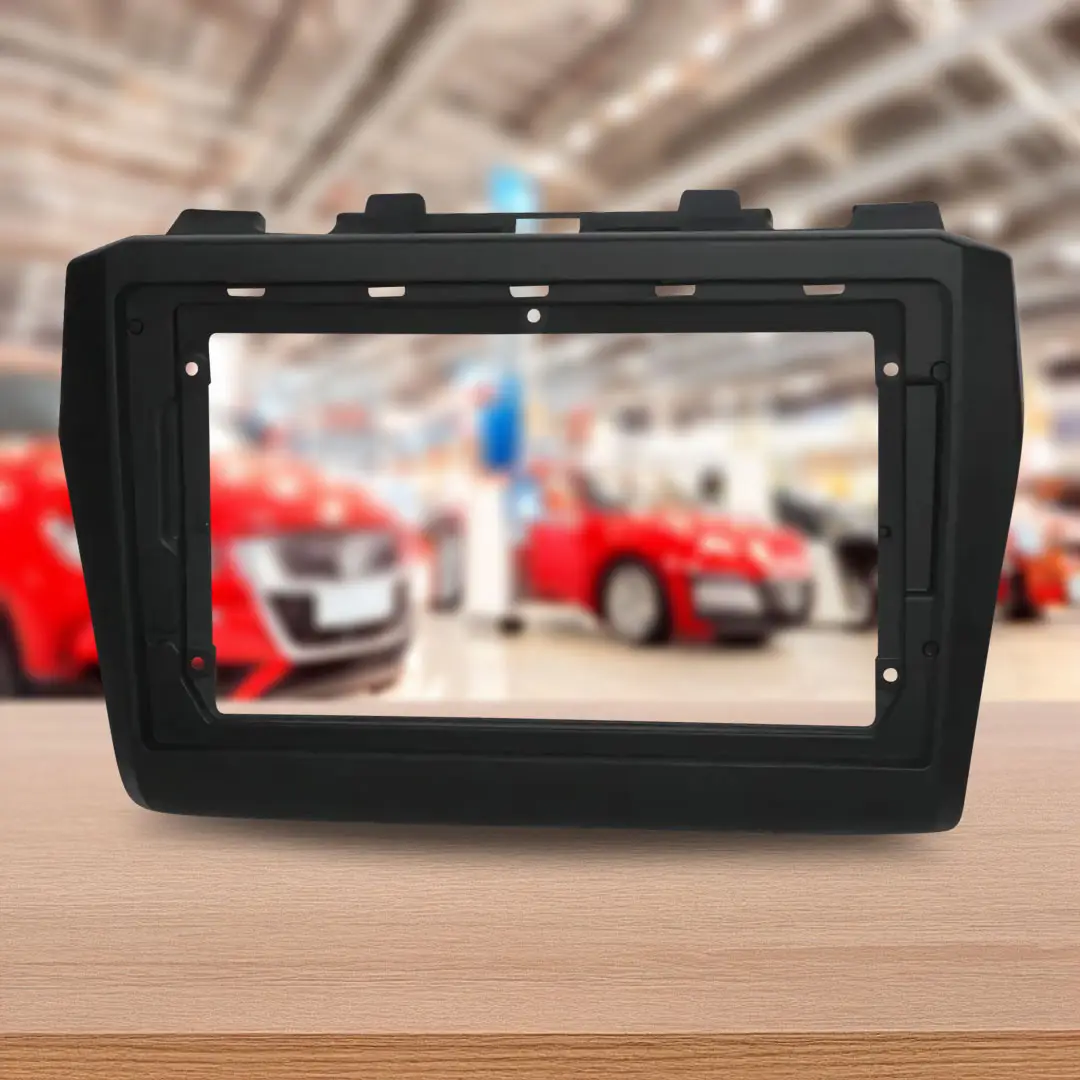

- 9" Flush Fit Radio Panel — Purpose-moulded to suit the Swift's dash, the fascia provides a factory-finish result around the larger 9" Pioneer screen. No gaps, no filler strips, no rattles.

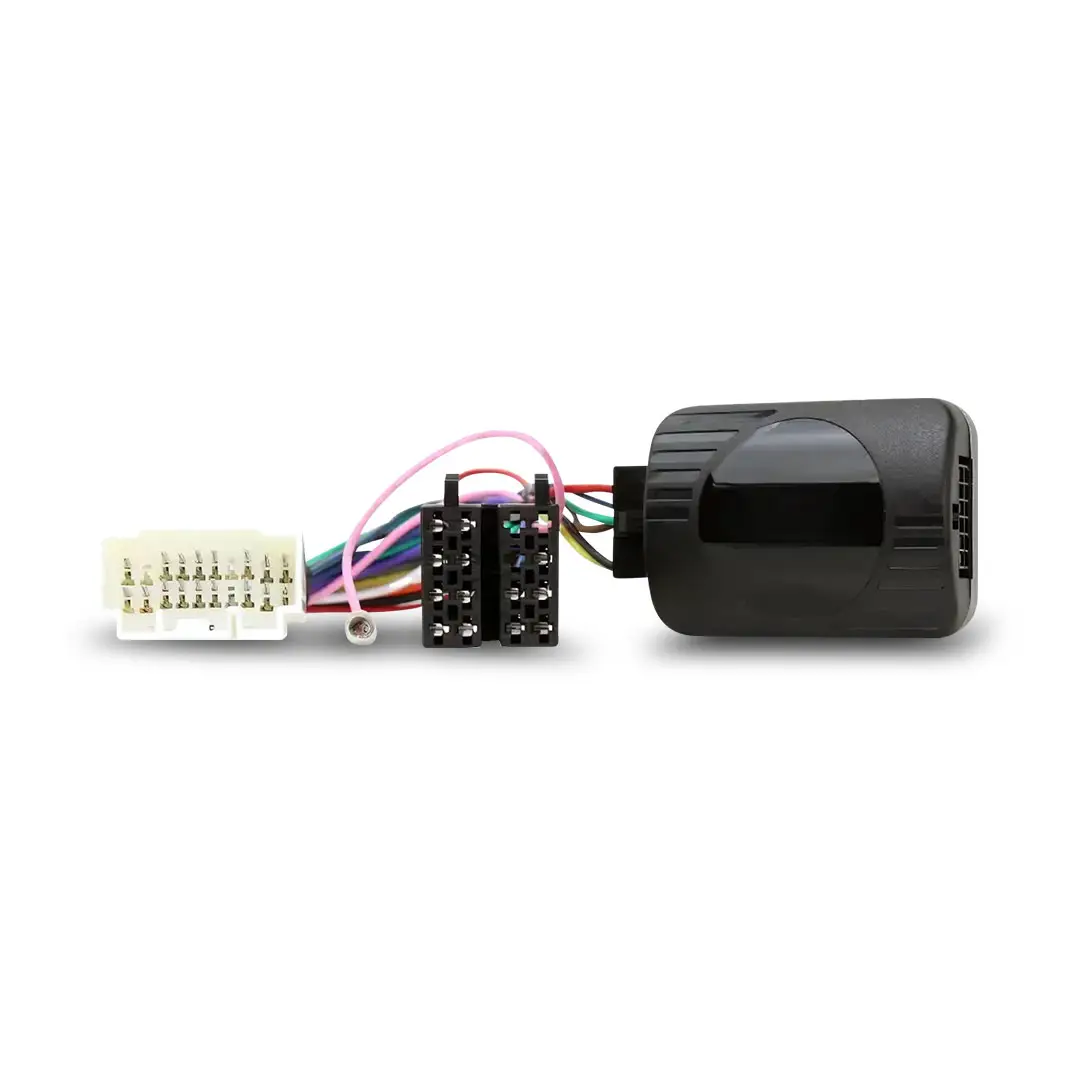

- Steering Wheel Audio Control Retention — Keeps your factory steering wheel buttons active through a dedicated audio interface, so you don't lose hands-free volume and track control on the open road.
- Memory Retention on Power Loss — The steering wheel interface stores its programming even when the battery is disconnected, so a flat battery or workshop visit won't wipe your settings.
- Plug & Play Harness (20-pin to ISO) — Direct-plug connection from Swift's factory 20-pin loom to standard ISO — no splicing, no soldering, and a clean reversible install.
- Antenna Adaptor Included — Factory antenna plugs straight in via the included adaptor, maintaining solid FM/AM reception without the need for additional parts.

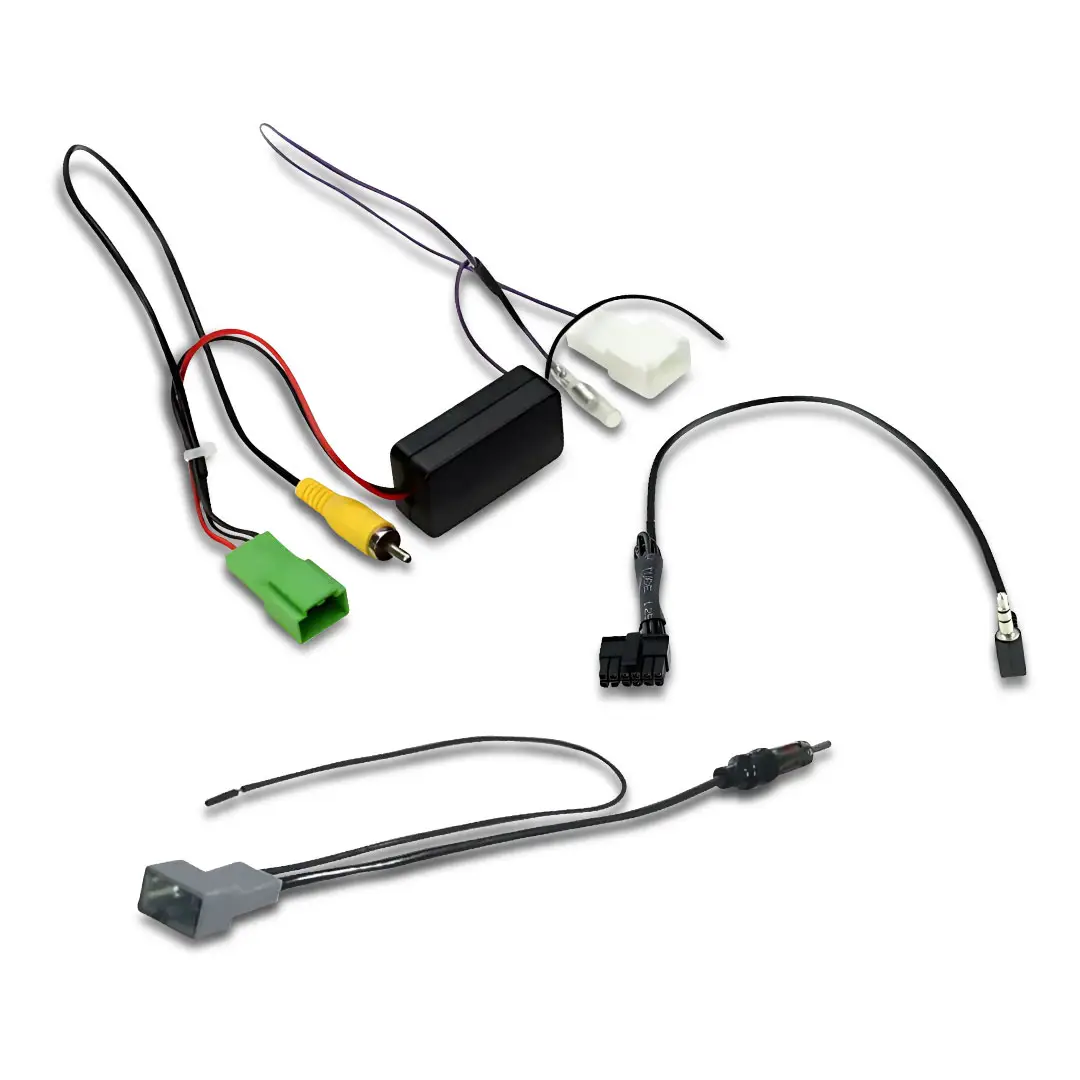

- Reverse Camera Retention — Allows the factory reverse camera signal to pass through to the Pioneer head unit. Note: some vehicles may require harness modification — compare the interface to your factory harness before connecting.
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | HR9-SZ002 |
| Brand | Stinger |
| Colour | Black |
| Vehicle Plug Style | 20-pin connector |
| Output | Standard ISO connector |
| Fascia Size | 9" flush fit |
| Plug & Play | Yes — factory to ISO, no splicing required |
| Steering Wheel Audio Controls | Retained (compatible aftermarket radios) |
| SWC Memory | Retained on power loss |
| Antenna Adaptor | Included |
| Reverse Camera Retention | Included (modification may be required) |
| AUX/USB Retention | Not included |
| Head Unit Compatibility | Pioneer DMH-AP6650BT |
Compatible With / Goes Well With
- Suzuki Swift 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
- Pioneer DMH-AP6650BT 9" Digital Media Receiver (head unit not included)
- Factory Suzuki Swift steering wheel audio controls (retained via included interface)
- Factory Suzuki Swift reverse camera (retention harness included; some vehicles may require modification)
- Standard ISO aftermarket radio wiring accessories
Frequently Asked Questions
Does the HR9-SZ002 include the Pioneer DMH-AP6650BT head unit?
No — the Pioneer DMH-AP6650BT is sold separately. The HR9-SZ002 is purely an installation kit (fascia, harness adaptor, antenna adaptor, and camera retention) designed to make that head unit fit cleanly into your Swift's dash.
Will this kit retain my Suzuki Swift's factory steering wheel controls?
Yes, in most cases. The included audio interface retains steering wheel audio button functions with compatible aftermarket radios including the Pioneer DMH-AP6650BT. The interface also stores its memory if power is disconnected.
Do I need to cut or splice any factory wiring?
No — the HR9-SZ002 is a plug-and-play kit. The harness connects directly to your Swift's factory 20-pin connector and converts to a standard ISO plug, so the install is clean and reversible with no permanent wiring modifications.
Will my factory reverse camera still work after installation?
In most instances, yes — the kit includes a reverse camera retention interface. However, Stinger notes that some vehicles may require the interface harness to be modified or re-wired. Always compare the included harness against your factory connector before plugging in.
Does this kit retain the factory AUX or USB ports?
No — AUX/USB retention is not included with the HR9-SZ002. If retaining factory AUX or USB connectivity is a requirement for your build, you will need a separate AUX/USB retention harness compatible with the Suzuki Swift.
