Stinger HR9-VW001 | Radio Replacement Kit to Suit Pioneer DMH-AP6650BT 9" Head Unit for Volkswagen Golf 2009-2013
Radio Replacement Bundle Volkswagen Golf MK6 2009–2013 for Pioneer DMH-AP6650BT 9". Flush Fit Fascia, SWC Interface, Antenna Adaptor. 40-Pin Quadlock.
Product Overview
The Stinger HR9-VW001 is a complete radio replacement bundle for installing the Pioneer DMH-AP6650BT 9-inch head unit into a 2009–2013 Volkswagen Golf (MK6). Unlike the universal SF9-001 and SF9-002 mounting kits, the HR9-VW001 is vehicle-specific to the Golf MK6 and includes three components in a single bundle: a 9-inch flush fit radio panel, a plug-and-play steering wheel control (SWC) interface with patch lead that retains factory audio controls on the Golf MK6 steering wheel, and an antenna adaptor for the VW Fakra antenna system. The flush fit panel is a key differentiator from the SF9-001/SF9-002 kits the Pioneer DMH-AP6650BT sits flush rather than forward of the factory dash panel when installed using the HR9-VW001.
The SWC interface retains memory even if power is lost and provides Nav Outputs (Reverse, Park, VSS). The harness uses the VW 40-pin Quadlock connector for direct plug-and-play connection to the Golf MK6 factory loom. However, there are two important limitations: the factory amplifier is not retained (models equipped with a factory amplifier are not compatible), and AUX/USB retention is not included. The Pioneer DMH-AP6650BT head unit is not included this is the installation hardware bundle only.

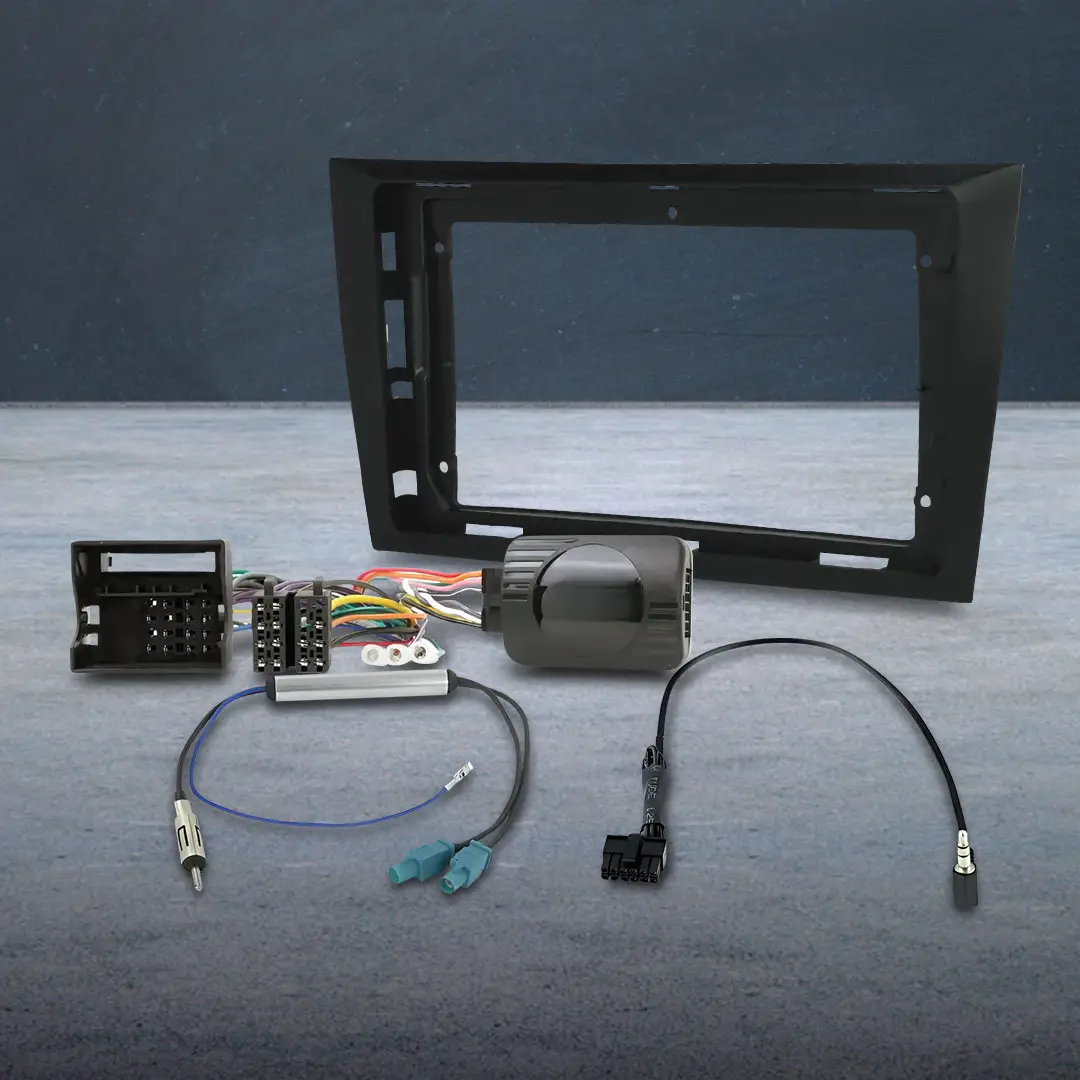

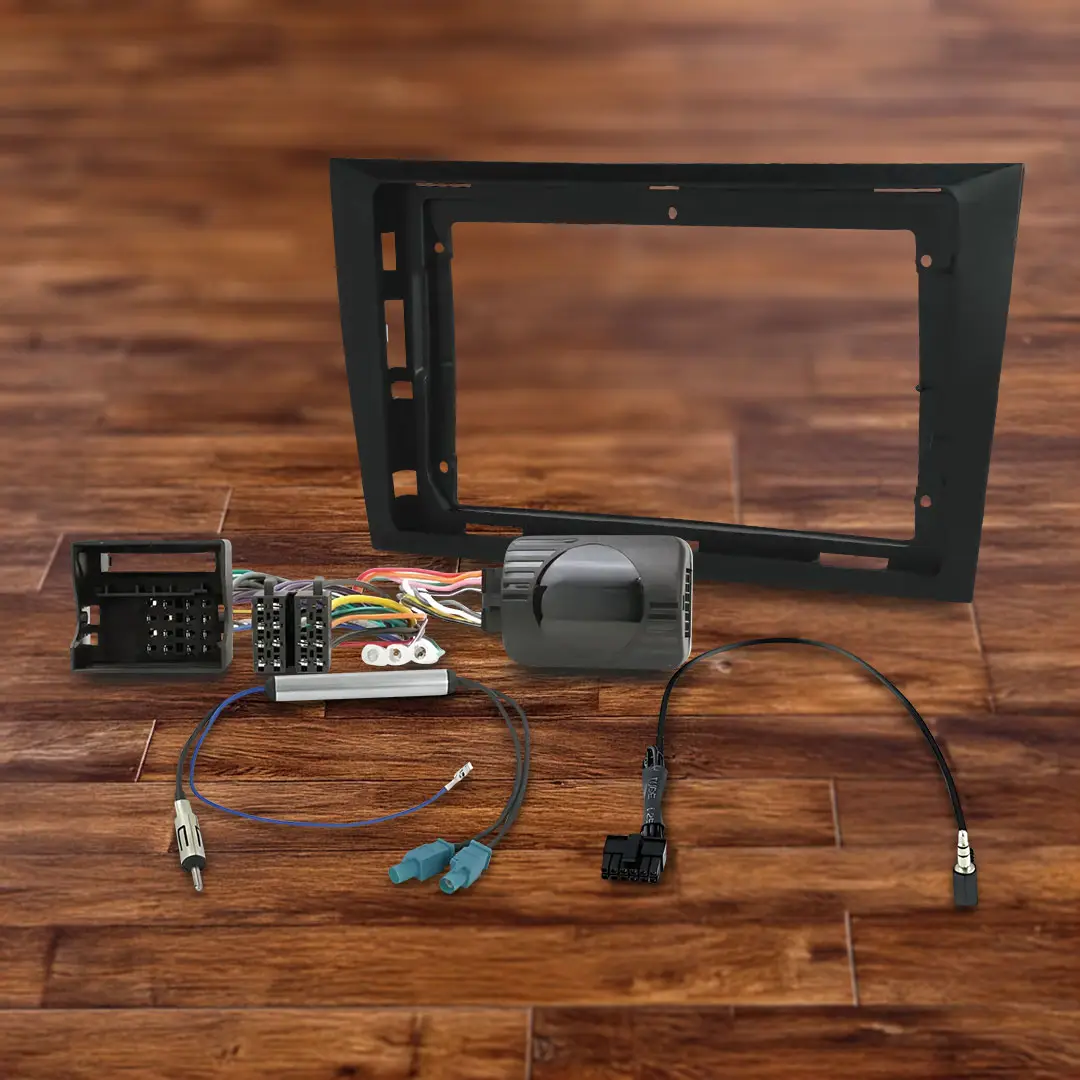

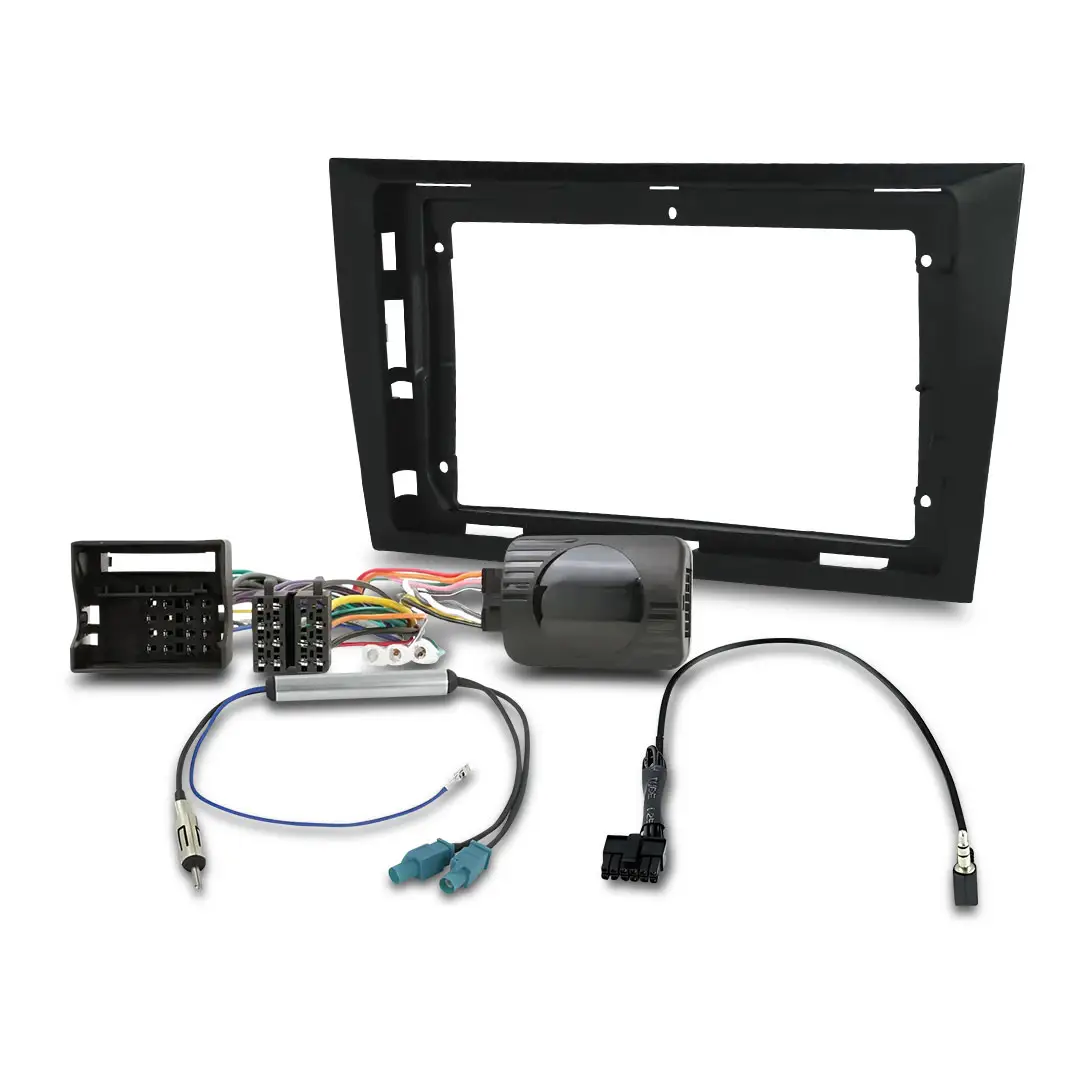

What's in the Box

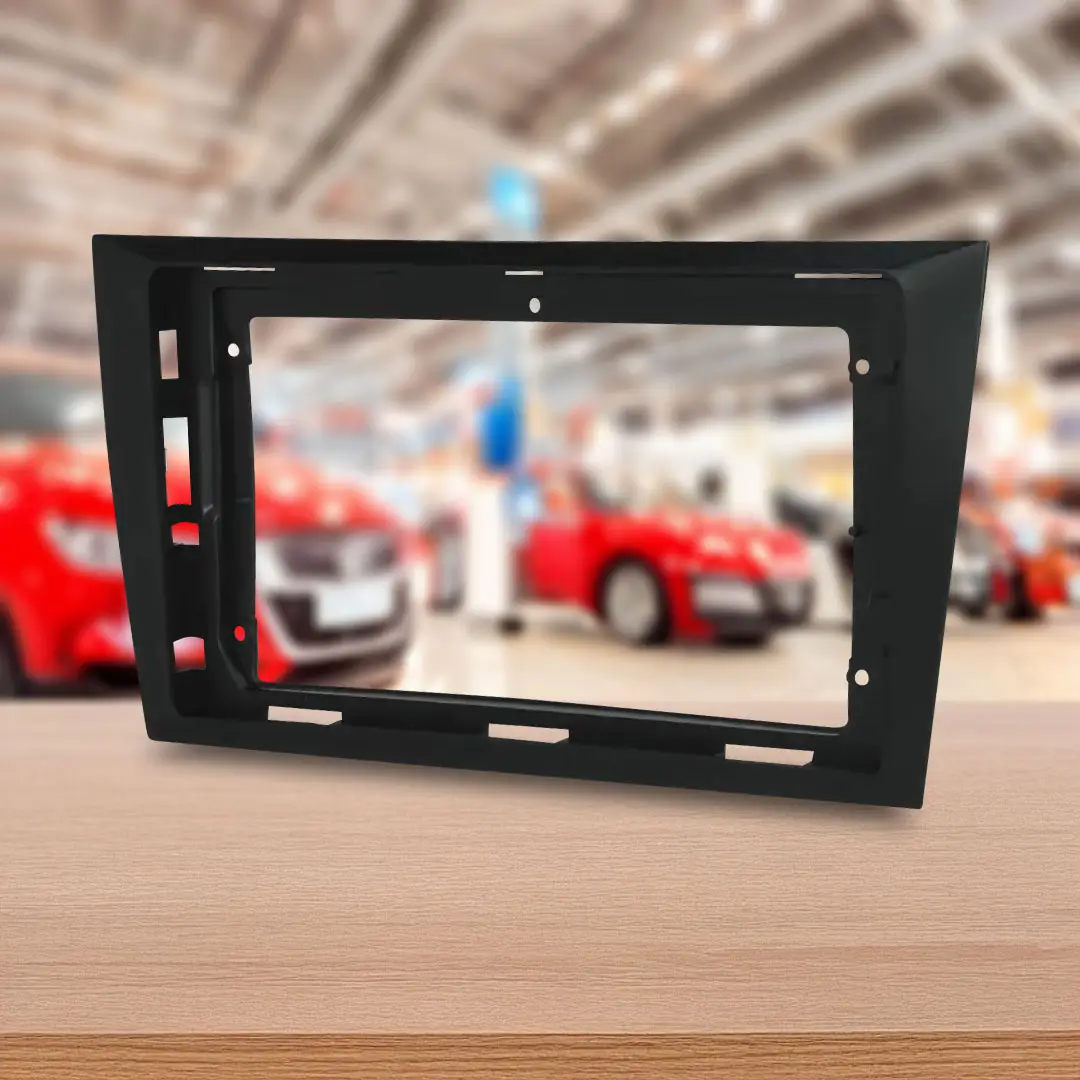

- 9-inch flush fit radio panel (Golf MK6 specific)

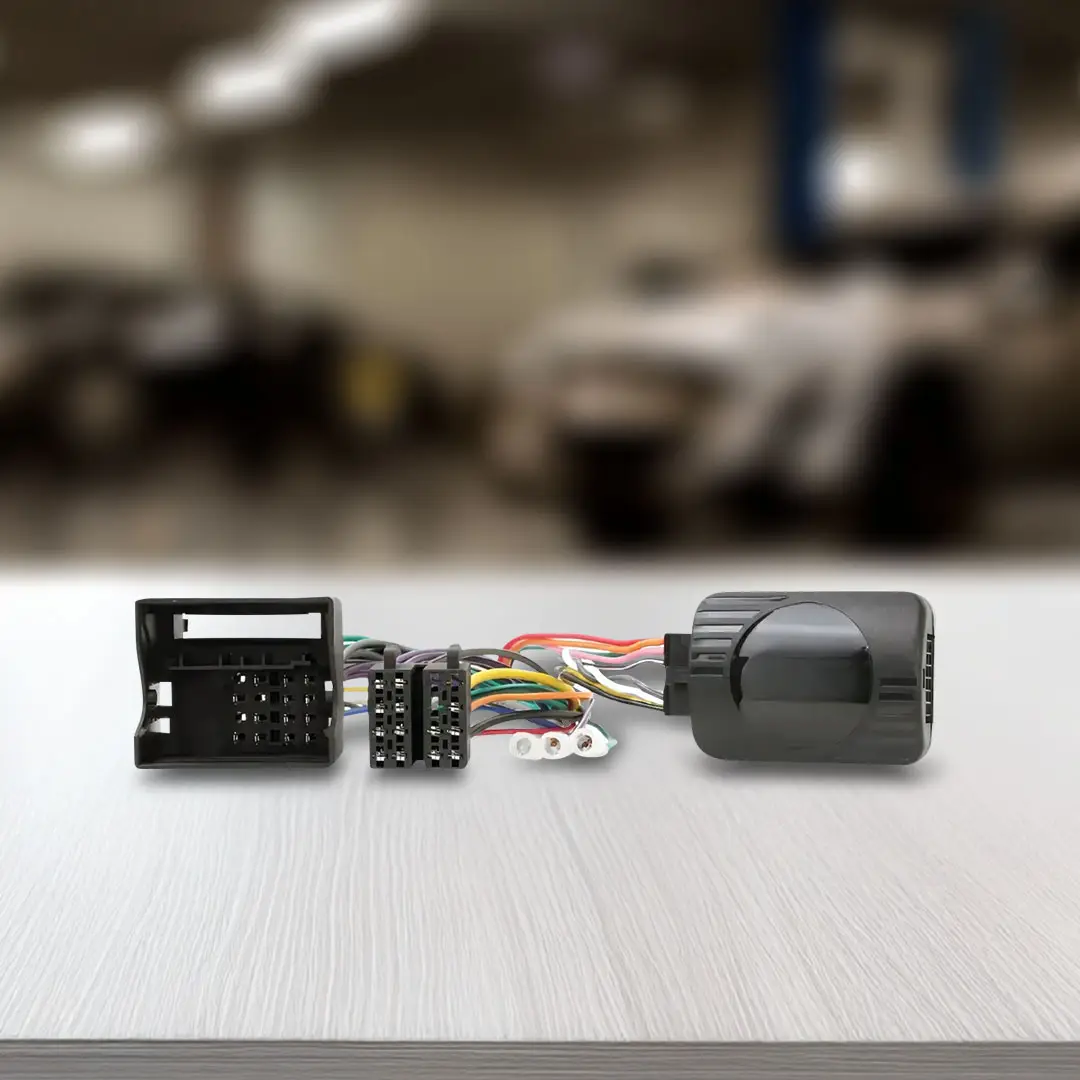

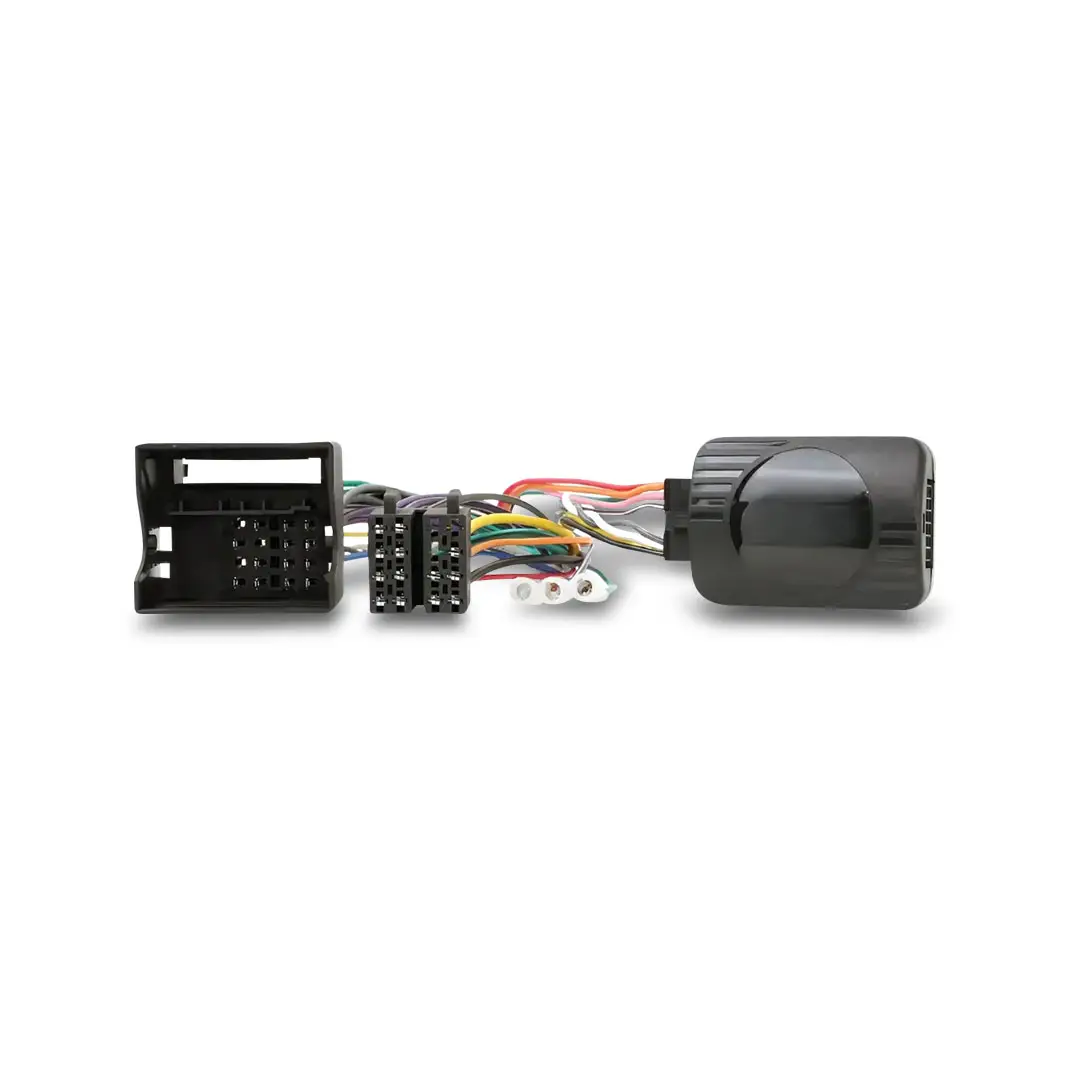

- Steering wheel control (SWC) interface and patch lead

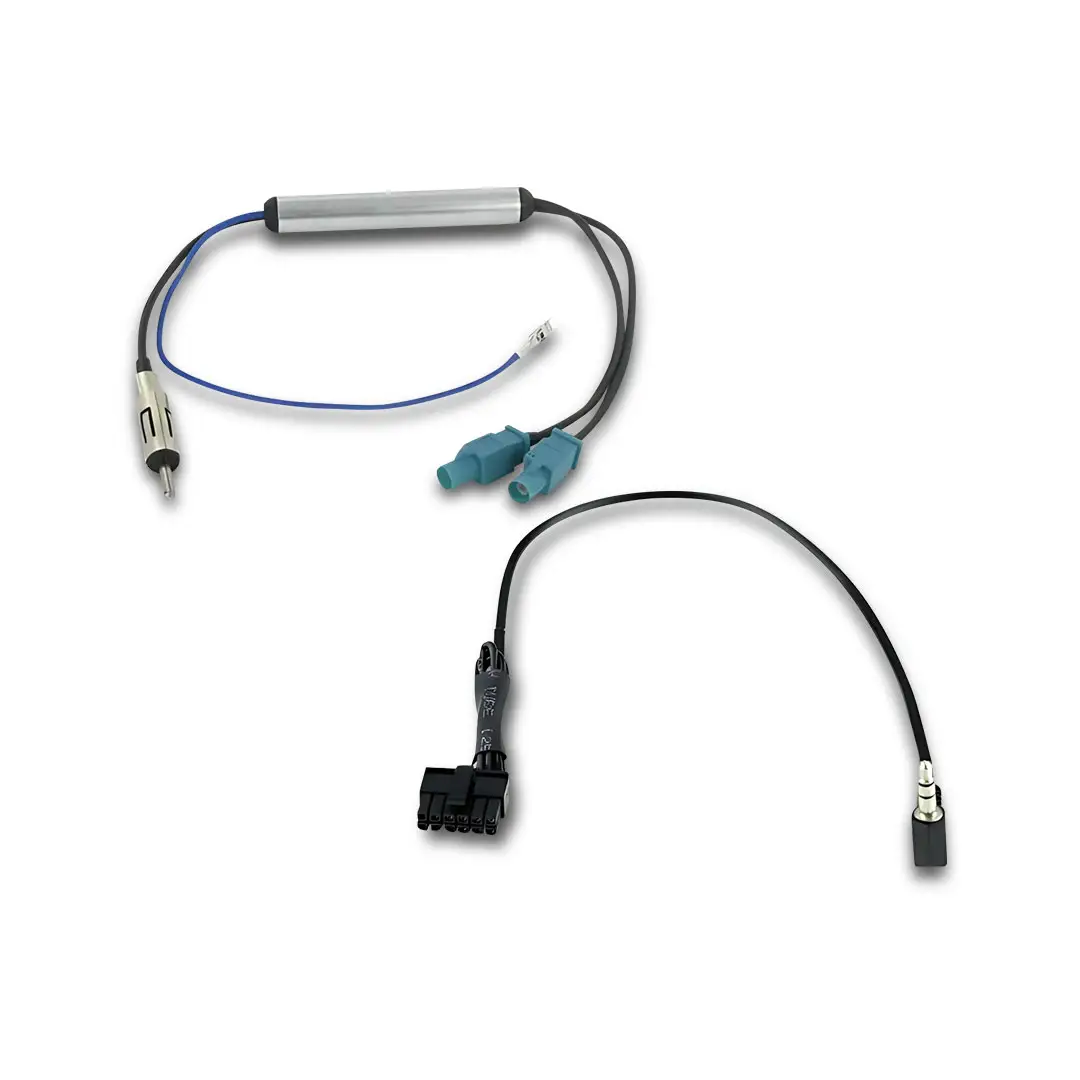

- Antenna adaptor
Key Specifications
| Specification | Detail |
|---|---|
| Part Number | HR9-VW001 |
| Brand | Stinger |
| Vehicle | Volkswagen Golf MK6 2009–2013 |
| Compatible Head Unit | Pioneer DMH-AP6650BT (9-inch) |
| Head Unit Included | No |
| Fascia Type | 9-inch flush fit panel |
| Vehicle Connector | 40-pin Quadlock (VW factory) |
| Harness Type | Plug and play — factory to standard ISO |
| Antenna Adaptor | Yes — included |
| SWC Interface | Yes — included (retains factory audio controls) |
| SWC Memory Retention | Yes — retains memory if power is lost |
| Nav Outputs | Yes — Reverse, Park, VSS |
| AUX/USB Retention | No |
| Factory Amplifier | Not retained — not compatible with factory amp vehicles |
| Colour | Black |
Features & Benefits
- Complete Golf MK6 Installation Bundle The HR9-VW001 combines the three most essential accessories for a Golf MK6 DMH-AP6650BT installation — flush fit fascia, SWC interface, and antenna adaptor — in a single purchase, reducing the risk of incorrect component selection.
- Flush Fit Panel — Not Forward-Mounted Unlike the universal SF9-001 and SF9-002 mounting kits, the HR9-VW001 flush fit panel allows the Pioneer DMH-AP6650BT to sit flush with the Golf MK6 factory dash panel — providing a cleaner, more factory-like appearance.
- Plug and Play 40-Pin Quadlock Harness VW uses a 40-pin Quadlock connector throughout the Golf MK6 range. The HR9-VW001 harness is plug-and-play from factory Quadlock to standard ISO — no wire cutting or modification required.
- SWC Interface — Retains Golf MK6 Steering Wheel Audio Controls The included SWC interface retains factory steering wheel audio control buttons with compatible aftermarket radios. Memory retention even after power loss prevents the need to reprogram after a battery disconnect.
- Nav Outputs Provided The SWC interface provides Reverse, Park, and VSS (vehicle speed signal) outputs — required for navigation functions in Pioneer head units that use these inputs.
- Antenna Adaptor Included The VW Fakra antenna adaptor is included — a mandatory component for VW installations that is often overlooked and purchased separately.
- Factory Amplifier Not Retained — Check Before Purchasing This kit is not compatible with Golf MK6 models equipped with a factory amplifier. Confirm the vehicle does not have a factory amplified audio system before purchasing.
Compatible With / Goes Well With
Vehicle compatibility:
| Make | Model | Year Range | Series |
|---|---|---|---|
| Volkswagen | Golf (incl. GTI) | 2009–2013 | MK6 |
Not compatible with:
- Golf MK6 models equipped with a factory amplifier
- Golf MK5 or MK7 (different connectors and dashboard)
Head unit:
- Pioneer DMH-AP6650BT (9-inch) — not included
Not included — sold separately:
- Pioneer DMH-AP6650BT head unit
- Factory amplifier retention (not available for this kit)
- AUX/USB retention
Frequently Asked Questions
Is the Pioneer DMH-AP6650BT head unit included?
No — the HR9-VW001 is the installation hardware bundle only. The Pioneer DMH-AP6650BT head unit must be purchased separately.
Will my Golf MK6 steering wheel controls work after installation?
Yes — the HR9-VW001 includes a plug-and-play SWC interface that retains factory steering wheel audio control buttons with compatible aftermarket radios, including the Pioneer DMH-AP6650BT.
Is the HR9-VW001 compatible with Golf MK6 models that have a factory amplifier?
No — the HR9-VW001 does not retain the factory amplifier. This bundle is not compatible with Golf MK6 variants equipped with a factory amplified audio system.
Is the antenna adaptor included?
Yes — the Stinger HR9-VW001 includes the VW Fakra antenna adaptor required for VW Golf MK6 installations.
What is the difference between the HR9-VW001 and the SF9-VW03?
The SF9-VW03 is a fascia panel only for the VW Golf MK6. The HR9-VW001 is a complete installation bundle combining a flush fit fascia, SWC interface, and antenna adaptor specifically for the Pioneer DMH-AP6650BT — it provides more components in a single purchase and delivers a flush fit rather than a forward-mounted result.
