Stinger HRSZ001 Suzuki Swift 06-10 Radio Replacement Package

Stinger HRSZ001 Plug & Play Radio Replacement Kit for Suzuki Swift 2006–2010

Upgrade your Suzuki Swift's factory radio to a modern 2DIN aftermarket unit while keeping your factory steering wheel audio controls and OEM connectors intact.

Product Overview

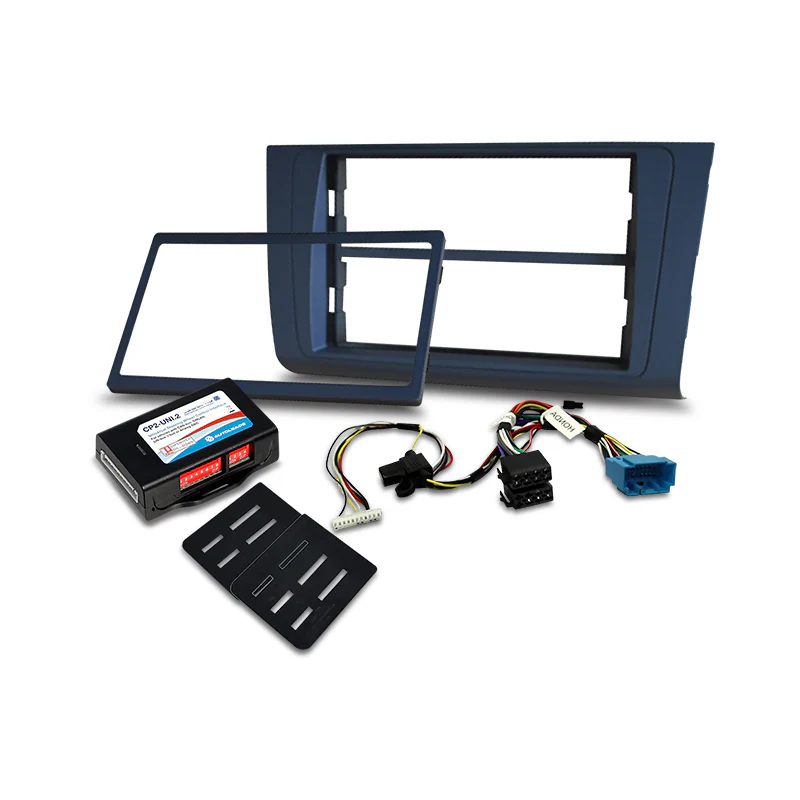

The Stinger HRSZ001 is a vehicle-specific radio replacement kit designed for the Suzuki Swift RS416 series (2006–2010). It includes everything needed to install most aftermarket 2DIN head units into the factory dash opening, with a plug-and-play vehicle to ISO harness and the Autoleads CP2-UNI.2 vehicle interface for SWC retention.

The kit uses factory OEM connectors throughout and is compatible with most aftermarket ISO harnesses (not included). Universal mounting brackets are provided, though some installations may require the use of the factory radio brackets already in the vehicle.

Please note: The HRSZ001 may not retain factory answer/hang-up or voice recognition buttons on the steering wheel audio SWC buttons are retained. For some vehicles, OEM radio brackets from the factory installation may be required, and new holes may need to be drilled.

Features & Benefits

• Plug & play — factory connector to standard ISO connector
• Retains factory steering wheel audio control buttons
• OEM harness and connectors — compatible with most aftermarket ISO harnesses
• Includes Autoleads CP2-UNI.2 vehicle interface for SWC retention
• Universal mounting brackets included
• Vehicle-specific fascia kit compatible with 2DIN radios
• Includes 2DIN dash trim ring
• Black finish

Technical Specs

Compatible With / Goes Well With

Direct Vehicle Fit:

• Suzuki Swift 2006–2010 (RS416)

Goes Well With:

• Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC)
• Aftermarket ISO harness (not included — required for head unit connection)
• Aftermarket antenna adaptor (not included — may be required depending on head unit)

Frequently Asked Questions

Will all my steering wheel buttons work after installation?

The HRSZ001 retains factory steering wheel audio control buttons. However, answer/hang-up and voice recognition buttons on the steering wheel may not be retained — this depends on your specific vehicle and aftermarket head unit combination.

Is an antenna adaptor included?

No. The HRSZ001 does not include an antenna adaptor. Depending on your aftermarket head unit's antenna connector type, an additional adaptor may be required.

Do I need to purchase an ISO harness separately?

Yes. The HRSZ001 includes a plug-and-play vehicle to ISO harness, but the aftermarket head unit ISO harness is not included and will need to be sourced separately to match your chosen head unit.

What mounting brackets does this kit use?

Universal mounting brackets are included with the kit. For some Suzuki Swift installations, the OEM radio brackets already in the vehicle may need to be used instead, and new holes may need to be drilled. Check your specific installation before committing to either bracket option.

Is this kit compatible with all 2006–2010 Suzuki Swift variants?

The HRSZ001 is specified for the Suzuki Swift RS416 series (2006–2010). For confirmation of compatibility with your specific variant or trim level, contact the F.A.E. team before purchasing.
