Stinger HRTY001 Toyota Radio Replacement Kit
Stinger HRTY001 Plug & Play Radio Replacement Kit for Toyota Vehicles with 20-Pin SWC
One kit, twenty Toyota models drop in your aftermarket head unit and keep your steering wheel controls fully operational with advanced short press / long press button mapping.
Product Overview
The Stinger HRTY001 is a vehicle-specific radio replacement kit engineered for a wide range of Toyota models (2000–2019) equipped with a 20-pin steering wheel control connection. It delivers a true plug-and-play installation via a factory connector to standard ISO connector harness, with no cutting or splicing required.
At the heart of the HRTY001 is an advanced SWC interface that goes well beyond basic button retention. It supports dual-function assignment allowing two radio functions to be mapped to a single steering wheel button via short press and long press and is configurable via PC, dip switch, or manual programming. A tri-colour LED provides real-time status feedback, and the module retains its memory even if power is lost.
Features & Benefits
- Plug & play — factory connector to standard ISO connector
- Retains steering wheel audio controls (20-pin SWC connection)
- Dual-function SWC assignment — two radio functions per button (short press / long press)
- Configurable via PC (Autoleads app), dip switch, or manual programming
- Manual learning function for compatibility with unlisted analog SWC vehicles
- Provides accessory output in CAN Bus vehicles
- Tri-colour LED status indicator
- Retains memory even if power is lost
- Updatable via Autoleads PC Application
- Black finish
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Number | HRTY001 |
| Brand | Stinger |
| Colour / Finish | Black |
| Plug & Play | Yes — Factory Connector to Standard ISO Connector |
| SWC Connection Type | Toyota 20-Pin SWC |
| Steering Wheel Control Retention | Yes |
| SWC Programming Options | PC (Autoleads App), Dip Switch, Manual |
| Dual-Function SWC Mapping | Yes — Short Press / Long Press per button |
| CAN Bus Accessory Output | Yes |
| Memory Retention (power loss) | Yes |
| Field Updatable | Yes — via Autoleads PC Application |
| Antenna Adaptor Included | No |
| AUX / USB Retention | No — Additional product may be required |
| Factory Reverse Camera Retention | No — Additional product may be required |

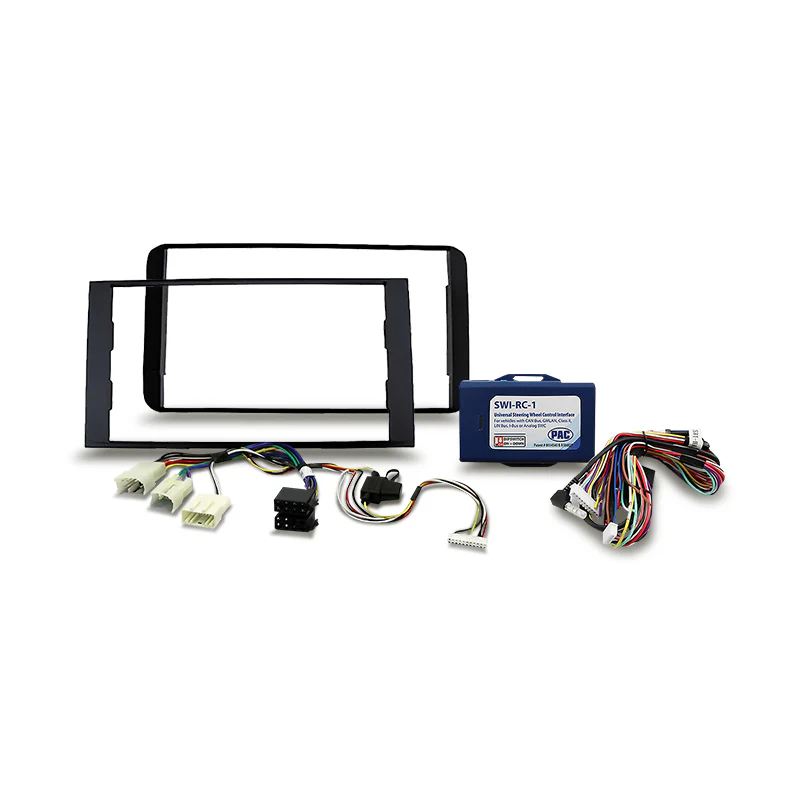

| What's in the Box | 2DIN Radio Panel, Steering Wheel Audio Buttons Adaptor |
Compatible With / Goes Well With
Direct Vehicle Fit (Toyota 20-Pin SWC vehicles):
- Toyota Celica 2000–2005 (T230 Series)
- Toyota Corolla 2003–2009 (E140–E160 Series)
- Toyota Corolla 2009–2012 (E120 Series)
- Toyota Echo 2000–2004 (XP10 Series)
- Toyota Hiace 2005–2019 (H200 Series)
- Toyota Hilux 2005–2010 (AN10/AN20/AN30 Series)
- Toyota Hilux 2011–2013 (AN10/AN20/AN30 Series)
- Toyota Kluger 2003–2006 (XU20 Series)
- Toyota Kluger 2007–2013 (XU40 Series)
- Toyota LandCruiser 2001–2008 (100 Series)
- Toyota LandCruiser 2002–2009 (120 Series)
- Toyota LandCruiser 2008–2012 (200 Series)
- Toyota MR2 2000–2005 (W30 Series)
- Toyota RAV4 2001–2005 (XA20 Series)
- Toyota RAV4 2006–2011 (XA30 Series)
- Toyota RAV4 2012–2013 (XA40 Series)
- Toyota Rukus 2010–2014 (E150 Series)
- Toyota Tarago 2005–2017 (XR50 Series)
- Toyota Yaris 2005–2011 (XP90 Series)
- Toyota Yaris 2012–2014 (XP90 Series)
Goes Well With:
- Aftermarket double DIN head units (Pioneer, Kenwood, Sony, JVC)
- Autoleads PC Application (for advanced SWC programming and firmware updates)
- Aftermarket reverse camera module (if reverse camera retention is required)
- AUX/USB retention module (if factory AUX/USB retention is required)
Frequently Asked Questions
Does the HRTY001 work with all Toyota vehicles?
No. The HRTY001 is specifically designed for Toyota vehicles equipped with a 20-pin steering wheel control connection. Refer to the compatibility list to confirm your model and year before purchasing.
Can I assign multiple functions to one steering wheel button?
Yes. The HRTY001 supports dual-function mapping, allowing two separate radio functions to be assigned to a single button using short press and long press inputs.
How do I program the steering wheel controls?
The HRTY001 offers three programming methods: via PC using the Autoleads application, via dip switch settings, or via manual programming directly on the module. It also includes a manual learning function for unlisted analog SWC vehicles.
Does this kit include an antenna adaptor?
No. The HRTY001 does not include an antenna adaptor. If your vehicle requires one, an additional antenna adaptor will need to be sourced separately.
Does this kit retain the factory reverse camera or AUX/USB?
No. Reverse camera retention and AUX/USB retention are not included with the HRTY001. Additional products may be required to retain these features with your new aftermarket head unit.
