Stinger SF9-001 | Universal Double DIN Dash Kit to Suit Pioneer DMH-AP6650BT 9″ Head Unit

Universal Double DIN Dash and Mounting Kit Engineered for the Pioneer DMH-AP6650BT 9" Head Unit. Mounting Panel, Metal Brackets, Spacers, and Hardware Included. Opening: 183mm × 105mm. Head Unit Not Included.

---

Product Overview

The Stinger SF9-001 is a universal double DIN dash and mounting kit engineered specifically for the Pioneer DMH-AP6650BT 9-inch floating-screen head unit. Like the SF9-002, the SF9-001 provides the mounting panel, metal brackets, spacers, and hardware required to install the Pioneer DMH-AP6650BT the key difference being the opening dimensions. The SF9-001 is designed for an internal opening of 183mm × 105mm, while the SF9-002 is designed for 183mm × 113mm. Both cover the same head unit and have the same contents; the dimension difference determines which applies to the specific vehicle or dashboard opening. Confirm the vehicle's existing or planned opening dimensions against the SF9-001's 183mm × 105mm internal measurement before purchasing.

As with the SF9-002, the Pioneer DMH-AP6650BT will sit forward of the factory dash panel when installed using the SF9-001. This is inherent to the floating-screen design of the DMH-AP6650BT and the double DIN mounting approach not a fitment issue, but a characteristic buyers and installers should confirm is acceptable for the specific installation before purchasing. The Pioneer DMH-AP6650BT head unit is not included.

---

Key Specifications

• Part number: SF9-001
• Brand: Stinger
• Product type: Universal double DIN dash and mounting kit
• Compatible head unit: Pioneer DMH-AP6650BT (9-inch)
• Opening dimensions: 183mm × 105mm (internal)
• Includes: Mounting panel, metal brackets, spacers, hardware
• Head unit: Not included
• Installation note: Head unit will sit forward of the factory dash panel — not flush

---

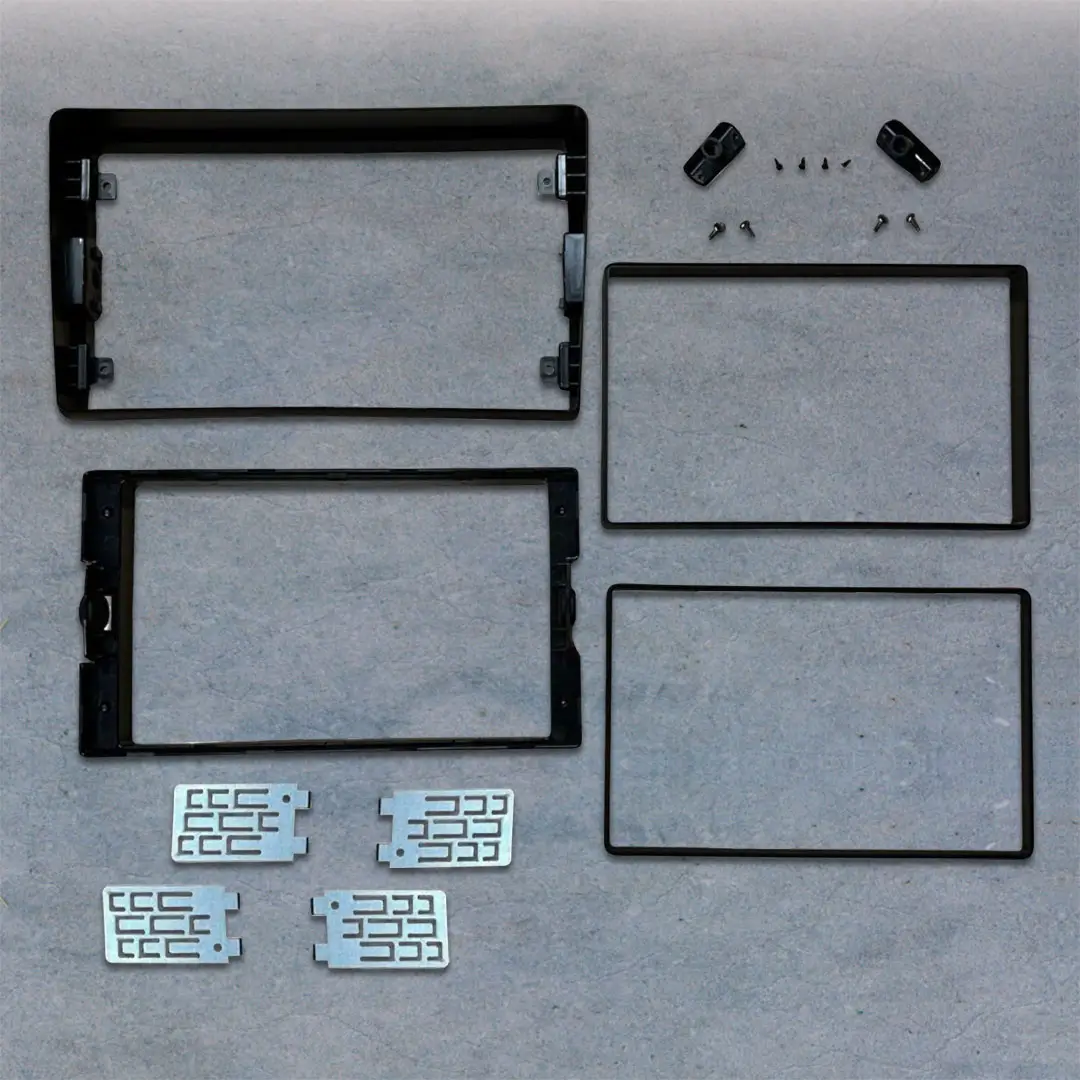

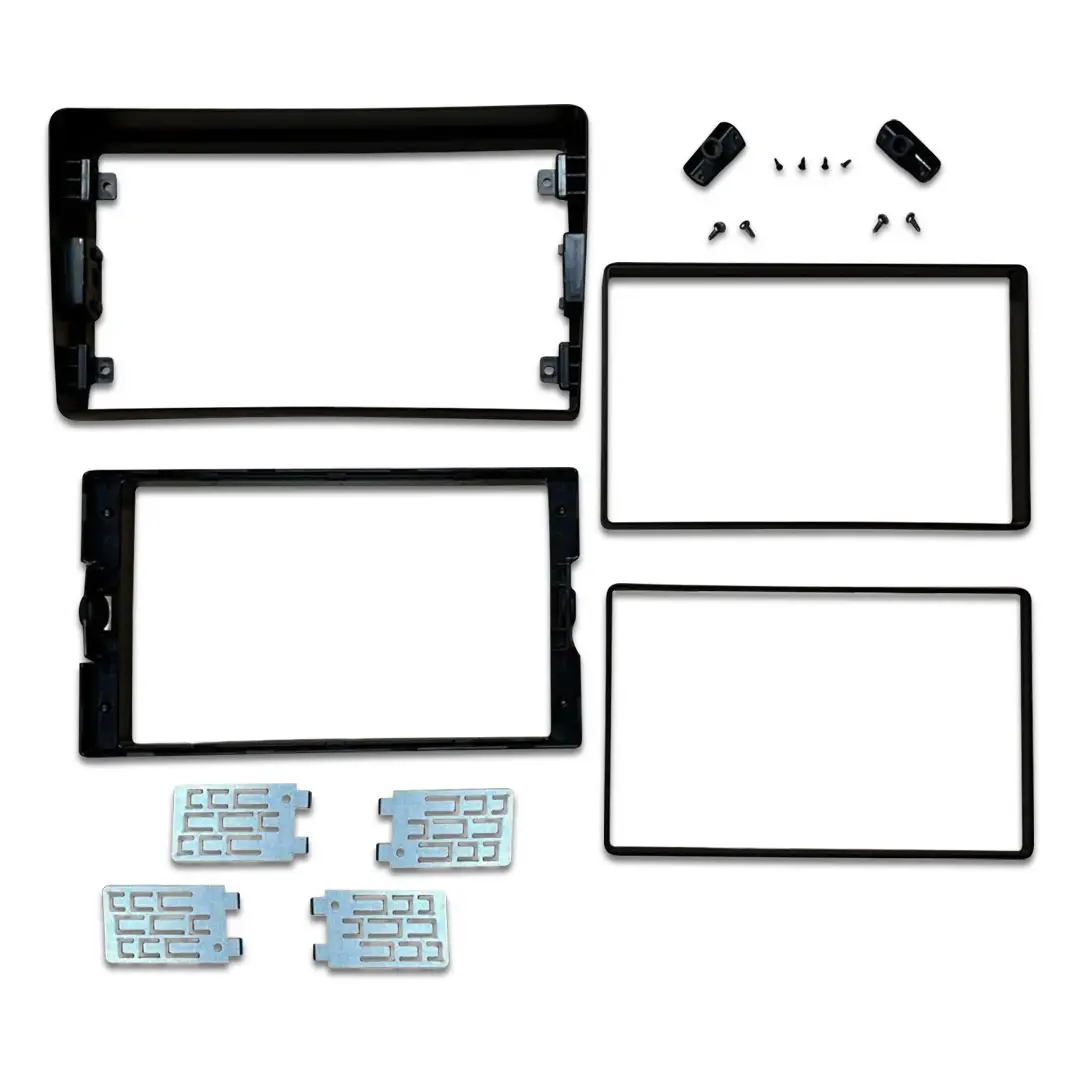

What's in the Box

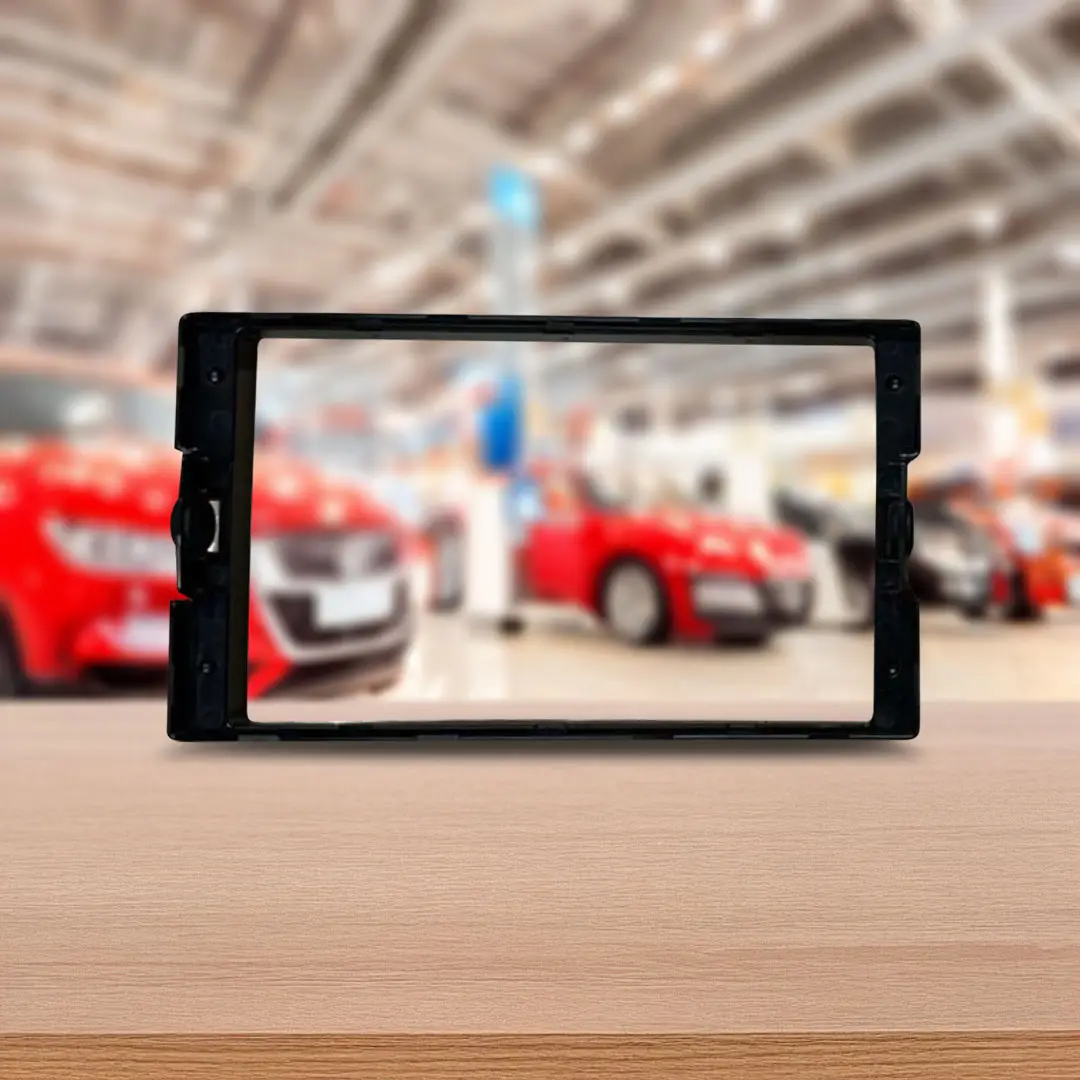

• Mounting panel for 9-inch head unit
• Metal brackets

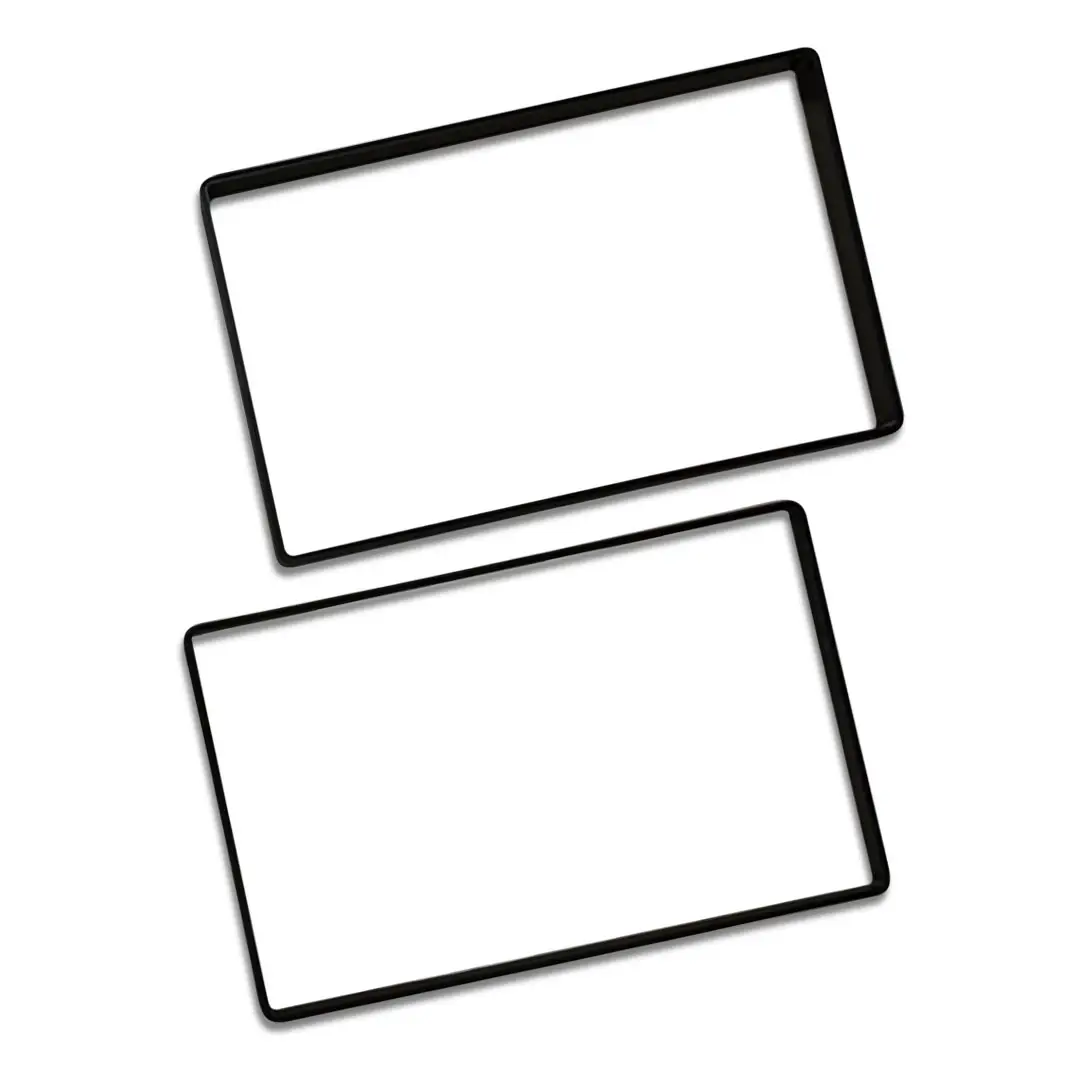

• Spacers
• Hardware (screws/fasteners)

---

Features & Benefits

• Engineered for Pioneer DMH-AP6650BT — 183mm × 105mm Opening The SF9-001 is designed around the Pioneer DMH-AP6650BT's mounting requirements for a 183mm × 105mm internal opening. Confirm the vehicle's existing or planned opening matches this dimension before purchasing — for 183mm × 113mm openings, use the SF9-002 instead.
• Complete Hardware Kit Mounting panel, metal brackets, spacers, and all necessary hardware are included — providing everything required for a secure physical installation of the head unit.
• Forward-Mounting Profile — Important Note The Pioneer DMH-AP6650BT screen will sit forward of the factory dash panel when using the SF9-001. This is by design for the floating-screen format — confirm this is acceptable before purchasing.
• Universal Application Not vehicle-specific — applies wherever a double DIN opening of 183mm × 105mm exists and the Pioneer DMH-AP6650BT is the chosen head unit.

---

Technical Specs

---

SF9-001 vs SF9-002 — Dimension Comparison

Confirm the vehicle's opening dimensions before purchasing. Both kits cover the same head unit with identical package contents — the dimension is the only variable.

---

Compatible With / Goes Well With

Head unit compatibility:

• Pioneer DMH-AP6650BT (9-inch floating-screen)

Recommended accessories (sold separately):

• Pioneer DMH-AP6650BT head unit
• Vehicle-specific wiring harness
• Antenna adaptor
• Steering wheel control interface

---

Frequently Asked Questions

What is the difference between the SF9-001 and SF9-002?

Both kits are for the Pioneer DMH-AP6650BT with identical package contents. The SF9-001 is for a 183mm × 105mm internal opening; the SF9-002 is for a 183mm × 113mm internal opening. Measure the vehicle's dashboard opening and select the kit that matches.

Will the head unit sit flush with the dashboard?

No — when using the SF9-001, the Pioneer DMH-AP6650BT will sit forward of the factory dash panel. This is inherent to the floating-screen design. Confirm this is acceptable for the installation before purchasing.

Is the Pioneer DMH-AP6650BT head unit included?

No — the SF9-001 is the mounting and fascia hardware kit only. The Pioneer DMH-AP6650BT head unit must be purchased separately.

What is included in the SF9-001?

The SF9-001 includes a mounting panel, metal brackets, spacers, and all necessary hardware.

Is the SF9-001 confirmed compatible with other 9-inch head units?

The SF9-001 is specifically engineered for the Pioneer DMH-AP6650BT. Compatibility with other head unit models is not confirmed — verify with Stinger before using with a different unit.
