Stinger SF9-002 | Universal Double ISO Fascia Kit to Suit Pioneer DMH-AP6650BT 9″ Head Unit

Universal Double ISO Fascia and Mounting Kit Engineered for the Pioneer DMH-AP6650BT 9" Head Unit. Mounting Panel, Metal Brackets, Spacers, and Hardware Included. Head Unit Not Included.

---

Product Overview

The Stinger SF9-002 is a universal double ISO fascia and mounting kit engineered specifically for the Pioneer DMH-AP6650BT 9-inch floating-screen head unit. Where vehicle-specific trapezoid fascias (such as the SF9 range) are designed to integrate a head unit into a particular vehicle's factory dashboard opening, the SF9-002 addresses the mounting challenge at the head unit level providing the correct panel, metal brackets, spacers, and hardware to mount the Pioneer DMH-AP6650BT in a double ISO opening measuring 183mm × 113mm internally. The kit is universal rather than vehicle-specific, designed for use wherever a double ISO mounting solution is required for this Pioneer unit.

An important installation note: when using the SF9-002, the Pioneer DMH-AP6650BT head unit will sit forward of the factory dash panel rather than flush-mounted. This is inherent to the floating-screen design of the DMH-AP6650BT and the double ISO mounting approach buyers and installers should be aware of this before purchasing. The Pioneer DMH-AP6650BT head unit is not included the SF9-002 is the mounting and fascia hardware kit only.

---

Key Specifications

• Part number: SF9-002
• Brand: Stinger
• Product type: Universal double ISO fascia and mounting kit
• Compatible head unit: Pioneer DMH-AP6650BT (9-inch)
• Opening dimensions: 183mm × 113mm (internal)
• Includes: Mounting panel, metal brackets, spacers, hardware
• Head unit: Not included
• Installation note: Head unit will sit forward of the factory dash panel — not flush

---

What's in the Box

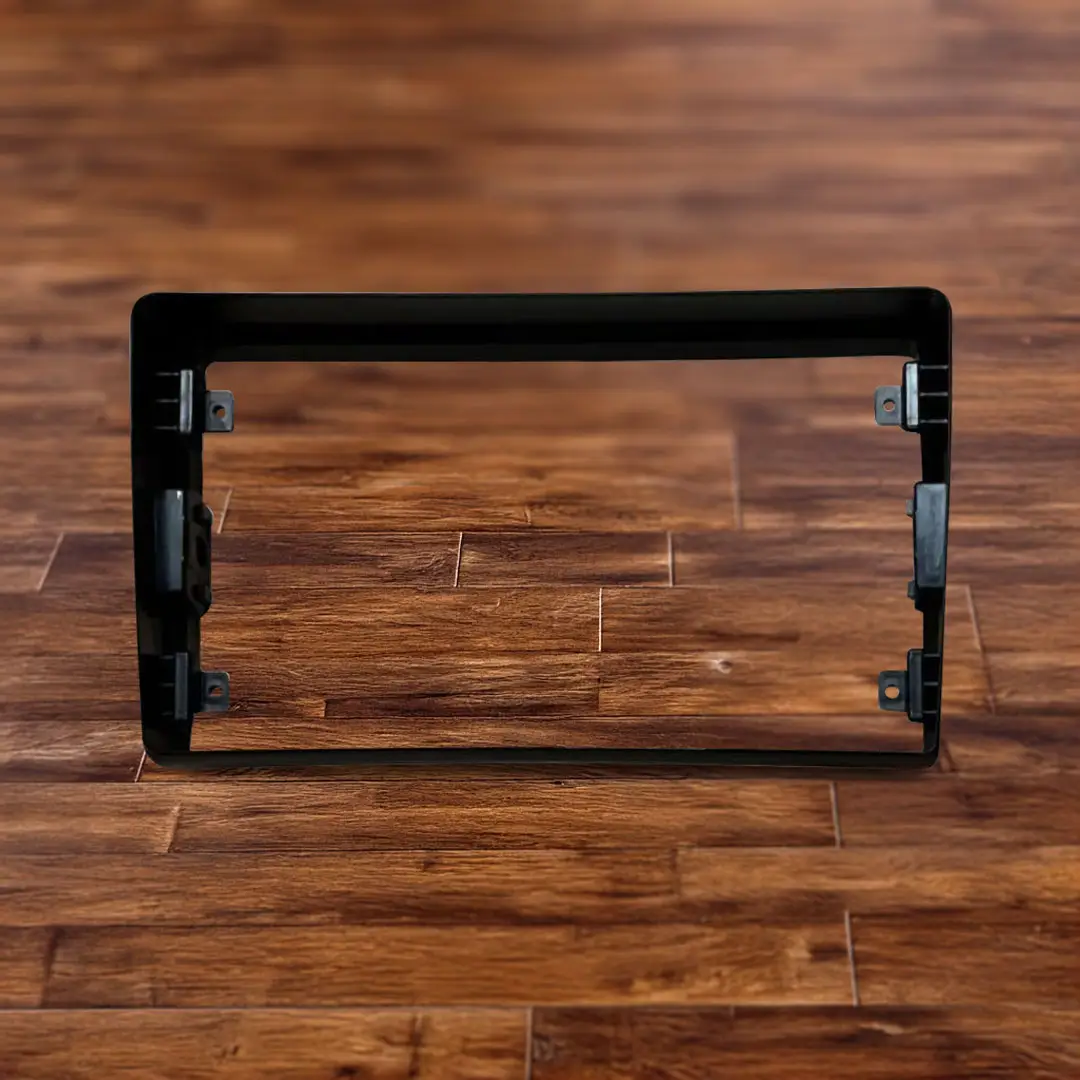

• Mounting panel for 9-inch head unit
• Metal brackets
• Spacers
• Hardware (screws/fasteners)

---

Features & Benefits

• Engineered for Pioneer DMH-AP6650BT The SF9-002 is specifically designed around the mounting requirements of the Pioneer DMH-AP6650BT 9-inch floating-screen head unit — providing correct dimensional fit, bracket alignment, and hardware for a secure installation.
• Double ISO Universal Mounting Universal double ISO format covers a broad range of vehicle applications where the factory dashboard opening accepts a double ISO head unit. Confirm the vehicle's existing or planned fascia opening dimensions match the SF9-002's 183mm × 113mm internal measurement before purchasing.
• Complete Hardware Kit Mounting panel, metal brackets, spacers, and all necessary hardware are included — providing everything required to mount the head unit physically, without requiring additional mounting hardware purchases.
• Forward-Mounting Profile — Important Note Due to the floating-screen design of the Pioneer DMH-AP6650BT and the double ISO mounting approach, the head unit screen will sit forward of the factory dash panel rather than flush. This is expected and by design, but buyers and installers should confirm this is acceptable for the specific installation before purchasing.

---

Technical Specs

---

Compatible With / Goes Well With

Head unit compatibility:

• Pioneer DMH-AP6650BT (9-inch floating-screen)

Recommended accessories (sold separately):

• Pioneer DMH-AP6650BT head unit
• Vehicle-specific wiring harness
• Antenna adaptor
• Steering wheel control interface

---

Frequently Asked Questions

Will the head unit sit flush with the dashboard?

No — when using the SF9-002, the Pioneer DMH-AP6650BT will sit forward of the factory dash panel. This is inherent to the floating-screen design of the DMH-AP6650BT and the double ISO mounting approach. Confirm this is acceptable for the specific installation before purchasing.

Is the Pioneer DMH-AP6650BT head unit included?

No — the SF9-002 is the mounting and fascia hardware kit only. The Pioneer DMH-AP6650BT head unit must be purchased separately.

What is included in the SF9-002?

The SF9-002 includes a mounting panel for the 9-inch head unit, metal brackets, spacers, and all necessary hardware.

What opening dimensions does the SF9-002 require?

The SF9-002 is designed for a double ISO opening with internal measurements of 183mm × 113mm. Confirm the vehicle's existing or planned fascia opening matches these dimensions before purchasing.

Is the SF9-002 compatible with other 9-inch head units?

The SF9-002 is specifically engineered for the Pioneer DMH-AP6650BT. Compatibility with other head unit models is not confirmed — verify with Stinger before purchasing for use with a different head unit.
