STINGER SF9-MZ02 9-Inch Trapezoid Fascia for 2015-2019 Mazda BT-50 UR Series
9-Inch Trapezoid Head Unit Fascia Mazda BT-50 UR Series 2015–2019. For Models with Factory 7-Inch Navigation WITHOUT 4.3-Inch Upper Display. Fascia Panel Only.
Product Overview

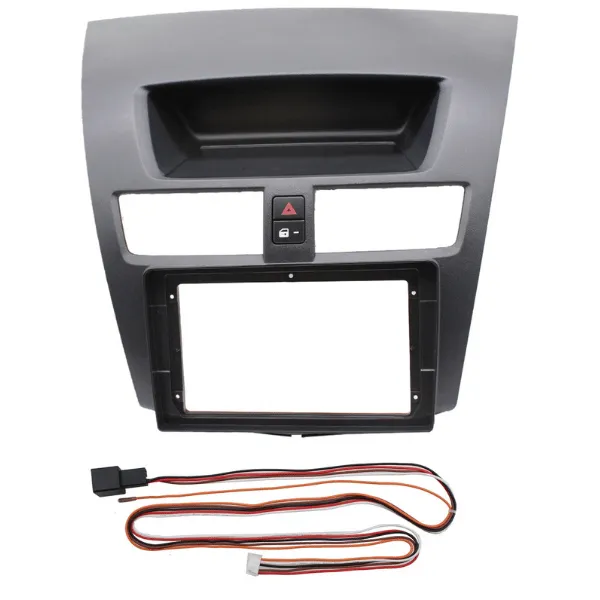

The Stinger SF9-MZ02 is a vehicle-specific 9-inch trapezoid head unit fascia designed for the Mazda BT-50 UR Series (2015–2019) equipped with a factory 7-inch navigation head unit and without a 4.3-inch multi-information display screen above the head unit area.
Key Specifications
- Part number: SF9-MZ02
- Brand: Stinger
- Product type: 9-inch trapezoid head unit fascia
- Compatible head unit format: 9-inch trapezoid only
- Finish: Mazda factory colour match with textured grain
- Vehicle: Mazda BT-50 UR Series 2015–2019
- Platform: Ford Ranger-based — Mazda-specific dashboard
- Factory equipment required: 7-inch navigation WITHOUT 4.3-inch upper display
- Not compatible with: BT-50 with 4.3-inch upper display / RG04 BT-50 2020–2023 (SF9-MZ03)
- Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
- Includes: Fascia panel only
- Wiring harness: Not included — sold separately
- Antenna adaptor: Not included — sold separately
- SWC interface: Not included — sold separately
- Camera retention harness: Not included — sold separately (required)
Features & Benefits
- 7-Inch Nav Without Upper Display — Physical Dashboard Inspection Required The SF9-MZ02 requires visual confirmation that the factory dashboard does not have a 4.3-inch display screen above the head unit area. Inspect the dashboard — if there is no small rectangular screen above the factory head unit, this fascia is compatible. If a small display is present above the head unit, a different fascia solution is needed.
- Ford Ranger Platform — But Mazda-Specific Dashboard The BT-50 UR Series shares the Ford Ranger platform but has a distinct Mazda dashboard design, interior trim, and control layout. Ford Ranger fascias will not fit the BT-50. The SF9-MZ02 is engineered exclusively for the Mazda BT-50 UR dashboard.
- Factory Navigation CAN-Bus Integration Note Factory navigation-equipped BT-50 models integrate vehicle settings, trip computer, and climate status through the factory head unit screen. After replacing the head unit, some of these functions may require CAN-bus integration modules for continued access. Physical controls (climate, cruise) remain operational; consult a professional installer for full feature compatibility.
- Camera Retention Harness Required All 2015+ BT-50 UR models are equipped with a factory reverse camera. A camera retention harness is required to maintain this functionality.
- Different from SF9-MZ03 The SF9-MZ02 covers the UR Series (2015–2019, Ford Ranger platform). The SF9-MZ03 covers the 3rd-generation RG04 (2020–2023, Isuzu platform). These are completely different vehicles with different dashboards.
Technical Specs
| Specification | Detail |
|---|---|
| Brand | Stinger |
| Part Number | SF9-MZ02 |
| Product Type | 9-Inch Trapezoid Head Unit Fascia |
| Compatible Format | 9-Inch Trapezoid Only |
| Finish | Mazda Factory Colour Match, Textured Grain |
| Vehicle | Mazda BT-50 UR Series 2015–2019 |
| Platform | Ford Ranger-based — Mazda-specific dashboard |
| Factory Equipment | 7-Inch Navigation WITHOUT 4.3-Inch Upper Display |
| Not Compatible | BT-50 with 4.3-inch upper display / RG04 BT-50 2020–2023 (SF9-MZ03) |
| Confirmed Head Units | Alpine INE-AW4095, INE-AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X |
| Includes | Fascia Panel Only |
| Wiring Harness | Not included |
| Antenna Adaptor | Not included |
| SWC Interface | Not included |
| Camera Retention Harness | Not included — required |
Compatible With / Goes Well With
Vehicle compatibility:
| Make | Model | Year Range | Factory Equipment |
|---|---|---|---|
| Mazda | BT-50 UR Series | 2015–2019 | 7-inch nav, no 4.3-inch upper display |
Not compatible with:
- Mazda BT-50 UR Series models with 4.3-inch upper display screen
- Mazda BT-50 RG04 Series 2020–2023 (requires SF9-MZ03)
- Ford Ranger (different dashboard despite shared platform)
Confirmed compatible 9-inch trapezoid head units:
- Alpine INE-AW4095
- Alpine INE-AX809
- Kenwood DMX80AXS
- Pioneer DMH-AP6650BT
- Aerpro AM9X
Required accessories (sold separately):
- Mazda BT-50 UR-specific wiring harness (Mazda-to-ISO)
- Antenna adaptor (Mazda proprietary to standard)
- Steering wheel control interface
- Reverse camera retention harness (required — all 2015+ models)
- CAN-bus integration module (may be required for vehicle settings display)
Frequently Asked Questions
How do I confirm my BT-50 is compatible with the SF9-MZ02?
Inspect the dashboard. If your BT-50 has a factory 7-inch navigation system with no small display screen above the head unit, the SF9-MZ02 is compatible. If a 4.3-inch screen is present above the head unit showing trip computer or vehicle information, a different fascia is required. If unsure, photograph the dashboard and confirm with Stinger or F.A.E. before purchasing.
What is the difference between the SF9-MZ02 and SF9-MZ03?
The SF9-MZ02 covers the BT-50 UR Series (2015–2019) built on the Ford Ranger platform. The SF9-MZ03 covers the 3rd-generation BT-50 RG04 (2020–2023) built on the Isuzu platform. These are different vehicles with completely different dashboards — verify your BT-50 model year before purchasing.
Does the SF9-MZ02 include wiring harnesses or installation accessories?
No — the SF9-MZ02 is a fascia panel only. A Mazda BT-50 UR-specific wiring harness, antenna adaptor, SWC interface, and reverse camera retention harness are all required separately. Factory navigation models may also require a CAN-bus integration module.
Will factory BT-50 functions be maintained after installation?
Physical climate controls and steering wheel buttons remain operational. Factory camera retains function through the retention harness. Some factory screen functions (vehicle settings, trip computer) may require CAN-bus integration for continued display through the aftermarket head unit — consult a professional installer for complete feature compatibility assessment.
Is professional installation recommended for the SF9-MZ02?
Yes — the BT-50 UR dashboard with factory navigation is a complex installation involving CAN-bus integration, factory navigation removal, and multiple retention harnesses. Professional installation by a qualified car audio installer is strongly recommended.
