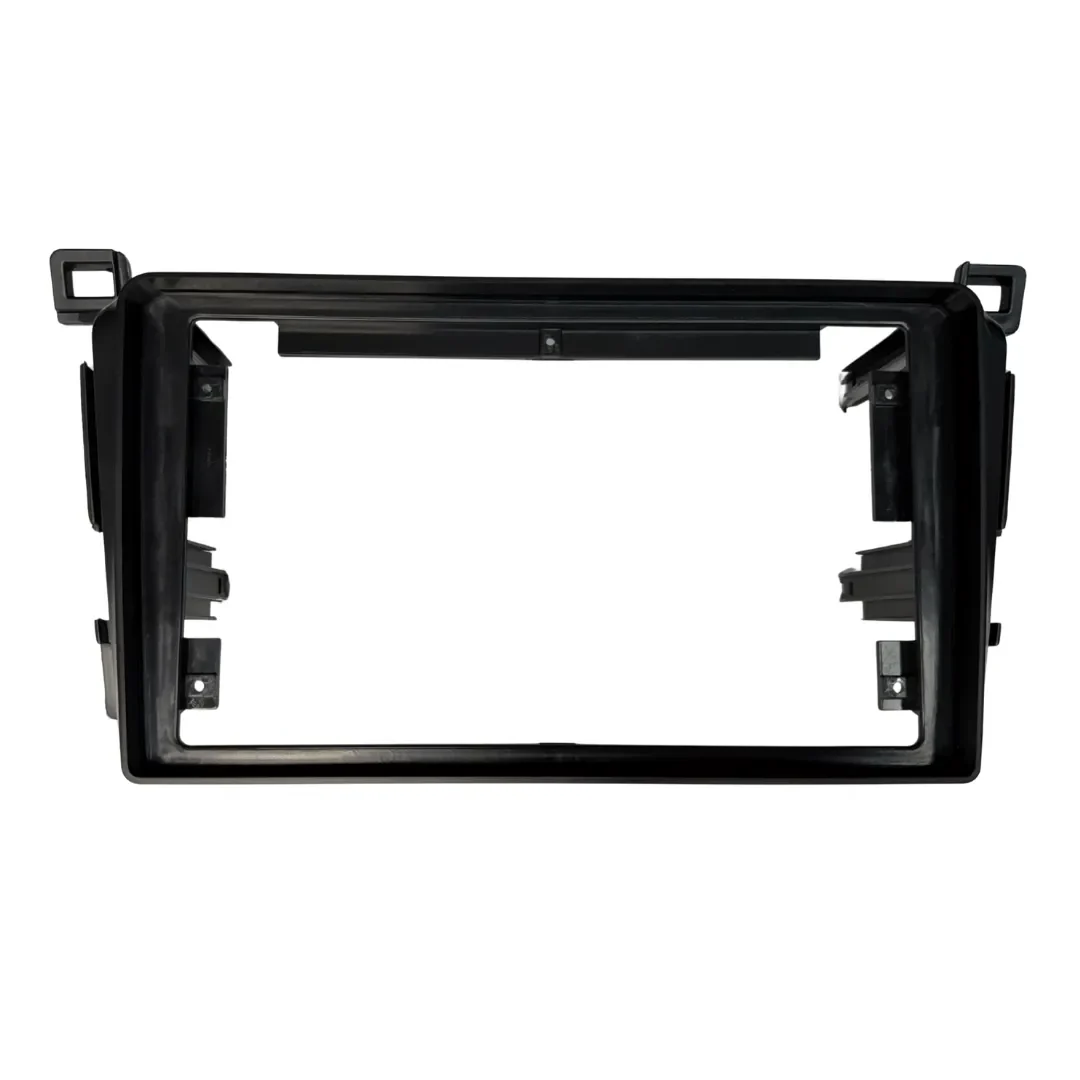

Stinger SF9-TY03 9" Trapezoid Fascia for Toyota RAV4 XA40 Series (2014-2018)

9-Inch Trapezoid Head Unit Fascia Toyota RAV4 XA40 Series 2014–2018. Covers GX, GXL, and Cruiser Variants. OEM-Style Dashboard Integration. Fascia Panel Only. Not Compatible with 2019+ RAV4.

---

Product Overview

The Stinger SF9-TY03 is a vehicle-specific 9-inch trapezoid head unit fascia designed for the Toyota RAV4 XA40 Series (fourth-generation, 2014–2018). The XA40 RAV4 features a trapezoid-shaped factory dash aperture wider at the top than the bottom which standard rectangular double DIN fascias cannot accommodate. The SF9-TY03 is precision-moulded for this trapezoid geometry across all XA40 trim levels, covering GX, GXL, and Cruiser variants for the complete 2014–2018 production run. Confirmed compatible head units include Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Aerpro AM9X.

The SF9-TY03 is not compatible with the 2019 and newer fifth-generation RAV4 (XA50 chassis), which has a completely redesigned dashboard requiring a different fascia. The SF9-TY03 is injection-moulded in UV-resistant ABS with a factory colour-matched finish (typically black or charcoal confirm the exact colour from the official Stinger SF9-TY03 product page before publishing). Wiring harness, antenna adaptor, steering wheel control interface, and reverse camera retention harness are not included and must be purchased separately.

---

Key Specifications

• Part number: SF9-TY03
• Brand: Stinger
• Product type: 9-inch trapezoid head unit fascia
• Compatible head unit format: 9-inch trapezoid only
• Finish: Factory colour match — typically black/charcoal (confirm from official product page)
• Vehicle: Toyota RAV4 XA40 Series 2014–2018
• Trim variants: GX, GXL, Cruiser
• Not compatible with: RAV4 2019+ (XA50 — different dashboard)
• Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
• Includes: Fascia panel only
• Wiring harness: Not included — sold separately
• Antenna adaptor: Not included — sold separately
• SWC interface: Not included — sold separately
• Camera retention harness: Not included — sold separately

---

Features & Benefits

• XA40-Specific Trapezoid Fitment — All Trims Precision-moulded for the XA40 RAV4 factory dashboard across GX, GXL, and Cruiser variants for the full 2014–2018 production run. The trapezoid geometry provides flush fitment that the flat-faced factory opening requires.
• 9-Inch Format — Standard Double DIN Will Not Fit The XA40 RAV4's trapezoid aperture cannot accept standard rectangular double DIN fascias without visible gaps. The SF9-TY03's trapezoid-specific design ensures secure, gap-free head unit mounting.
• Not Compatible with 2019+ XA50 RAV4 The fifth-generation RAV4 (XA50, 2019 onwards) has a completely redesigned dashboard. The SF9-TY03 covers the XA40 generation only. Confirm the chassis generation before purchasing.
• Factory Finish — UV-Resistant ABS Moulded to match the XA40 RAV4 factory dashboard finish, maintaining the RAV4's refined family SUV aesthetic after installation.
• Fascia Panel Only — Installer Flexibility Supplied as the fascia alone, allowing installers to source the correct wiring harness, SWC interface, and accessories for the specific vehicle's equipment.

---

Technical Specs

---

Compatible With / Goes Well With

Vehicle compatibility:

Not compatible with:

• Toyota RAV4 2019 onwards (XA50 — different dashboard)

Confirmed compatible 9-inch trapezoid head units:

• Alpine INE-AW4095
• Alpine INE-AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Aerpro AM9X

Recommended accessories (sold separately):

• Toyota RAV4 XA40-specific wiring harness (Toyota-to-ISO)
• Antenna adaptor for Toyota
• Steering wheel control interface
• Reverse camera retention harness (confirm if equipped)

---

Frequently Asked Questions

Does the SF9-TY03 cover all trim levels of the XA40 RAV4?

Yes — the SF9-TY03 covers GX, GXL, and Cruiser trim levels of the Toyota RAV4 XA40 Series for the complete 2014–2018 production run.

Is the SF9-TY03 compatible with 2019 or newer RAV4 models?

No — the SF9-TY03 is for the XA40 fourth-generation RAV4 (2014–2018) only. The 2019 and newer XA50 RAV4 features a completely redesigned dashboard requiring a different fascia. Confirm the chassis generation before purchasing.

Does the SF9-TY03 include wiring harnesses or installation accessories?

No — the SF9-TY03 is a fascia panel only. A Toyota RAV4 XA40-specific wiring harness, antenna adaptor, SWC interface, and reverse camera retention harness are all required separately.

Will I retain my factory steering wheel controls and reverse camera?

The SF9-TY03 fascia is a passive physical panel and does not affect factory features. Retaining steering wheel controls requires a separate SWC interface, and retaining the factory reverse camera requires an appropriate camera retention harness — both sold separately.

Is professional installation recommended?

Yes — ensuring correct wiring harness connections, SWC programming, and camera retention integration in the XA40 RAV4 benefits from professional installation by a qualified car audio installer.
