Stinger SF9-TY05 9" & 10" Trapezoid Fascia for Toyota Hilux AN120-AN130 (2015-2020)

9-Inch and 10-Inch Trapezoid Head Unit Fascia Toyota Hilux AN120-AN130 Series 2015–2020. 10-to-9-Inch Reducer Panel Included. Covers SR, SR5, Rogue, Rugged X. Standard and Wide-Cab.

---

Product Overview

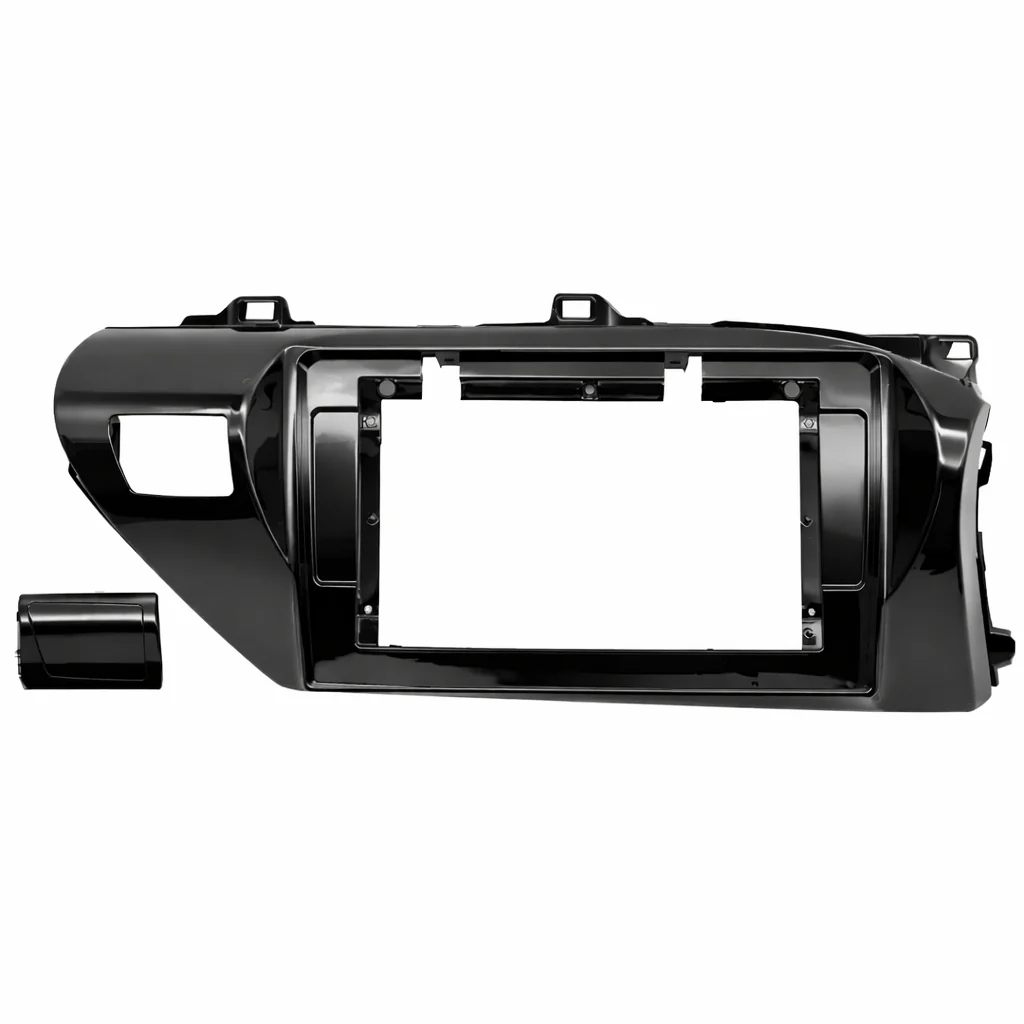

The Stinger SF9-TY05 is a vehicle-specific fascia panel designed for the Toyota Hilux AN120-AN130 Series (eighth-generation, 2015–2020). Like the SF9-TY08 (LandCruiser 200) and SF9-TY10 (Prado 150), the SF9-TY05 includes a 10-to-9-inch reducer panel in the box accommodating both screen sizes from a single fascia. For 10-inch head units the full fascia opening is used; for 9-inch head units the reducer panel is fitted to create the correct aperture. Confirmed compatible head units span both formats: Alpine INE-AW4095, INE-AX809 (9-inch) and INE-AW4095-10, INE-AX809-10 (10-inch), Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Aerpro AM9X (9-inch) and AM10X (10-inch). Coverage spans SR, SR5, Rogue, and Rugged X trim levels across both standard and wide-cab configurations for the complete 2015–2020 AN120-AN130 production run.

The SF9-TY05 is not compatible with 2021 and newer Hilux models the facelift introduced updated dashboard trim that requires verification for separate fascia compatibility. For the earlier Hilux AN10/AN20/AN30 series (2005–2015), the SF9-TY12 is the correct product. The SF9-TY05 is injection-moulded in UV-resistant ABS with a factory colour-matched finish (typically black or charcoal confirm the exact colour from the official Stinger SF9-TY05 product page before publishing). Wiring harness, antenna adaptor, steering wheel control interface, and camera retention harness are not included.

---

Key Specifications

• Part number: SF9-TY05
• Brand: Stinger
• Product type: 9-inch and 10-inch trapezoid head unit fascia
• Compatible head unit formats: 9-inch trapezoid and 10-inch trapezoid
• Reducer panel: Included (10-inch to 9-inch)
• Finish: Factory colour match — typically black/charcoal (confirm from official product page)
• Vehicle: Toyota Hilux AN120-AN130 Series 2015–2020
• Trim variants: SR, SR5, Rogue, Rugged X
• Body styles: Standard cab and wide-cab
• Not compatible with: Hilux 2021+ (facelift — different dashboard trim)
• Confirmed 9-inch head units: Alpine INE-AW4095, INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
• Confirmed 10-inch head units: Alpine INE-AW4095-10, INE-AX809-10, Aerpro AM10X
• Includes: Fascia panel and 10-to-9-inch reducer panel
• Wiring harness: Not included — sold separately
• Antenna adaptor: Not included — sold separately
• SWC interface: Not included — sold separately
• Camera retention harness: Not included — sold separately

---

Features & Benefits

• Dual 9-Inch and 10-Inch Format — Reducer Panel Included The SF9-TY05 includes the 10-to-9-inch reducer panel in the box. Use the full opening for 10-inch head units or fit the reducer for 9-inch units. No separate adapter purchase required for either format — the same future-upgrade path as the SF9-TY08 and SF9-TY10.
• AN120-AN130 Specific — 2015 to 2020 Covers the complete eighth-generation Hilux production run from 2015 to 2020 across all trim levels (SR, SR5, Rogue, Rugged X) and both standard and wide-cab body styles. Not compatible with the 2021+ facelift Hilux.
• Separate Confirmed 9-Inch and 10-Inch Head Unit Lists The SF9-TY05 is the only Hilux fascia in the range with confirmed 10-inch unit support alongside 9-inch. Both lists are explicitly confirmed in the spec table — Alpine's 10-inch variants (INE-AW4095-10, INE-AX809-10) and Aerpro's AM10X are all confirmed.
• Factory Finish — UV-Resistant ABS Moulded to match the AN120-AN130 factory dashboard finish, maintaining the Hilux's utilitarian interior appearance for commercial operators, fleet managers, and trade contractors.
• For Earlier Hilux AN10/AN20/AN30 (2005–2015), Use SF9-TY12 The SF9-TY05 covers the 8th-gen AN120-AN130 only. For the previous generation AN10/AN20/AN30 (2005–2015), the SF9-TY12 is the correct product.

---

Technical Specs

---

Compatible With / Goes Well With

Vehicle compatibility:

Not compatible with:

• Toyota Hilux 2021 and newer (facelift — confirm separate fascia)
• Toyota Hilux AN10/AN20/AN30 2005–2015 (requires SF9-TY12)

Confirmed compatible head units:

9-inch:

• Alpine INE-AW4095 / INE-AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Aerpro AM9X

10-inch:

• Alpine INE-AW4095-10 / INE-AX809-10
• Aerpro AM10X

Recommended accessories (sold separately):

• Toyota Hilux AN120/AN130-specific wiring harness (Toyota-to-ISO)
• Antenna adaptor for Toyota
• Steering wheel control interface
• Reverse camera retention harness (confirm if equipped)

---

Frequently Asked Questions

Does the SF9-TY05 work with both 9-inch and 10-inch head units?

Yes — the SF9-TY05 includes a 10-to-9-inch reducer panel. Install the reducer for 9-inch head units or omit it for 10-inch head units. Confirmed 9-inch units: Alpine INE-AW4095, INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X. Confirmed 10-inch units: Alpine INE-AW4095-10, INE-AX809-10, Aerpro AM10X.

Is the SF9-TY05 compatible with 2021 or newer Hilux models?

No — the SF9-TY05 covers the AN120-AN130 eighth-generation Hilux from 2015 to 2020 only. The 2021+ facelift Hilux features updated dashboard trim — confirm separate fascia compatibility for your specific model year.

What is the difference between the SF9-TY05 and SF9-TY12?

The SF9-TY12 covers the earlier Hilux AN10/AN20/AN30 series (2005–2015). The SF9-TY05 covers the eighth-generation AN120-AN130 (2015–2020). These are different generations with different dashboards. Confirm the chassis code and year before purchasing.

Does the SF9-TY05 include wiring harnesses or installation accessories?

No — the SF9-TY05 includes the fascia panel and reducer panel only. A Toyota Hilux-specific wiring harness, antenna adaptor, SWC interface, and camera retention harness are all required separately.

Does the SF9-TY05 cover Rugged X and Rogue trim levels?

Yes — the SF9-TY05 covers all AN120-AN130 trim levels including SR, SR5, Rogue, and Rugged X across both standard and wide-cab body styles.
