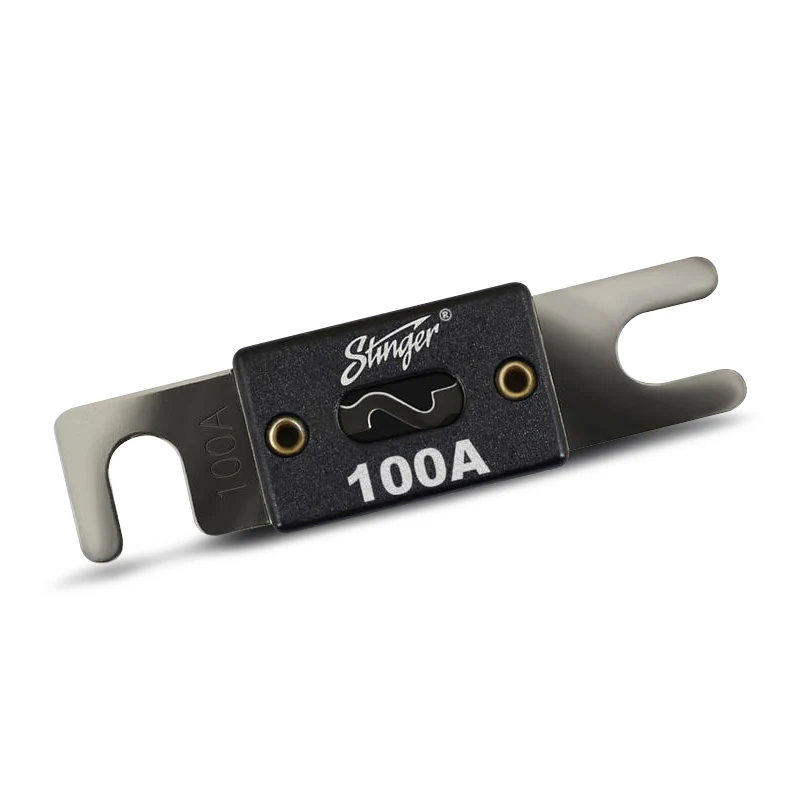

Stinger SPF52100 1 Pack Shoc-Krome 100 AMP ANL Fuse
Stinger SPF52100 100 Amp ANL Fuse with Shoc-Krome Plating
A 100A ANL fuse with Shoc-Krome plating for ultimate circuit protection and maximum current transfer suited to medium-powered car audio amplifier main power runs.
Product Overview
The Stinger SPF52100 is a 100 Amp ANL-style fuse with Shoc-Krome plating. Designed for use with Stinger ANL fuse holders, it provides ultimate circuit protection for automotive electrical installations, with high-conductivity plating to minimise resistance and maximise current transfer at the fuse connection point.
At 100A, the SPF52100 sits between the 80A (SPF5280) and 150A (SPF52150) options in the Stinger ANL fuse range a practical choice for medium-to-high powered single amplifier installations on 4 AWG or 2 AWG main power wiring.
Features & Benefits
- 100A ultimate circuit protection
- ANL fuse format
- Shoc-Krome plating for high conductivity and maximum current transfer
- Compatible with all Stinger ANL fuse holders
- Sold individually
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Number | SPF52100 |
| Brand | Stinger |
| Fuse Type | ANL Style |
| Amperage Rating | 100A |
| Plating | Shoc-Krome |
| Pack Quantity | 1 fuse |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Universal — compatible with any standard ANL fuse holder
Goes Well With:
- Stinger ANL fuse holders
- 4 AWG or 2 AWG main power wiring
- High-current distribution blocks and battery terminals
- Stinger SPF5280 80A ANL fuse (lower amperage ANL option)
- Stinger SPF52150 150A, SPF52200 200A, SPF52250 250A, and SPF52300 300A ANL fuses (higher amperage ANL options)
Frequently Asked Questions
What is an ANL fuse and when do I need a 100A rating?
ANL fuses are bolt-down high-current fuses used for main power circuit protection in automotive installations. A 100A fuse is suited to medium-to-high powered single amplifier installations where total continuous current draw is in the 80–100A range on 4 AWG or 2 AWG main power wiring. Install as close to the battery as possible.
Is this fuse sold individually or in a pack?
The SPF52100 is sold as a single fuse.
What wire gauge pairs with a 100A ANL fuse?
A 100A fuse typically pairs with 4 AWG or 2 AWG main power wiring, depending on run length and total system load. Always confirm your wiring is rated for the continuous current draw before selecting a fuse rating.
Why does fuse plating matter?
Shoc-Krome plating reduces contact resistance at the fuse terminal, ensuring maximum current transfer between the fuse and holder. Lower resistance means less voltage drop and less heat generation — important in any high-current automotive installation.
Are these fuses compatible with non-Stinger ANL fuse holders?
The SPF52100 is a standard ANL-style fuse compatible with any standard ANL fuse holder. Confirm your holder accepts standard ANL fuses before purchasing.
