Stinger UN1810 HEIGH10 10" Floating Infotainment System

Stinger UN1810 HEIGH10 10" Floating Infotainment System with Modular Remote-Mount Design

A truly universal infotainment solution CarPlay, Android Auto, 6-channel RCA, 15-band EQ, four camera inputs, and a two-piece modular body that remote-mounts when dash space is tight.

Product Overview

The Stinger UN1810 HEIGH10 is a 10-inch floating infotainment system built around a unique two-piece modular design. The screen and radio body are separate units, allowing the body to be remotely mounted away from the display making it compatible with virtually any vehicle, including those with limited or no space behind the factory radio location.

Out of the box the HEIGH10 installs in standard 2DIN applications. With the optional SE-SDIN bracket assembly it can also be fitted in 1DIN applications, and it is compatible with a wide range of vehicle-specific fascia kits. For tight mounting situations, optional extension harnesses (SE-1501 + SE-1502) are available separately for even greater mounting distance between the body and screen.

The HEIGH10 is certified Apple CarPlay and Google Android Auto, and supports Bluetooth 4.2 for hands-free calling alongside Bluetooth A2DP with aptX for high-quality wireless audio. On-board iGo navigation is available as an optional upgrade (SE-PAUZ, sold separately), enabling offline turn-by-turn navigation without requiring phone data or reception.

Features & Benefits

• Certified Apple CarPlay and Google Android Auto

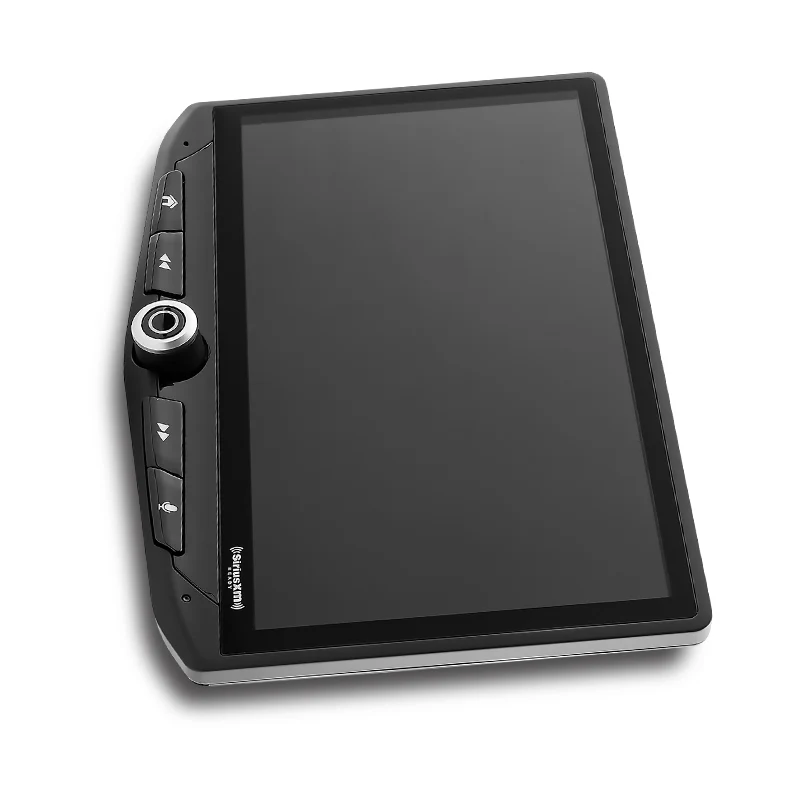

• 10-inch capacitive touchscreen — 1024 x 600 resolution, 16:9 aspect ratio
• Rotatable display to suit various dash shapes and orientations
• Two-piece modular design — body and screen can be independently mounted
• Compatible with 2DIN applications out of the box; 1DIN with optional SE-SDIN bracket
• Bluetooth 4.2 for hands-free calling; Bluetooth A2DP with aptX for wireless audio
• 6-channel 4V RCA pre-outs with dedicated adjustable subwoofer output
• Toslink (optical) audio output for external DSP processors and amplifiers
• 15-band graphic EQ with 6 user presets (25Hz–16kHz)
• Adjustable hi-pass front/rear and lo-pass subwoofer crossover with 6 user presets
• Time alignment with 6 user presets
• 4 assignable camera inputs — front, rear, trailer, caravan, blind spot, nanny cam, parking
• Auto camera activation via reverse gear, indicators, and more
• Rear camera audio input for optional RV camera microphone

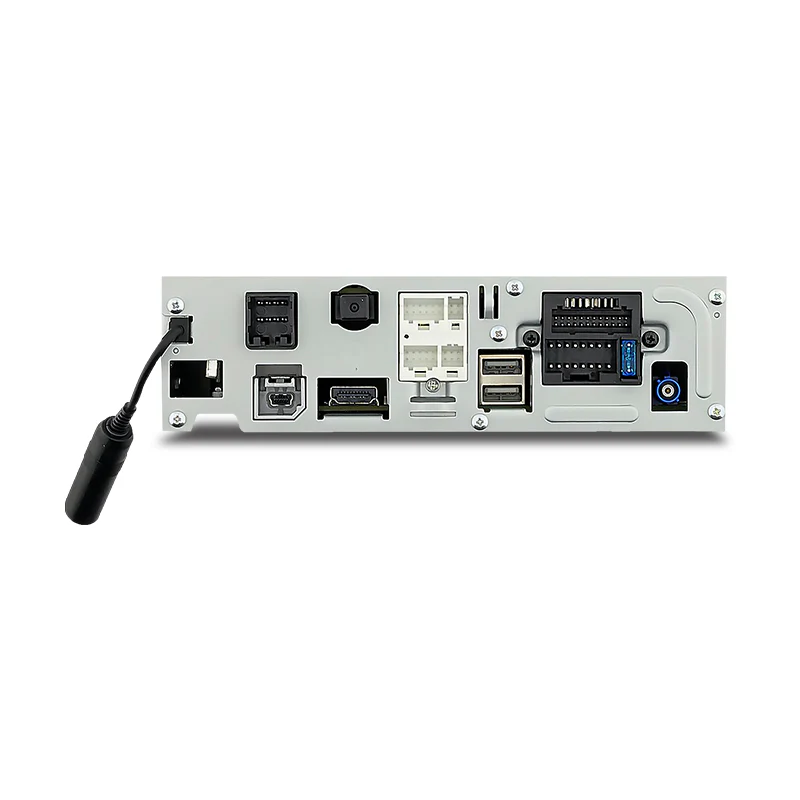

• Dual USB rear inputs (1.5A charging, MSC and MTP support, FAT32 and NTFS)
• Certified HDMI input for high-resolution video (up to 1920 x 1080p)
• High-resolution video playback (MOV, VOB, FLV, AVI, MPEG4, MKV up to 1080p)
• High-resolution audio playback (AAC, OGG, M4A, MP3, WAV, FLAC)
• AV RCA input
• Dual zone video output for rear seat entertainment
• AM/FM tuner with RDS support
• Adjustable RGB LED control buttons with presets or custom colour
• 9 preset background images plus 3 user-loadable custom presets
• Customisable pop-up menu and hotkey hardware button
• RadioPRO Advanced Vehicle Integration Kit compatible (optional accessory, select vehicles only)
• Optional iGo offline navigation (SE-PAUZ, sold separately)
• Optional extension harnesses for extended remote mounting (SE-1501 + SE-1502, sold separately)

Technical Specs

Compatible With / Goes Well With

Direct Vehicle Fit:

• Universal — compatible with 2DIN dash openings out of the box
• Compatible with a wide range of vehicle-specific fascia kits
• 1DIN applications supported with optional SE-SDIN bracket (sold separately)

Goes Well With:

• Stinger RadioPRO Advanced Vehicle Integration Kits (select vehicles, optional)
• SE-PAUZ iGo offline navigation upgrade (sold separately)
• SE-SDIN 1DIN bracket assembly (sold separately)
• SE-1501 + SE-1502 extension harnesses for remote mounting (sold separately)
• External DSP processors and amplifiers with Toslink input
• Aftermarket amplifiers (6-channel RCA pre-outs)
• Aftermarket subwoofer and amplifier (dedicated subwoofer RCA output)
• Rear seat entertainment screens (dual zone video output)
• Aftermarket cameras — front, rear, side, trailer, caravan (4 assignable inputs)

Frequently Asked Questions

What is the modular remote-mount design and why does it matter?

The HEIGH10 separates the radio body and the screen into two independent units. The screen mounts in the dash as normal, but the radio body can be mounted remotely — behind the dash, under a seat, or anywhere with available space. This makes it compatible with vehicles that have little to no depth behind the factory radio opening, where a conventional head unit simply won't fit.

Is Apple CarPlay and Android Auto wired or wireless?

The HEIGH10 supports certified Apple CarPlay and Google Android Auto via the rear USB inputs. Wireless CarPlay and Android Auto are not specified — connection is via USB cable. Confirm with F.A.E. if wireless connectivity is a requirement.

How many camera inputs does the HEIGH10 support?

The HEIGH10 has four assignable camera inputs, supporting front, rear, trailer, caravan, blind spot, nanny cam, and parking cameras. Cameras can be set to activate automatically via reverse gear, vehicle indicators, or other triggers.

Can the HEIGH10 be used for offline navigation without a phone?

Yes, with the optional SE-PAUZ iGo navigation upgrade (sold separately). The iGo on-board map database includes thousands of waypoints, lane guidance, and landmark data and operates without phone data or reception — ideal for remote area driving.

Does the HEIGH10 work with RadioPRO Advanced Vehicle Integration Kits?

Yes, on compatible vehicles. RadioPRO Advanced integration enables on-screen vehicle data including altitude, steering angle, tyre pressure, climate controls, and performance gauges. This is an optional accessory sold separately and is only available on select vehicles with compatible RadioPRO Advanced kits.
