Roadvision RBWK LED Light Bar Wiring Harness Kit 12V 24V Plug Play
Roadvision RBWK LED Light Bar Wiring Harness Kit 12V 24V Plug Play

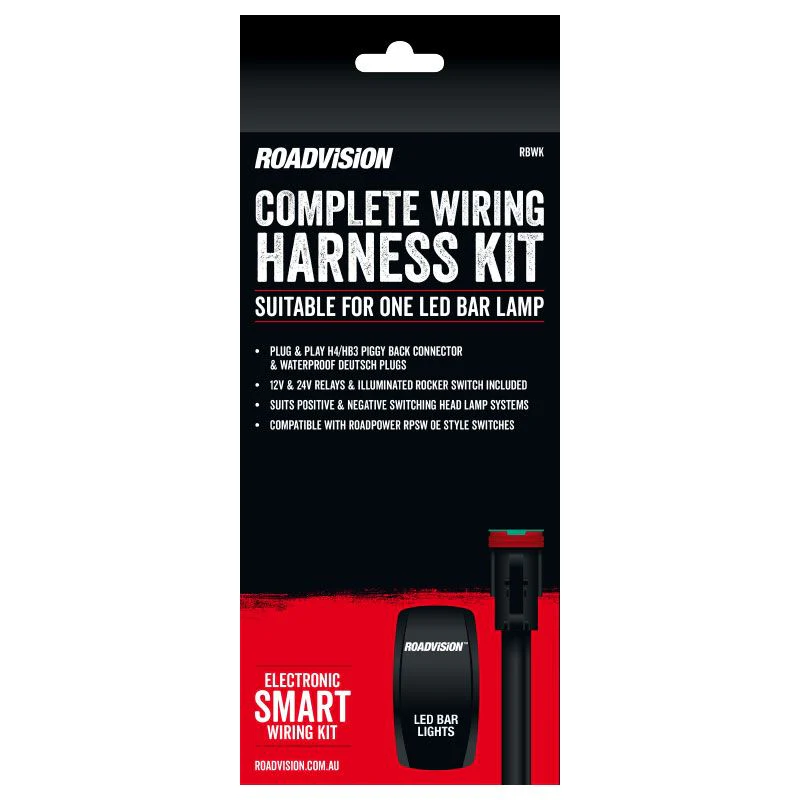

A complete second generation plug and play wiring harness kit for one LED bar light, the Roadvision RBWK features smart electronics that automatically detect positive and negative switched headlamp systems, an H4/HB3 piggy back connector, waterproof Deutsch plugs, supplied 12V and 24V relays, and an illuminated rocker switch.
Product Overview
The Roadvision RBWK is a second generation bar light wiring kit fitted with smart electronics that automatically detect positive and negative headlamp systems. This removes the guesswork from modern vehicle installations, with the simple plug and play system compatible with halogen, HID, and LED headlight bulbs without the need for complex wiring modifications.
The kit provides everything needed to wire one LED bar light, connecting to the vehicle's high beam via the H4/HB3 piggy back connector so the bar switches with the headlights. Waterproof Deutsch plugs keep the connections protected in the engine bay and behind the bar, and the kit is supplied with both 12V and 24V relays to suit either vehicle system, plus an illuminated rocker switch for in-cabin control. Fitment is a simple DIY job following the supplied wiring diagram.
Features & Benefits
Smart Auto Polarity Detection: Second generation smart electronics automatically detect positive and negative switched headlamp systems, removing the wiring modifications older kits needed on modern vehicles.
Complete Kit for One LED Bar Light: The RBWK is a complete wiring harness kit suitable for one LED bar light, covering the relay, switching, connectors, and high beam integration in a single box.
Plug and Play H4/HB3 Piggy Back Connector: The piggy back connector taps into the vehicle's H4 or HB3 headlight plug so the bar activates with high beam, with no cutting or splicing of factory wiring.
Compatible with Halogen, HID and LED Headlights: The smart electronics work with halogen, HID, and LED headlight bulbs, suiting both factory and upgraded headlight setups.
12V and 24V Relays Supplied: Both 12V and 24V relays are included in the kit, covering cars, 4WDs, and trucks without buying a separate relay.
Waterproof Deutsch Plugs: Waterproof Deutsch plugs protect the connections against moisture and dust in the engine bay and behind the bar, matching the Deutsch fittings on Roadvision bar lights.
Illuminated Rocker Switch: The supplied illuminated rocker switch provides in-cabin control of the bar light with clear visual confirmation when armed.
Simple DIY Fitment: The plug and play design and supplied wiring diagram make installation a straightforward DIY job.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | RBWK |
| Brand | Roadvision |
| Description | Second Generation Bar Light Wiring Kit |
| Suits | One LED Bar Light |
| Vehicle Voltage | 12V or 24V (Both Relays Supplied) |
| Headlamp System Compatibility | Positive and Negative Switched (Auto Detect) |
| Headlight Bulb Compatibility | Halogen, HID and LED |
| High Beam Connection | Plug and Play H4/HB3 Piggy Back Connector |
| Connectors | Waterproof Deutsch Plugs |
| Switch | Illuminated Rocker Switch |
| Cable Length | Not specified |
| Warranty | Not specified |
Compatible With
The RBWK suits one LED bar light on 12V or 24V vehicles, with both relays supplied, and works on both positive and negatively switched headlamp systems with halogen, HID, or LED bulbs. The waterproof Deutsch plugs match the fittings used across Roadvision bar lights. For vehicles where the H4/HB3 plug is not accessible, Roadvision's RHBT Series high beam patch harnesses are the recommended accessory. Confirm your headlight connector type before purchase.
Frequently Asked Questions
What is included in the RBWK wiring kit?
The RBWK is a complete wiring harness kit for one LED bar light, including the harness with waterproof Deutsch plugs, an H4/HB3 piggy back connector, 12V and 24V relays, and an illuminated rocker switch.
Will the RBWK work on my vehicle's headlight system?
Yes, in most cases. The second generation smart electronics automatically detect positive and negative switched headlamp systems and are compatible with halogen, HID, and LED bulbs, without complex wiring modifications.
Is the RBWK compatible with 24V trucks?
Yes. The kit suits both 12V and 24V vehicles and is supplied with both a 12V and a 24V relay.
Can the RBWK wire up two light bars?
The RBWK is specified as a complete kit for one LED bar light. For additional bars, use an additional kit.
What if my vehicle does not have an accessible H4 or HB3 headlight plug?
Roadvision's RHBT Series high beam patch harnesses are the recommended accessory for vehicles where the H4/HB3 piggy back connector does not suit the factory headlight wiring.
